DYP ANSI Code

DYP ANSI is a G7 lamp with a G9.5b base operating at 600 watts and 125 volts. It has a color temperature of 3200 Kelvin. It has a Vycor UVS finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DYP lamps.

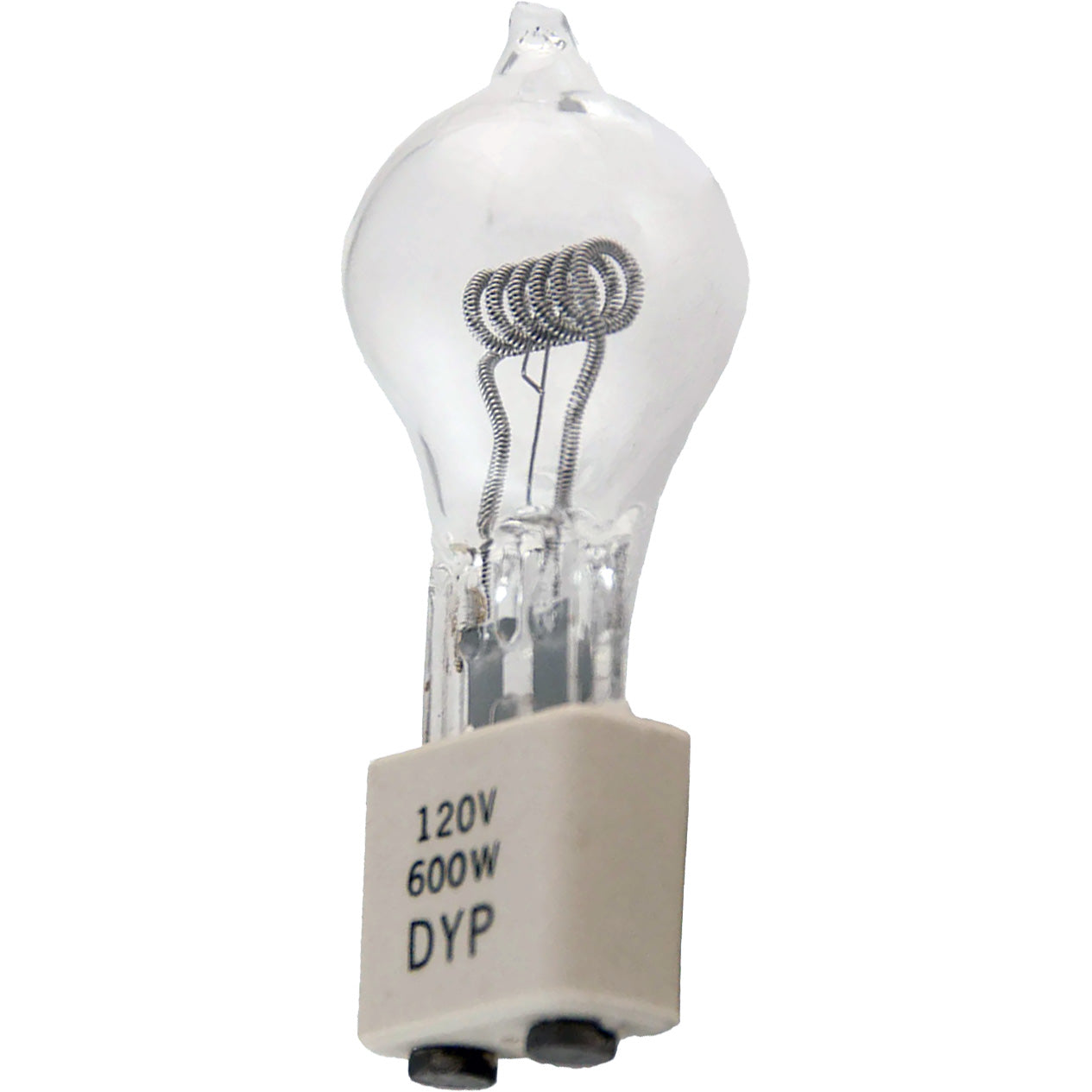

DYP Photograph

DYP

Electrical Specifications

Amps4.8
Volts125
Watts600

Photometrics

Candlepower1400
Color Temperature3200
Light Center Length (LCL)1
Lumens17000

Physical Characteristics

BaseG9.5b
Bulb ShapeG7
FilamentCC-6s
FinishVycor UVS
Max Overall Length (MOL)2 1/4

Operating Characteristics

Burn PositionHorizontal
Life Hours75

General Information
Lamp CodeDYP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

G7 Shape

G7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeG
Shape ClassificationGlobe

G9.5b Base

G9.5b

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDYPDYP
Microlites120-600-32
Canimpex120-600-32

Equipment Used In

BrandModelType
3M 26-AKR
3M Model 66 (serials over 66AG015735H)
3M Model 66-AG
3M Model 66-AG (serials over 015735H)

DYP may also be listed as:
01820 EIKO01820 UPC01820 WIKO01830 EIKO
01830 UPC01830 WIKO031293018205 EIKO031293018304 EIKO
048777115893 UPC1000248 USHIO3129301820 WIKO32071 GENERAL-ELECTRIC
3481 3M5454554545 OSRAM54545 SYLVANIA
54545/DYP SYLVANIA5825-2 GUERRA600-Q-G7-TP SYLVANIA600WATT-QUARTZ-G7-TP SYLVANIA
78-8454-3481 3M78-8454-3481-6 3MBW-DYPDYP ANSI
DYP ASADYP BULB-DIRECTDYP EIKODYP GENERAL-ELECTRIC
DYP GUERRADYP HIDSIDYP INTERLIGHTDYP KONDO
DYP LAMPTECHDYP MICROLAMPDYP OSRAMDYP SYLVANIA
DYP USHIODYP WESTINGHOUSEDYP WIKODYP-120 ANSI
DYP-120 ASADYP-120 VOLT ANSIDYP-120 VOLT ASADYP-120V ANSI
DYP-120V ASADYP-120V-600WDYP-120V-600W ANSIDYP-120V-600W ASA
DYP-120V-600W-2-BUTTON-G7-CC6-CLEAR-17000L-3200K-75H-HOR-2-1/4MOL-1LCL-Q-OVERHEAD-PROJECTORDYP-120V-600W-G9.5 USHIODYP-120V/120V/600W/G9.5-BUTTON ANSIDYP-120V/120V/600W/G9.5B ANSI
DYP-125 ANSIDYP-125 ASADYP-125V ANSIDYP-125V ASA
DYP-125V-600W ANSIDYP-125V-600W ASADYP-125V/125V/600W/G9.5-BUTTON ANSIDYP-125V/125V/600W/G9.5B ANSI
DYP-125VOLT ANSIDYP-125VOLT ASADYP-5 ANSIDYP-5 ASA
DYP-5 BULB-DIRECTDYP-5 EIKODYP-5 INTERLIGHTDYP-5 WIKO
DYP-600W-120V-G9.5 USHIODYP-99DYP-DLDYP-ES
DYP-LDYP-LLDYP-LONG-LIFEDYP-X
DYP-XPDYP-XTRADYP/120V GENERAL-ELECTRICDYP/120V-600W-G6 LAMPTECH
DYP/120V/600W PHILIPSDYP/120V/600W/G9.5-BUTTON ANSIDYP/125V/600W/G9.5-BUTTON ANSIDYP/G9.5 USHIO
DYP120V600W/DYP-120V-600W PHILIPSH/120V/600W/G9.5-BUTTON/G7/CC6/75HH/120V/600W/G9.5-BUTTON/G7/CC6/75H/DYP-120VH/125V/600W/G9.5-BUTTON/G7/CC6/75H
H/125V/600W/G9.5-BUTTON/G7/CC6/75H/DYP-125VJCD-120 VOLT-600WATT-M USHIOJCD-120V-600-M USHIOJCD/120V/600W/M
JCD120-600M USHIOJCD120-600WM USHIOJCD120V-600WM USHIOJCD120V-600WM/DYP USHIO
JCD120V600WM-CC6-75HR USHIOJCD120V600WM-CC6-75HR/120V/600W/G9.5 USHIOJCD120V600WM-CC6-75HR/120V/600W/G9.5/DYP USHIOJCD120V600WM-CC6-75HR/DYP USHIO
JCD120V600WM-G9.5 USHIOJCD120V600WM/G9.5-BUTTON/75H USHIOMODEL-66 3MPH600G7/QB3 GENERAL-ELECTRIC
SPOT-54545SPQ600G7G9.5-BUTTONCC6120VSPQ600G7G9.5-BUTTONCC6120V-DYP-120VSPQ600G7G9.5-BUTTONCC6125V
SPQ600G7G9.5-BUTTONCC6125V-DYP-125VSPQ600G7G9.5-BUTTONCL120VSPQ600G7G9.5-BUTTONCL120V-DYP-120VSPQ600G7G9.5-BUTTONCL125V
SPQ600G7G9.5-BUTTONCL125V-DYP-125VWE-DYP
