DYT ANSI Code

DYT ANSI is a T3 lamp with a G5.3 base operating at 80 watts and 19 volts. It has a color temperature of 3350 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DYT lamps.

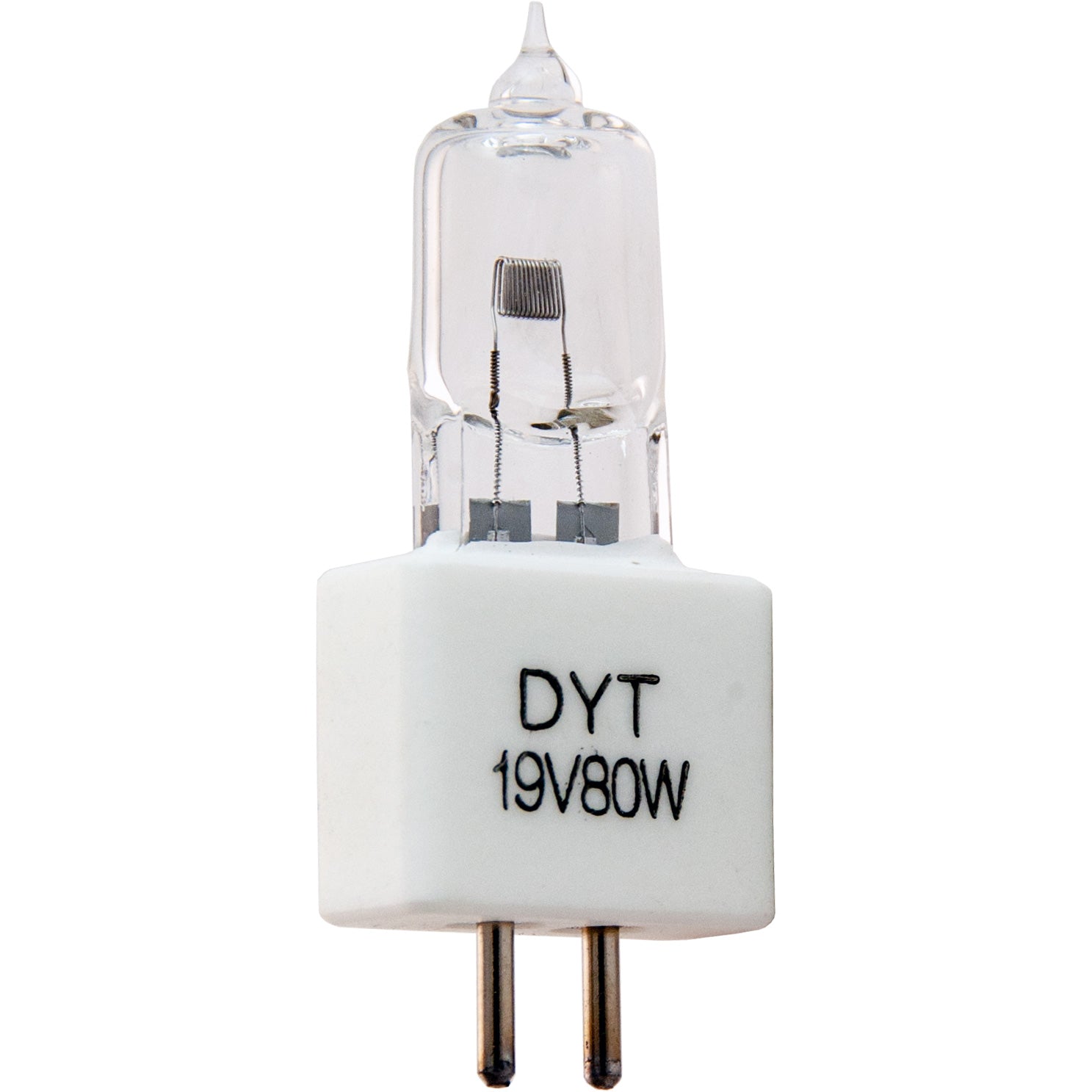

DYT Photograph

DYT

Electrical Specifications

Amps4.21
Volts19
Watts80

Photometrics

Candlepower210
Color Temperature3350
Light Center Length (LCL)1 1/16
Lumens2600

Physical Characteristics

BaseG5.3
Bulb ShapeT3
FilamentCC-6
FinishClear
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionBDTH
Life Hours25

General Information
Lamp CodeDYT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3 Shape

T3
Diameter Designation3/8"
Glass Diameter 3/8" (0.375")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites19-080-23
Canimpex19-080-23

Equipment Used In

BrandModelType
Dietzen 4311 Microfilm
Information Handling Services VS MF Satellite II
