DZG ANSI Code
DZG ANSI is a T6 lamp with a DCMR Special H base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DZG lamps.

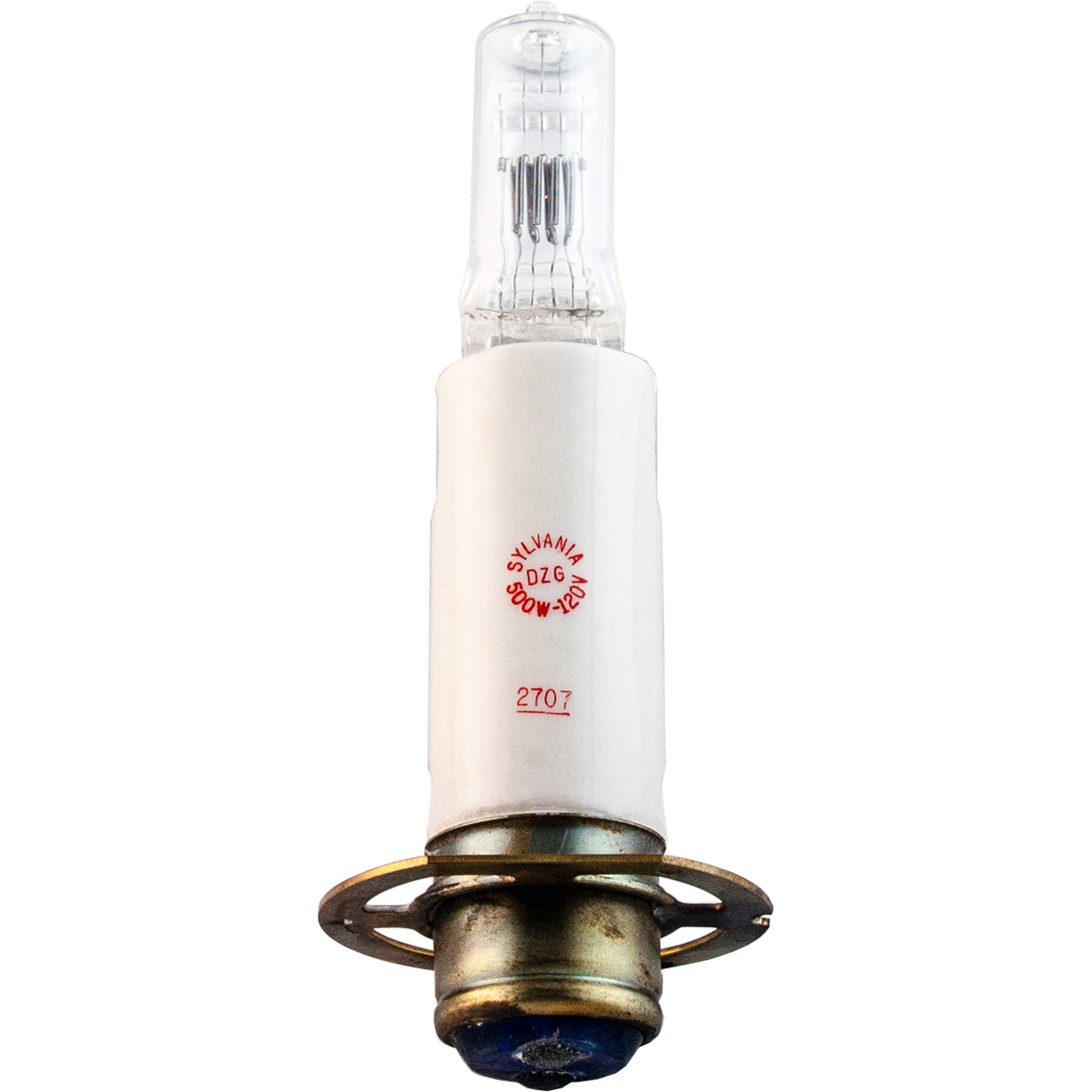

DZG Photograph |
 |
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 120 |
| Watts | 500 |
Photometrics | |
| Candlepower | 88 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 3 1/2 |
| Lumens | 11000 |
Physical Characteristics | |
| Base | DCMR Special H |
|---|---|
| Bulb Shape | T6 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 5 49/71 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 100 |
General Information | |
| Lamp Code | DZG |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T6 Shape | |
 | |
| Diameter Designation | 6/8" |
|---|---|
| Glass Diameter | 3/4" (0.75") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | DZG | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Ektagraphic CT-500 | |
DZG may also be listed as: | |||
| 120-500-G | 54940-0 SYLVANIA | DZG ANSI | DZG ASA |
| DZG INTERLIGHT | DZG SYLVANIA | DZG-120 VOLT ANSI | DZG-120 VOLT ASA |
| DZG-120V ANSI | DZG-120V ASA | DZG-120V-500W | DZG-120V-500W ANSI |
| DZG-120V-500W ASA | DZG-120V-500W-G17Q-T6-C13D-CLEAR-3200CP-3200K-50H-BDTH-3-1/4MOL-1-9/16LCL-Q-TV-FILM-CHAIN-PROJECTOR-PROXIMITY-REFLECTOR | DZG-120V/120V/500W ANSI | H/120V/500W/DCMR-SPECIAL-H/T6/C13D/100H |
| H/120V/500W/DCMR-SPECIAL-H/T6/C13D/100H/DZG | SPQ500T6DCMR-SPECIAL-HC13D120V | SPQ500T6DCMR-SPECIAL-HC13D120V-DZG | SPQ500T6DCMR-SPECIAL-HCL120V |
| SPQ500T6DCMR-SPECIAL-HCL120V-DZG | |||
