DZN ANSI Code

DZN ANSI is a MR13D lamp with a GY7.9 base operating at 150 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Dichroic finish. The average rated life is 18 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DZN lamps.

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature3350
Light Center Length (LCL)5/8

Physical Characteristics

BaseGY7.9
Bulb ShapeMR13D
FilamentCC-6
FinishDichroic
Max Overall Length (MOL)2

Operating Characteristics

Burn PositionHorizontal
Life Hours18

General Information
Lamp CodeDZN
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR13D Shape

MR13D
Diameter Designation13/8"
Glass Diameter 1 5/8" (1.625")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

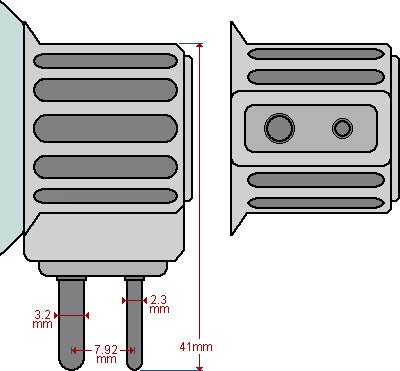

GY7.9 Base

GY7.9

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDZN150W, 120V
EikoDZN (WIKO)
Microlites120-150-99NR
Canimpex120-150-99NR

DZN may also be listed as:
54818 SYLVANIADZN ANSIDZN ASADZN INTERLIGHT
DZN SYLVANIADZN-120 VOLT ANSIDZN-120 VOLT ASADZN-120V ANSI
DZN-120V ASADZN-120V-150WDZN-120V-150W ANSIDZN-120V-150W ASA
DZN-120V-150W-G7.9-MR-14-CC-6-OPEN-FRONT-3350K-18H-5/8LCL-Q-PROJECTOR-DICHROIC-REFLECTOR-FOCAL-DIST.-3.085DZN-120V-150W-G7.9-MR14-CC6-OPEN-FRONT-3350K-18H-5/8LCL-Q-PROJECTOR-DICHROIC-REFLECTOR-FOCAL-DIST-3.085DZN-120V/120V/150W/GY7.9/MR13D ANSIDZN/120V/150W/GY7.9/MR13D ANSI
H/120V/150W/G7.9/MR13D/78.4MMWDH/120V/150W/G7.9/MR13D/78.4MMWD/18HH/120V/150W/G7.9/MR13D/78MMWDH/120V/150W/G7.9/MR13D/78MMWD/18H
H/120V/150W/GY7.9/MR13D/78.4MMWDH/120V/150W/GY7.9/MR13D/78.4MMWD/18HH/120V/150W/GY7.9/MR13D/78MMWDH/120V/150W/GY7.9/MR13D/78MMWD/18H
H/120V/150W/GY7.9/MR13D/CC6/18HH/120V/150W/GY7.9/MR13D/CC6/18H/DZNSPQ150MR13DGY7.9CC6-120VSPQ150MR13DGY7.9CC6120V-DZN
SPQ150MR13DGY7.9CL-120VSPQ150MR13DGY7.9CL120V-DZN
