DZP ANSI Code

DZP ANSI is a MR18D lamp with a GX7.9 base operating at 50 watts and 30 volts. It has a Dichroic finish. The average rated life is 150 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DZP lamps.

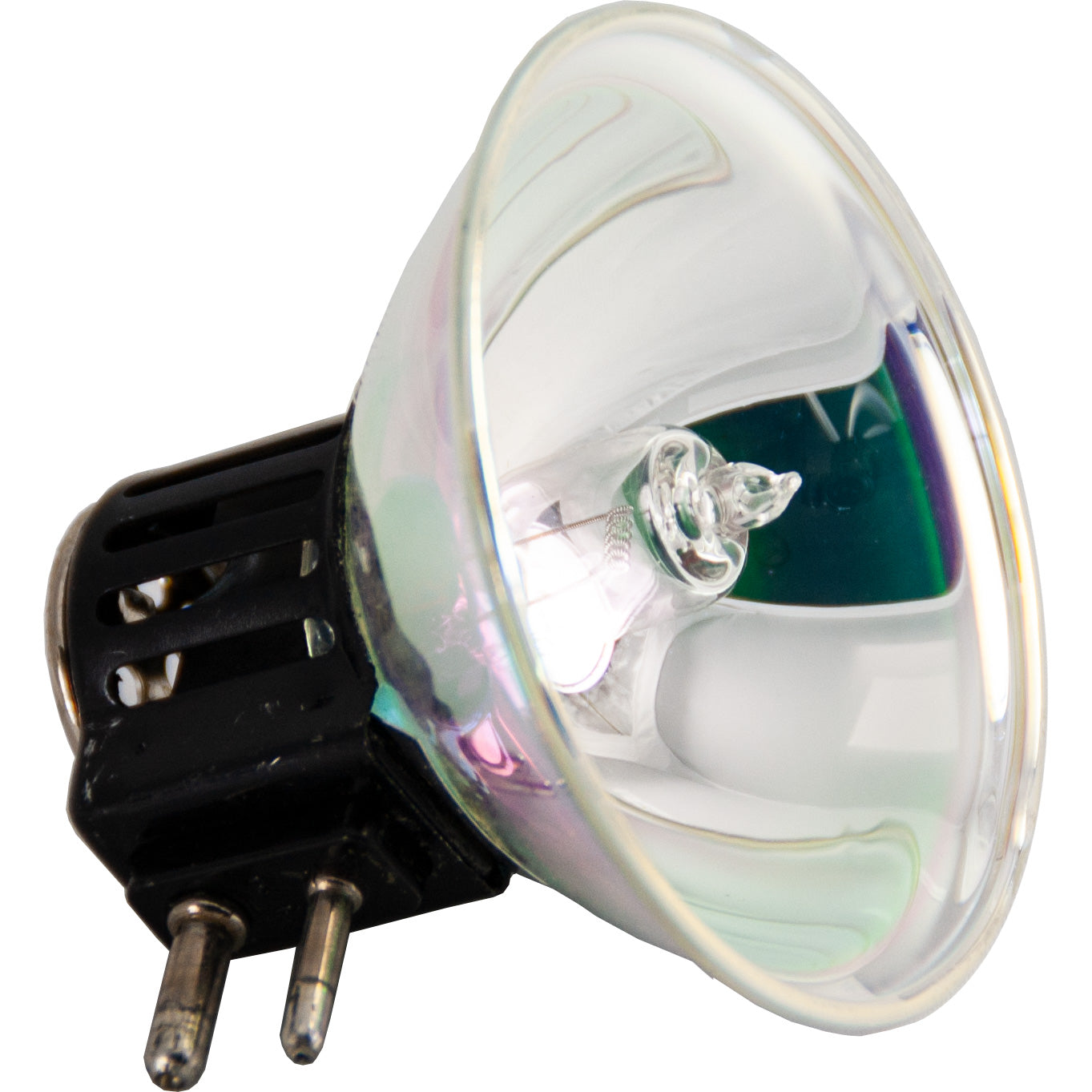

DZP Photograph

DZP

Electrical Specifications

Amps1.67
Volts30
Watts50

Photometrics

Light Center Length (LCL)5/8

Physical Characteristics

BaseGX7.9
Bulb ShapeMR18D
FilamentCC-6
FinishDichroic
Max Overall Length (MOL)2" (50.8mm)

Operating Characteristics

Burn PositionHorizontal
Life Hours150

General Information
Lamp CodeDZP
Code TypeANSI
Specification ReferenceANSI-SR24F2002

MR18D Shape

MR18D
Diameter Designation18/8"
Glass Diameter 2 1/4" (2.25")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX7.9 Base

GX7.9

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDZP50W, 30V

DZP may also be listed as:
54950 SYLVANIADZP ANSIDZP ASADZP BULB-DIRECT
DZP INTERLIGHTDZP SYLVANIADZP WIKODZP-30V ANSI
DZP-30V ASADZP-30V-50WDZP-30V-50W ANSIDZP-30V-50W ASA
DZP-30V-50W-G7.9-MR-16-CC-6-OPEN-FRONT-150H-5/8LCL-Q-PROJECTOR-DICHROIC-REFLECTOR-FOCAL-DIST.-2.84DZP-30V-50W-G7.9-MR16-CC6-OPEN-FRONT-150H-5/8LCL-Q-PROJECTOR-DICHROIC-REFLECTOR-FOCAL-DIST-2.84DZP-30V/30V/50W/GX7.9/MR18D ANSIDZP-30VOLT ANSI
DZP-30VOLT ASADZP/30V/50W/GX7.9/MR18D ANSIH/30V/50W/GX7.9/MR18D/CC6/150HH/30V/50W/GX7.9/MR18D/CC6/150H/DZP
SPQ50MR18DGX7.9CC6-30VSPQ50MR18DGX7.9CC630V-DZPSPQ50MR18DGX7.9CL-30VSPQ50MR18DGX7.9CL30V-DZP
