DZZ ANSI Code

DZZ ANSI is a T3.5 lamp with a GZ9.5 base operating at 100 watts and 12 volts. It has a color temperature of 3050 Kelvin. It has a Clear finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DZZ lamps.

Electrical Specifications

Amps8.33
Volts12
Watts100

Photometrics

Candlepower210
Color Temperature3050
Light Center Length (LCL)1 1/16
Lumens2700

Physical Characteristics

BaseGZ9.5
Bulb ShapeT3.5
FilamentFC-6
FinishClear
Max Overall Length (MOL)2 1/4

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours1000

General Information
Lamp CodeDZZ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T3.5 Shape

T3.5
Diameter Designation3.5/8"
Glass Diameter 7/16" (0.4375")
Shape CodeT
Shape ClassificationTubular

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

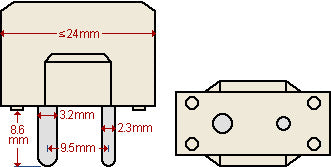

GZ9.5 Base

GZ9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Green Energy Lighting (GELCO)62008-GELDDJ/DZZ
Eiko01230DDJ-DZZ (WIKO)

Equipment Used In

BrandModelType
Abbott 1366-24 Analyzer Spectrum 2 Fluorometer
NCR Corp. 458-500 Microfilm

DZZ may also be listed as:
2/SPECTRUM82790 IWASAKIDZZ ABBOTTDZZ ANSI
DZZ ASADZZ BULB-DIRECTDZZ IWASAKIDZZ MICROLAMP
DZZ NORELCODZZ WIKODZZ-12 ANSIDZZ-12 ASA
DZZ-12V ANSIDZZ-12V ASADZZ-12V-100W ANSIDZZ-12V-100W ASA
DZZ-12V/12V/100W/GZ9.5 ANSIDZZ-12VOLT ANSIDZZ-12VOLT ASADZZ-DDJ ANSI
DZZ-DDJ ASADZZ-PDZZ-P LAMPTECHDZZ-P/12V-100W-BIPIN LAMPTECH
DZZ/12V/100W ABBOTTDZZ/12V/100W NORELCODZZ/12V/100W/GZ9.5 ANSIH/12V/100W/GZ9.5/T3.5/FC6/1000H
H/12V/100W/GZ9.5/T3.5/FC6/1000H/DZZJC-12V-100W-1000-B-1JC-12V-100W-1000H-B-1JC-12VOLT-100WATT-1000HOUR-B-1
JC12-100-1000B1JC12-100-1000HB1JC12-100W1000B1JC12-100W1000HB1
JC12V-100W10HB1JC12V100-1000B1JC12V100-1000HB1JC12V100W10H/B IWASAKI
JC12V100W10H/B-DZZ IWASAKIM-46 THORNSPECTRUM-2 ABBOTTSPECTRUM-2 BULB-DIRECT
SPECTRUM-2/12V/100W ABBOTTSPECTRUM/2SPQ100T3.5GZ9.5FC612V-DZZ
