EAD ANSI Code

EAD ANSI is a T6.5 lamp with a BA15d base operating at 60 watts and 130 volts. It has a color temperature of 2850 Kelvin. It has a Clear finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EAD lamps.

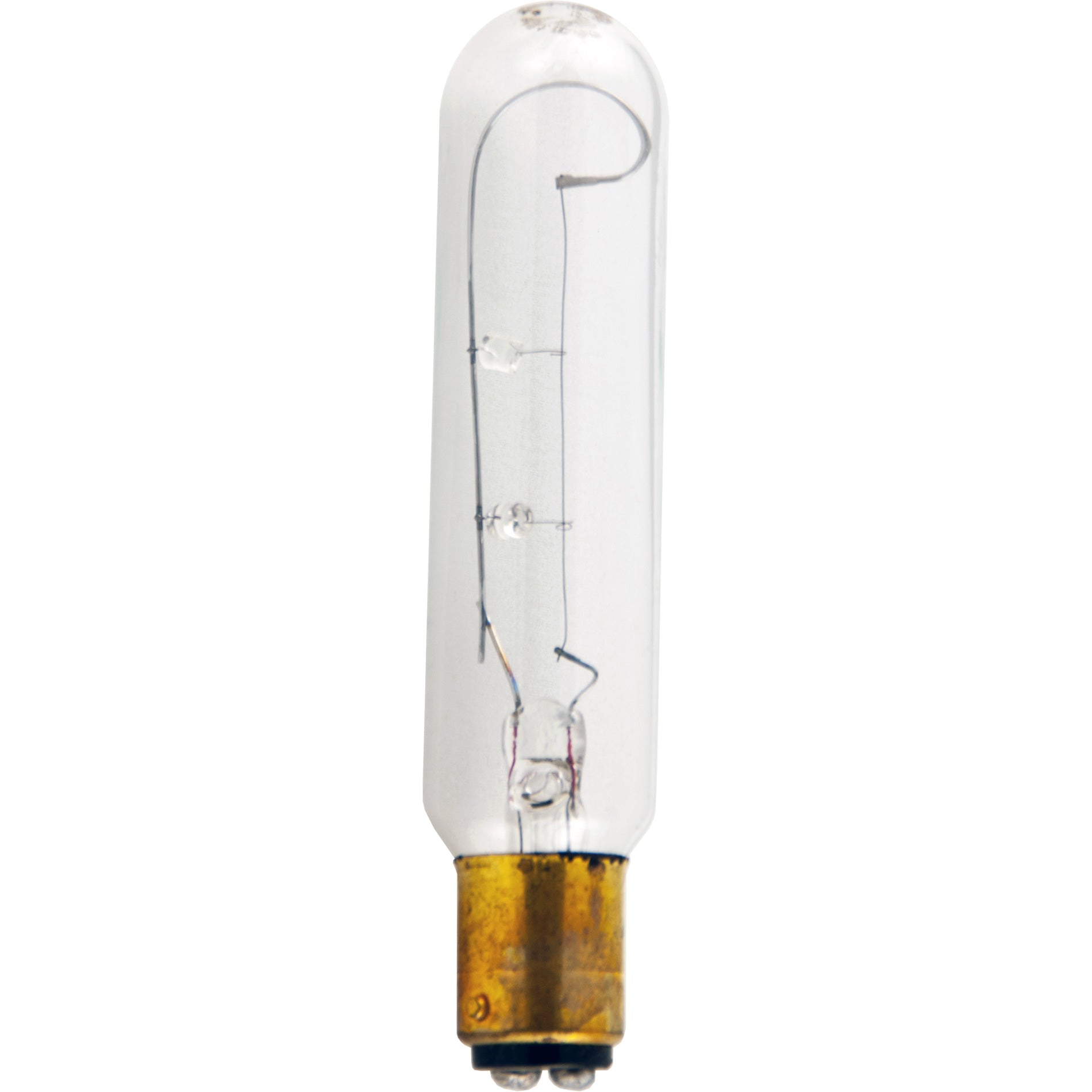

EAD Photograph

EAD

Electrical Specifications

Amps0.462
Volts130
Watts60

Photometrics

Candlepower60
Color Temperature2850
Light Center Length (LCL)2 3/16
Lumens750

Physical Characteristics

BaseBA15d
Bulb ShapeT6.5
FilamentC-8
FinishClear
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionVBD
Life Hours100

General Information
Lamp CodeEAD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6.5 Shape

T6.5
Diameter Designation6.5/8"
Glass Diameter 13/16" (0.8125")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-060-03
Canimpex120-060-03
