EAJ ANSI Code

EAJ ANSI is a T6.5 lamp with a BA15d base operating at 25 / 35 watts and 12 volts. It has a Clear finish. The average rated life is 50 & 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EAJ lamps.

Electrical Specifications

Amps2.08 / 2.92
Volts12
Watts25 / 35

Photometrics

Candlepower28
Light Center Length (LCL)1/16 & 1 49
Lumens420 & 620

Physical Characteristics

BaseBA15d
Bulb ShapeT6.5
Filament2C-6
FinishClear
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionAny
Life Hours50 & 50

General Information
Lamp CodeEAJ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6.5 Shape

T6.5
Diameter Designation6.5/8"
Glass Diameter 13/16" (0.8125")
Shape CodeT
Shape ClassificationTubular

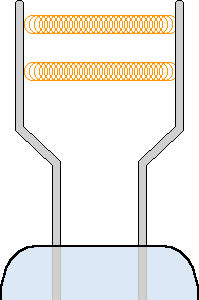

2C-6 Filament

2C-6
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko01930EAJ (WIKO)
Microlites12-035-03J
Canimpex12-035-03J

EAJ may also be listed as:
193001930 EIKO01930 UPC031293019301 EIKO
048777116739 UPC1000260 BLV1000260 USHIO35/25/12 GENERAL-ELECTRIC
35/25/12V GENERAL-ELECTRIC35/25W12 GENERAL-ELECTRIC35/25W12V GENERAL-ELECTRIC35WATT-25WATT-12VOLT GENERAL-ELECTRIC
BA15D-35W-EAJ-12V-T20MM-101.6MMMOL-47.6MMLCL-C-8-650L-300H-ANY-1000260 BLVBA15D-35W-EAJ-12V-T20MM-101.6MMMOL-47.6MMLCL-C-8-650L-300H-ANY-1000260 USHIOEAJEAJ ANSI
EAJ ASAEAJ BULB-DIRECTEAJ EIKOEAJ GENERAL-ELECTRIC
EAJ HIDSIEAJ INTERLIGHTEAJ LAMPTECHEAJ MICROLAMP
EAJ USHIOEAJ WESTINGHOUSEEAJ-12V-25WEAJ-12V-25W ANSI
EAJ-12V-25W ASAEAJ-12V-35WEAJ-12V-35W ANSIEAJ-12V-35W ASA
EAJ-12V-35W-BA15D USHIOEAJ-12V-35W-BA15D-T6-2C6-CLEAR-620L-300H-ANY-4MOL-1-49/64LCL-I-FLASHTUBE-MODELLINGEAJ-12V-T20MM-101.6MMMOL-47.6MMLCL-C-8-650L-300H-ANY-1000260 BLVEAJ-12V-T20MM-101.6MMMOL-47.6MMLCL-C-8-650L-300H-ANY-1000260 USHIO
EAJ-12V/12V/25W/35W/BA15D ANSIEAJ-12VOLT-25WATT ANSIEAJ-12VOLT-25WATT ASAEAJ-12VOLT-35WATT ANSI
EAJ-12VOLT-35WATT ASAEAJ-25WATT ANSIEAJ-25WATT ASAEAJ-35W
EAJ-35W-12V-BA15D USHIOEAJ-35WATT ANSIEAJ-35WATT ASAEAJ/12V GENERAL-ELECTRIC
EAJ/12V/25W/35W ANSIEAJ/12V/25W/35W/BA15D ANSIEAJ/12V25EAJ/12V25 ANSI
EAJ/12V25 ASAEAJ/12V35EAJ/12V35 ANSIEAJ/12V35 ASA
EAJ/25EAJ/25 ANSIEAJ/25 ASAEAJ/25W
EAJ/25W ANSIEAJ/25W ASAEAJ/35EAJ/35 ANSI
EAJ/35 ASAEAJ/35W ANSIEAJ/35W ASAEAJ/35W-12V-DC-BAY-C-6 LAMPTECH
EAJ12/25EAJ12/25 ANSIEAJ12/25 ASAEAJ12/25W
EAJ12/25W ANSIEAJ12/25W ASAEAJ12/35EAJ12/35 ANSI
EAJ12/35 ASAEAJ12/35WEAJ12/35W ANSIEAJ12/35W ASA
EAJ2-12V-25WEAJ2-12V-25W ANSIEAJ2-12V-25W-BA15D-T6-C6-CLEAR-420L-300H-ANY-4MOL-1-11/16LCL-I-FLASHTUBE-MODELLINGI/12V/25W/35W/BA15D/T6.5/C6/C6/50/50H
I/12V/25W/35W/BA15D/T6.5/C6/C6/50/50H/EAJI/12V/25W/35W/BA15D/T6.5/CL/50/50HI/12V/25W/35W/BA15D/T6.5/CL/50/50H/EAJINC-12V-35W-C8-300HR USHIO
INC-12V-35W-C8-300HR/12V/35W/BA15D USHIOINC-12V-35W-C8-300HR/12V/35W/BA15D/EAJ USHIOINC-12V-35W-C8-300HR/EAJ USHIOPH-35WATT-25WATT-12VOLT GENERAL-ELECTRIC
PH35/25/12 GENERAL-ELECTRICPH35/25/12V GENERAL-ELECTRICPH35/25W12 GENERAL-ELECTRICPH35/25W12V GENERAL-ELECTRIC
PH35W25/12 GENERAL-ELECTRICPH35W25/12V GENERAL-ELECTRICPH35W25W12 GENERAL-ELECTRICPH35W25W12V GENERAL-ELECTRIC
SP25W/35WT6.5BA15DC6/C6-12VSP25W/35WT6.5BA15DC6/C612V-EAJSP25W/35WT6.5BA15DC6/CL-12VSP25W/35WT6.5BA15DC6/CL12V-EAJ
SP25W/35WT6.5DCC6/C6-12VSP25W/35WT6.5DCC6/C612V-EAJSP25W/35WT6.5DCC6/CL-12VSP25W/35WT6.5DCC6/CL12V-EAJ
SP35-25T6.5DCCL12V
