EBV ANSI Code

EBV ANSI is a PS25 lamp with a E26 base operating at 500 watts and 118 volts. It has a color temperature of 3400 Kelvin. It has a Pearl finish. The average rated life is 6 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EBV lamps.

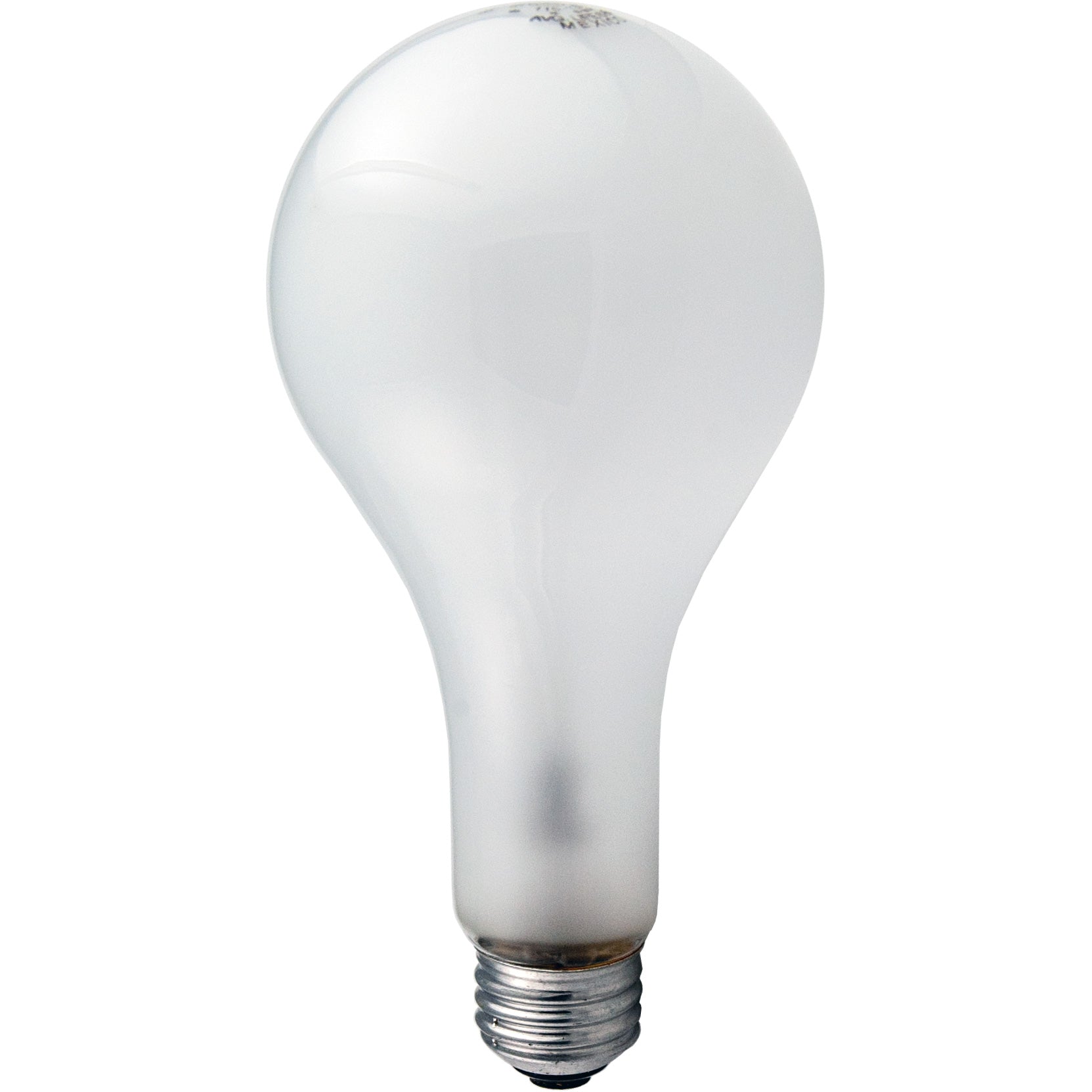

EBV Photograph

EBV

Electrical Specifications

Amps4.35
Volts118
Watts500

Photometrics

Beam SpreadOmnidirectional
Candlepower1400
Color Temperature3400
Lumens17000

Physical Characteristics

BaseE26
Bulb ShapePS25
FilamentC-9
FinishPearl
Max Overall Length (MOL)6 15/16

Operating Characteristics

Burn PositionAny
Life Hours6

General Information
Lamp CodeEBV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

PS25 Shape

PS25
Diameter Designation25/8"
Glass Diameter 3 1/8" (3.125")
Shape CodePS
Shape ClassificationPear Straight

C-9 Filament

C-9
Coil TypeC - Single Coil

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko01950EBV
General Electric40566EBV
Imported Lamp CodeP1/2
Imported Lamp CodePF208E
Osram Sylvania11558EBV 118V
Ushio1000263EBV, PS-25 NO. 2
Osram Sylvania11519EBV
Green Energy Lighting (GELCO)60504-WBEBV
Norman LampsEBVEBV
Standard Products12081PS-25/500W/120V/MED/E26/EBV
Microlites120-500-48V
Canimpex120-500-48V

Equipment Used In

BrandModelType
Eastman Kodak MRG-1
