EBW ANSI Code

EBW ANSI is a PS25 lamp with a E26 base operating at 500 watts and 120 volts. It has a color temperature of 4800 Kelvin. It has a Daylight Pearl finish. The average rated life is 6 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EBW lamps.

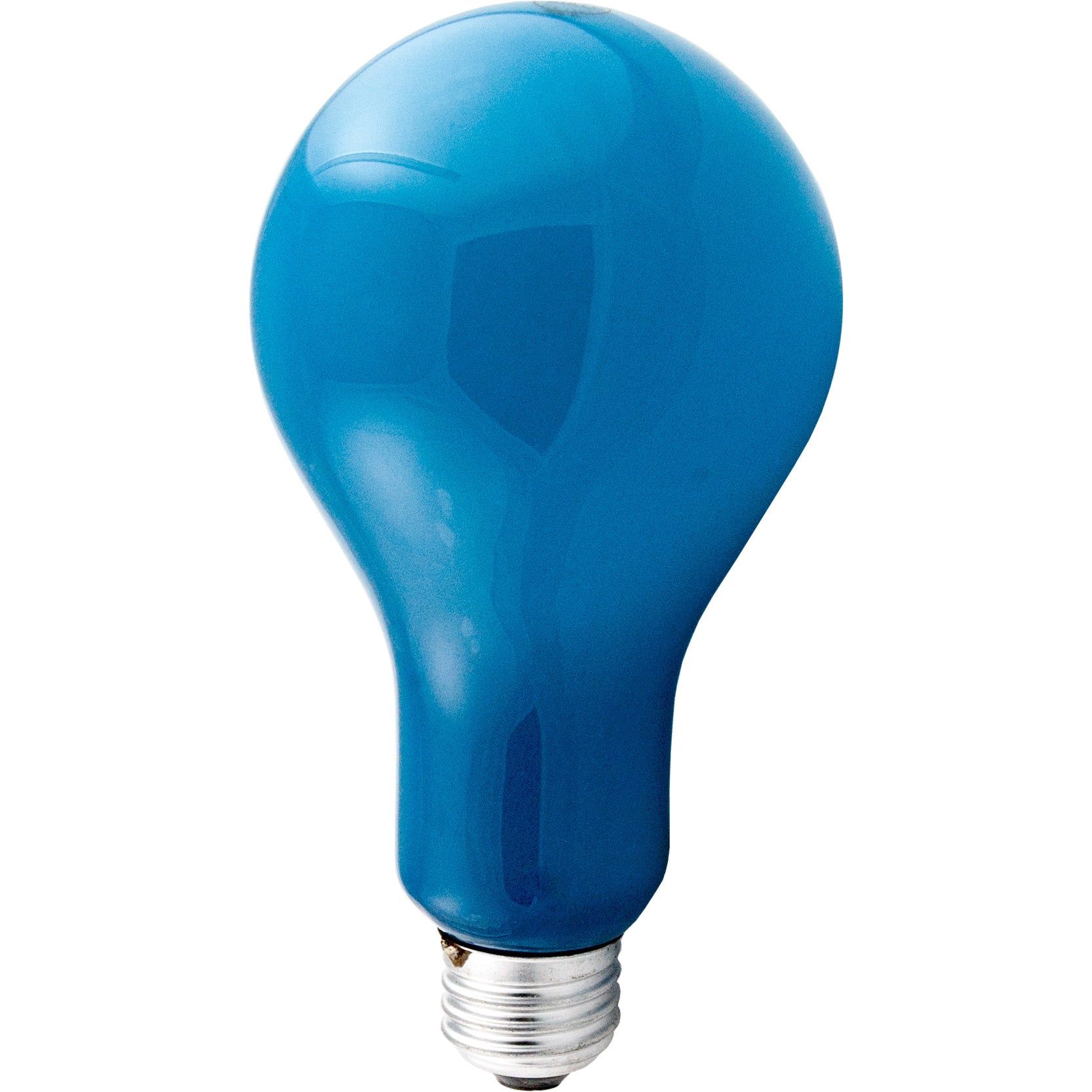

EBW Photograph

EBW

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower840
Color Temperature4800
Lumens10500

Physical Characteristics

BaseE26
Bulb ShapePS25
FilamentC-9
FinishDaylight Pearl
Max Overall Length (MOL)6 15/16

Operating Characteristics

Burn PositionAny
Life Hours6

General Information
Lamp CodeEBW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

PS25 Shape

PS25
Diameter Designation25/8"
Glass Diameter 3 1/8" (3.125")
Shape CodePS
Shape ClassificationPear Straight

C-9 Filament

C-9
Coil TypeC - Single Coil

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko01960EBW
General Electric40567EBW PH/B2
Ushio1000264EBW, PS-25 NO. B2/Blue
Green Energy Lighting (GELCO)60505-WBEBW
Microlites120-500-48F
Canimpex120-500-48F

EBW may also be listed as:
01960 EIKO01960 UPC1970031293019608 EIKO
048777117019 UPC1000264 BLV1000264 USHIO401002/EBW SMITH-VICTOR
401004/EBW SMITH-VICTOR401008/EBW SMITH-VICTOR401015/EBW SMITH-VICTOR401017/EBW SMITH-VICTOR
401019/EBW SMITH-VICTOR401044/EBW SMITH-VICTOR401061/EBW SMITH-VICTOR401063/EBW SMITH-VICTOR
500PS25-NO.B2/BLUE-FROSTED-4840K USHIO500PS25-NO.B2/BLUE-FROSTED-4840K/120V/500W/E26 USHIO500PS25-NO.B2/BLUE-FROSTED-4840K/120V/500W/E26/EBW USHIO500PS25-NO.B2/BLUE-FROSTED-4840K/EBW USHIO
621920 SMITH-VICTOR77-8007-6580 3M78-8007-6580 3M90UL/EBW SMITH-VICTOR
910UL/EBW SMITH-VICTORA120/EBW SMITH-VICTORA12UL/EBW SMITH-VICTORA80/EBW
A8UL/EBW SMITH-VICTORB/2B2/PHOTO-FLOODB2/PHOTOFLOOD GENERAL-ELECTRIC
BW-EBWCAL-12/EBW SMITH-VICTORCAL-8/EBW SMITH-VICTORE26-500W-EBW-PS-25-NO.-B2/BLUE-115-125V-PS79.38MM-176.2MMMOL-10500MMLCL-4800K-6H-ANY-PHOTOFLOOD-1000264 BLV
E26-500W-EBW-PS-25-NO.-B2/BLUE-115-125V-PS79.38MM-176.2MMMOL-10500MMLCL-4800K-6H-ANY-PHOTOFLOOD-1000264 USHIOEBWEBW ANSIEBW ASA
EBW BULB-DIRECTEBW EIKOEBW GENERAL-ELECTRICEBW INTERLIGHT
EBW LAMPTECHEBW MICROLAMPEBW SYLVANIAEBW USHIO
EBW WESTINGHOUSEEBW-120 VOLT ANSIEBW-120 VOLT ASAEBW-120V
EBW-120V ANSIEBW-120V ASAEBW-120V-500WEBW-120V-500W ANSI
EBW-120V-500W ASAEBW-120V-500W-E26 USHIOEBW-120V-500W-E26-PS25-C9-BLUE-GLASS-INSIDE-FROSTED-10500L-4800K-6H-ANY-6-15/16MOL-I-PHOTOFLOOD-NO-B2EBW-120V-500W-E26S-PS-25-C-9-BLUE-GLASS-I.F.-10500L-4800K-6H-ANY-6-15/16MOL-I-PHOTOFLOOD-NO.-B2
EBW-120V/120V/500W/E26 ANSIEBW-2 EIKOEBW-500W-120V-E26 USHIOEBW-NO-0.2 EIKO
EBW-NO-2-SUPERFLOOD SYLVANIAEBW-NO-B2 GENERAL-ELECTRICEBW-PS25-NO.B2/BLUE-115-125V-PS79.38MM-176.2MMMOL-10500MMLCL-4800K-6H-ANY-PHOTOFLOOD-1000264 BLVEBW-PS25-NO.B2/BLUE-115-125V-PS79.38MM-176.2MMMOL-10500MMLCL-4800K-6H-ANY-PHOTOFLOOD-1000264 USHIO
EBW-SUPERFLOOD SYLVANIAEBW/120EBW/120 ANSIEBW/120 ASA
EBW/120V GENERAL-ELECTRICEBW/120V/500W/E26 ANSIEBW/120V/500W/E26S/PS-25/C-9/BLUE-GLASS-I.F/10500L/4800K/6H/ANY/6-15/16MOL/I/PHOTOFLOOD-NO.-B2EBW/NO.2 EIKO
EBW/PS-25-125V-500W-MEDIUM LAMPTECHI/120V/500W/E26/PS25/BLUE/6HI/120V/500W/E26/PS25/BLUE/6H/EBWNO.2/DAYLIGHT/SUPERFLOOD
NO.B2NO.B2 SYLVANIANO.B2/DAYLIGHT/SUPERFLOODPH/B2
PH/NO.B2PHOTO-FLOOD/B2PHOTOFLOOD/B2 GENERAL-ELECTRICPL12/EBW SMITH-VICTOR
PS25-NO.B2/BLUE-FROSTED-4840K USHIOPS25-NO.B2/BLUE-FROSTED-4840K/120V/500W/E26 USHIOPS25-NO.B2/BLUE-FROSTED-4840K/120V/500W/E26/EBW USHIOPS25-NO.B2/BLUE-FROSTED-4840K/EBW USHIO
SP500PS25E26BLUC0VSP500PS25E26BLUC0V-EBWSP500PS25E26BLUE120VSP500PS25E26BLUE120V-EBW
SP500PS25MBLUC0VSP500PS25MBLUC0V-EBWSP500PS25MBLUE120VSP500PS25MBLUE120V-EBW
SUPERFLOOD-EBW SYLVANIA
