ECA ANSI Code

ECA ANSI is a A23 lamp with a E26 base operating at 250 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Pearl finish. The average rated life is 20 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ECA lamps.

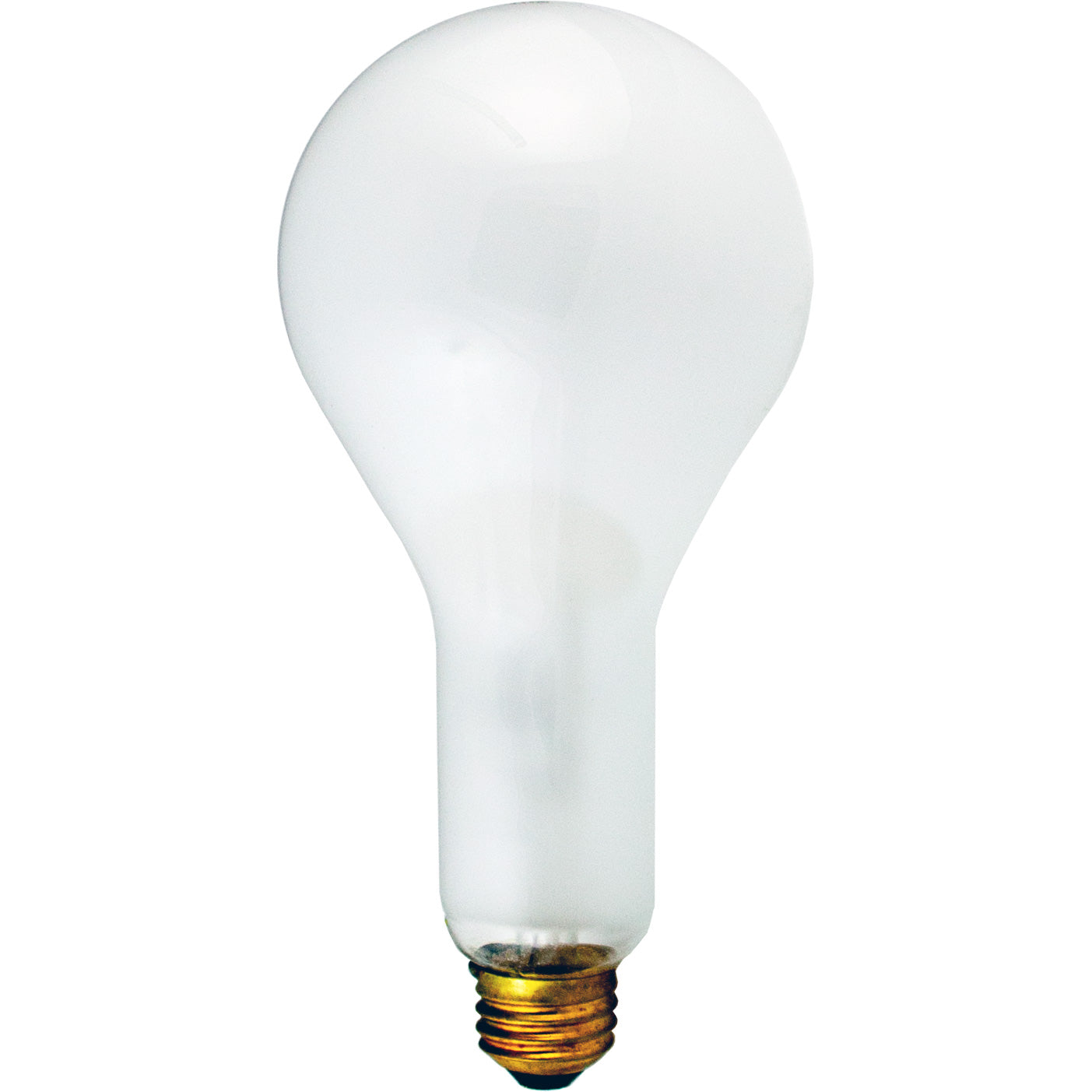

ECA Photograph

ECA

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Beam SpreadOmnidirectional
Candlepower520
Color Temperature3200
Light Center Length (LCL)4 3/8
Lumens6500

Physical Characteristics

BaseE26
Bulb ShapeA23
FilamentC-9
FinishPearl
Max Overall Length (MOL)6

Operating Characteristics

Burn PositionAny
Life Hours20

General Information
Lamp CodeECA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

A23 Shape

A23
Diameter Designation23/8"
Glass Diameter 2 7/8" (2.875")
Shape CodeA
Shape ClassificationArbitrary

C-9 Filament

C-9
Coil TypeC - Single Coil

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko01970ECA
Ushio1000265ECA, A-23
Osram Sylvania11522ECA
Green Energy Lighting (GELCO)60503-WBECA
Norman LampsECAECT 120V
Standard Products40565A-23/250W/120V/E26/ECA
Eiko01990ECA (WIKO)
Microlites120-250-48AF
Canimpex120-250-48AF

Equipment Used In

BrandModelType
Artograph Prism Projector
Artograph Super Prism Projector
Eastman Kodak Autofocus 1
Eastman Kodak Elipton Autofocus 1
Eastman Kodak Elipton Auto Focus 1 (4x5) Enlarger / Photo Printer
Eastman Kodak Autofocus 1 (4 x 5)
