ECT ANSI Code

ECT ANSI is a PS25 lamp with a E26 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Pearl finish. The average rated life is 60 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ECT lamps.

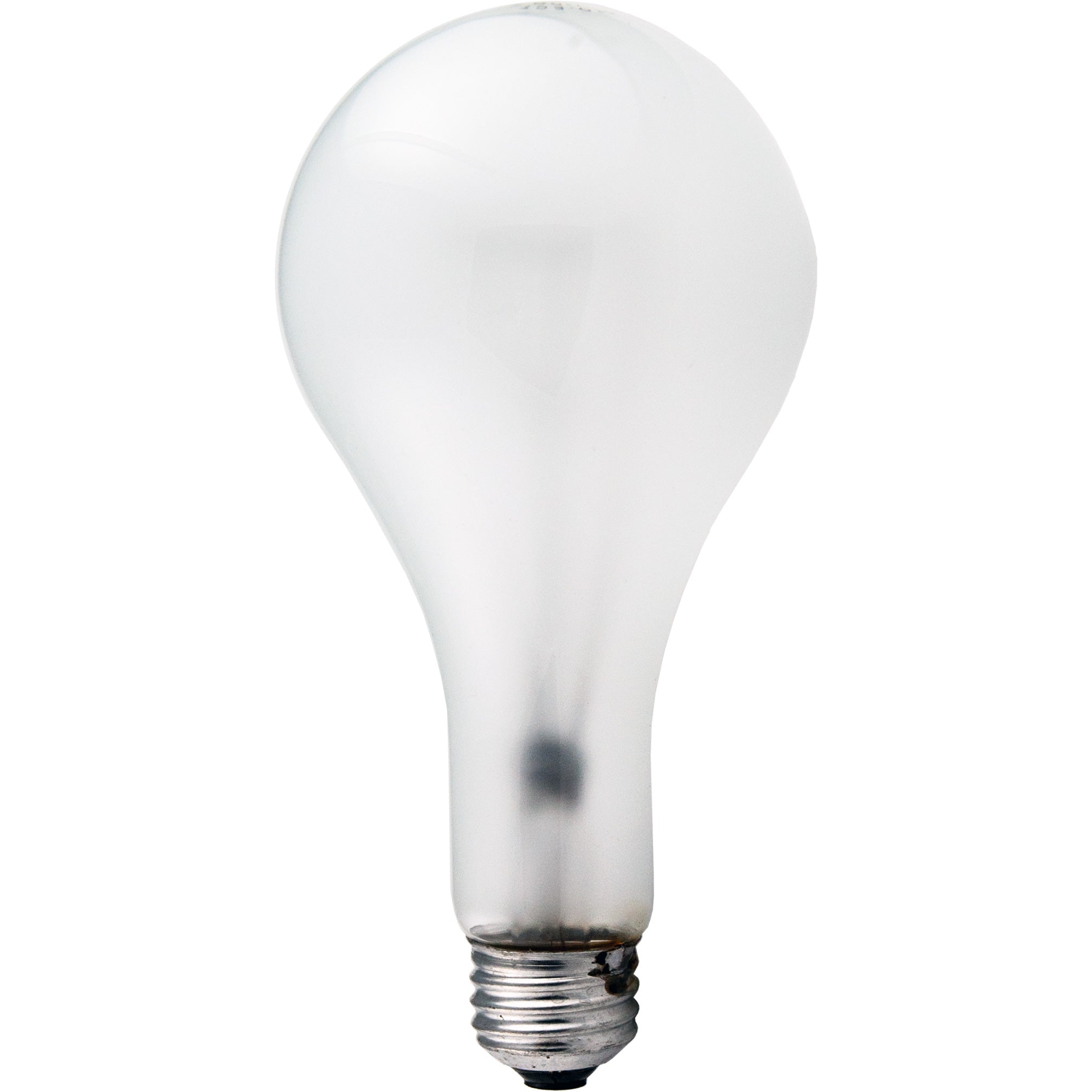

ECT Photograph

ECT

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Beam SpreadOmnidirectional
Candlepower1100
Color Temperature3200
Light Center Length (LCL)2.5" (63.5mm)
Lumens13650

Physical Characteristics

BaseE26
Bulb ShapePS25
FilamentC-9
FinishPearl
Max Overall Length (MOL)6 15/16

Operating Characteristics

Burn PositionAny
Life Hours60

General Information
Lamp CodeECT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

PS25 Shape

PS25
Diameter Designation25/8"
Glass Diameter 3 1/8" (3.125")
Shape CodePS
Shape ClassificationPear Straight

C-9 Filament

C-9
Coil TypeC - Single Coil

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko01980ECT
General Electric40568ECT
Imported Lamp CodeCP/2
Imported Lamp CodeP2/1
Osram Sylvania11560ECT 120V
Ushio1000266ECT, PS-25 3200K
Osram Sylvania11520ECT
Green Energy Lighting (GELCO)60506-WBECT
Norman LampsECTECT 120V
Microlites120-500-48TF
Canimpex120-500-48TF

ECT may also be listed as:
01980 EIKO01980 UPC031293019806 EIKO04613511560 SYLVANIA
048777117156 UPC1000266 BLV1000266 USHIO10235 WIKO
11560 OSRAM11560 SYLVANIA154750G MICROLAMP3129301980 WIKO
401002/ECT SMITH-VICTOR401004/ECT SMITH-VICTOR401008/ECT SMITH-VICTOR401015/ECT SMITH-VICTOR
401017/ECT SMITH-VICTOR401019/ECT SMITH-VICTOR401042/ECT SMITH-VICTOR401044/ECT SMITH-VICTOR
401061/ECT SMITH-VICTOR401063/ECT SMITH-VICTOR401986 SMITH-VICTOR40568 GENERAL-ELECTRIC
500PS25-FROSTED-3200K USHIO500PS25-FROSTED-3200K/120V/500W/E26 USHIO500PS25-FROSTED-3200K/120V/500W/E26/ECT USHIO500PS25-FROSTED-3200K/ECT USHIO
500WATT-ECT500WATT-PS25-5 WESTINGHOUSE500WATT-PS25-5-120 VOLT WESTINGHOUSE64729
90UL/ECT SMITH-VICTOR910UL/ECT SMITH-VICTORA120/ECT SMITH-VICTORA12UL/ECT SMITH-VICTOR
A80/ECTA8UL/ECT SMITH-VICTORCAL-12/ECT SMITH-VICTORCAL-8/ECT SMITH-VICTOR
CP-2-115VOLTCP-2-120 VOLT-500WATTE26-500W-ECT-PS-25-3200K-120V-PS79.38MM-176.2MMMOL-13650MMLCL-3200K-60H-ANY-PHOTOFLOOD-1000266 BLVE26-500W-ECT-PS-25-3200K-120V-PS79.38MM-176.2MMMOL-13650MMLCL-3200K-60H-ANY-PHOTOFLOOD-1000266 USHIO
ECT ANSIECT ASAECT BULB-DIRECTECT EIKO
ECT GENERAL-ELECTRICECT HIDSIECT INTERLIGHTECT LAMPTECH
ECT MICROLAMPECT OSRAMECT SYLVANIAECT USHIO
ECT WESTINGHOUSEECT WIKOECT-120 VOLT ANSIECT-120 VOLT ASA
ECT-120V ANSIECT-120V ASAECT-120V OSRAMECT-120V-500W
ECT-120V-500W ANSIECT-120V-500W ASAECT-120V-500W-E26 USHIOECT-120V-500W-E26-PS25-C9-INSIDE-FROSTED-13650L-3200K-60H-ANY-6-15/16MOL-I-PHOTOFLOOD
ECT-120V-500W-E26S-PS-25-C-9-INSIDE-FROSTED-13650L-3200K-60H-ANY-6-15/16MOL-I-PHOTOFLOODECT-120V/04613511560 SYLVANIAECT-120V/11560 SYLVANIAECT-120V/120V/500W/E26 ANSI
ECT-500W-120V-E26 USHIOECT-PS25-3200K-120V-PS79.38MM-176.2MMMOL-13650MMLCL-3200K-60H-ANY-PHOTOFLOOD-1000266 BLVECT-PS25-3200K-120V-PS79.38MM-176.2MMMOL-13650MMLCL-3200K-60H-ANY-PHOTOFLOOD-1000266 USHIOECT/120V GENERAL-ELECTRIC
ECT/120V/500W OSRAMECT/120V/500W/E26 ANSIECT/PS-25-120V-500W-MEDIUM LAMPTECHECT120V
I/120V/500W/E26/PS25/FR/60HI/120V/500W/E26/PS25/FR/60H/ECTP-2-1 THORNP-2-1-115VOLT THORN
P-2-1-120 VOLTPH-500WATT-PS25-5 WESTINGHOUSEPH-500WATT-PS25-5-120 VOLT WESTINGHOUSEPL12/ECT SMITH-VICTOR
PL8/ECT SMITH-VICTORPS25-FROSTED-3200K/120V/500W/E26 USHIOPS25-FROSTED-3200K/120V/500W/E26/ECT USHIOPS25-FROSTED-3200K/ECT USHIO
SP500PS25E26FR120V-ECTSP500PS25MFR120V-ECT
