ECV ANSI Code

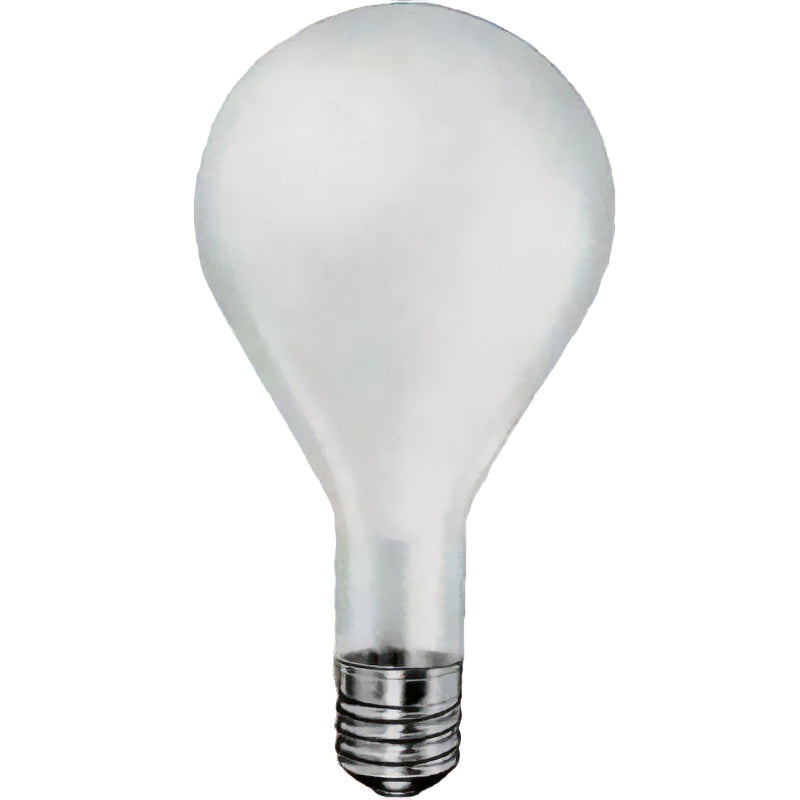

ECV ANSI is a PS40 lamp with a E39 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Pearl finish. The average rated life is 60 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ECV lamps.

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower2100
Color Temperature3200
Light Center Length (LCL)178
Lumens26500

Physical Characteristics

BaseE39
Bulb ShapePS40
FilamentC-7A
FinishPearl
Max Overall Length (MOL)9 3/4

Operating Characteristics

Burn PositionAny
Life Hours60

General Information
Lamp CodeECV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

PS40 Shape

PS40
Diameter Designation40/8"
Glass Diameter 5" (5.0")
Shape CodePS
Shape ClassificationPear Straight

C-7A Filament

C-7A
Coil TypeC - Single Coil

E39 Base

E39

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-1000-49VF
Canimpex120-1000-49VF

ECV may also be listed as:
1000267 USHIO1000PS40-1 WESTINGHOUSE1000PS40-1-120 WESTINGHOUSE1000PS40-1-120V WESTINGHOUSE
1000WATT-PS40-1 WESTINGHOUSE1000WATT-PS40-1-120 VOLT WESTINGHOUSE401030/ECV SMITH-VICTOR621980 SMITH-VICTOR
A160/ECV SMITH-VICTORECV ANSIECV ASAECV GENERAL-ELECTRIC
ECV INTERLIGHTECV USHIOECV WESTINGHOUSEECV-120 ANSI
ECV-120 ASAECV-120 VOLT ANSIECV-120 VOLT ASAECV-120V ANSI
ECV-120V ASAECV-120V-1000WECV-120V-1000W ANSIECV-120V-1000W ASA
ECV-120V-1000W-E39-PS40-C7A-INSIDE-FROSTED-26500L-3200K-60H-ANY-9-3/4MOL-I-PHOTOFLOODECV-120V-1000W-E39S-PS-40-C-7A-INSIDE-FROSTED-26500L-3200K-60H-ANY-9-3/4MOL-I-PHOTOFLOODECV-120V/120V/1000W/E39 ANSIECV/120V GENERAL-ELECTRIC
ECV/120V/1000W/E39 ANSII/120V/1000W/E39/PS40/FR/60HI/120V/1000W/E39/PS40/FR/60H/ECVPH-1000WATT-PS40-1 WESTINGHOUSE
PH-1000WATT-PS40-1-120 VOLT WESTINGHOUSEPH1000PS40-1 WESTINGHOUSEPH1000PS40-1-120 WESTINGHOUSEPH1000PS40-1-120V WESTINGHOUSE
PH1000WPS40-1 WESTINGHOUSEPH1000WPS40-1-120 WESTINGHOUSEPH1000WPS40-1-120V WESTINGHOUSESP1000PS40E39FR-120V
SP1000PS40E39FR120V-ECVSP1000PS40MOGFR-120VSP1000PS40MOGFR120V-ECV
