EDB ANSI Code

EDB ANSI is a T20 lamp with a P28s base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EDB lamps.

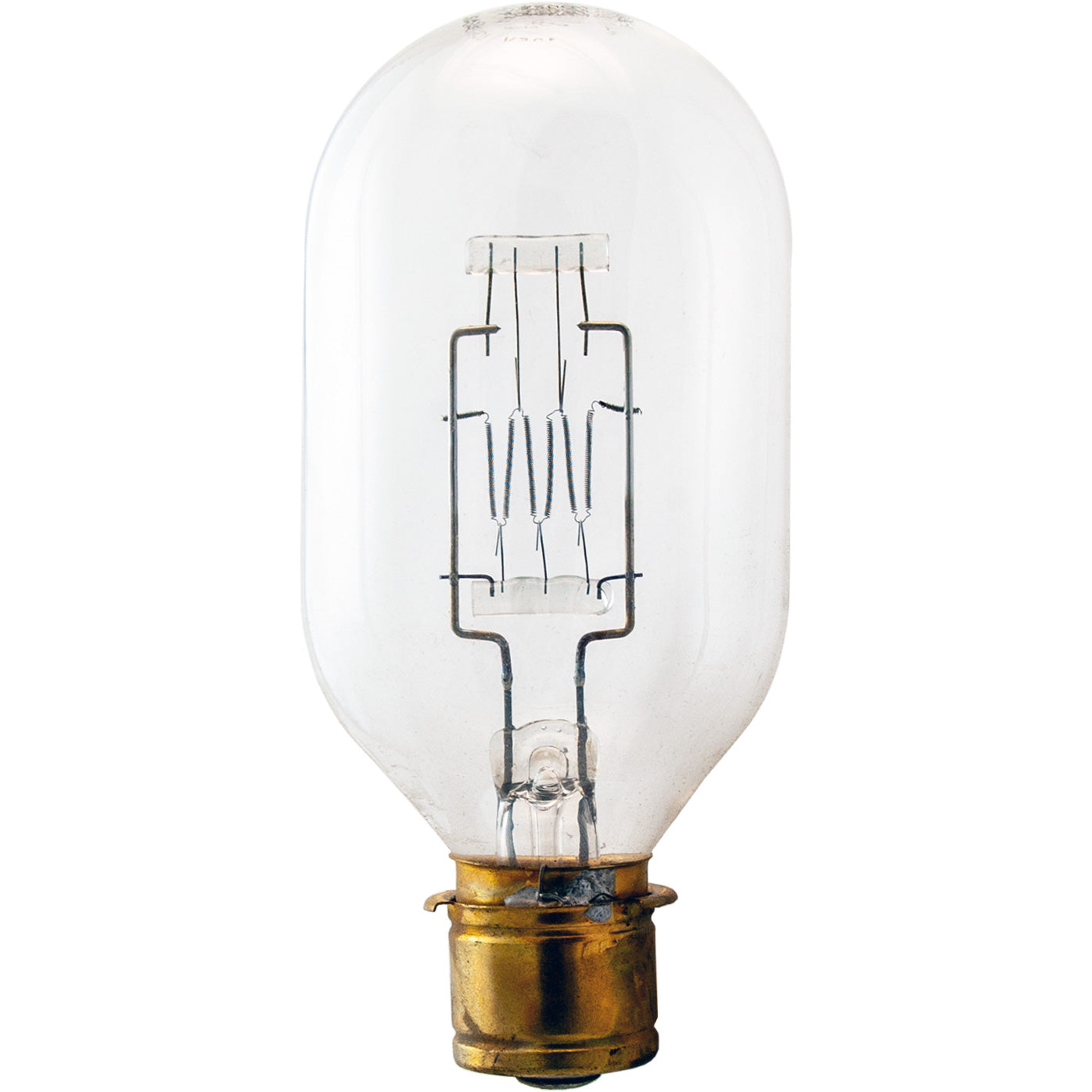

EDB Photograph

EDB

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Color Temperature3200
Light Center Length (LCL)2 3/16
Lumens13200

Physical Characteristics

BaseP28s
Bulb ShapeT20
FilamentC-13
FinishClear
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionVBD
Life Hours50

General Information
Lamp CodeEDB
Code TypeANSI

T20 Shape

T20
Diameter Designation20/8"
Glass Diameter 2 1/2" (2.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEDB

EDB may also be listed as:
500WATT-T20-57 WESTINGHOUSE500WATT-T20-57-120 VOLT WESTINGHOUSEEDB ANSIEDB ASA
EDB INTERLIGHTEDB WESTINGHOUSEEDB-120V-500WEDB-120V-500W ANSI
EDB-120V-500W-P28S-T20-C13-CLEAR-13200L-3200K-50H-BD-5-3/4MOL-2-3/16LCL-I-PROJECTIONEDB-120V/120V/500W/P28S ANSIEDB-125V ANSIEDB-125V ASA
EDB-125V-500W ANSIEDB-125V-500W ASAEDB-125V/125V/500W/P28S ANSIEDB-125VOLT ANSI
EDB-125VOLT ASAEDB/120V/500W/P28S ANSIEDB/125V/500W/P28S ANSII/120V/500W/P28S/T20/C13
I/120V/500W/P28S/T20/C13/EDB-120VI/120V/500W/P28S/T20/CLI/120V/500W/P28S/T20/CL/EDB-120VI/125V/500W/P28S/T20/C13
I/125V/500W/P28S/T20/C13/EDB-125VI/125V/500W/P28S/T20/CLI/125V/500W/P28S/T20/CL/EDB-125VPH-500WATT-T20-57 WESTINGHOUSE
PH-500WATT-T20-57-120 VOLT WESTINGHOUSESP500T20P28SC13-125VSP500T20P28SC13120V-EDB-120VSP500T20P28SC13125V-EDB-125V
SP500T20P28SCL-125VSP500T20P28SCL120V-EDB-120VSP500T20P28SCL125V-EDB-125VSP500T20PC13-125V
SP500T20PC13120V-EDB-120VSP500T20PC13125V-EDB-125VSP500T20PCL-125VSP500T20PCL120V-EDB-120V
SP500T20PCL125V-EDB-125V
