EDS ANSI Code

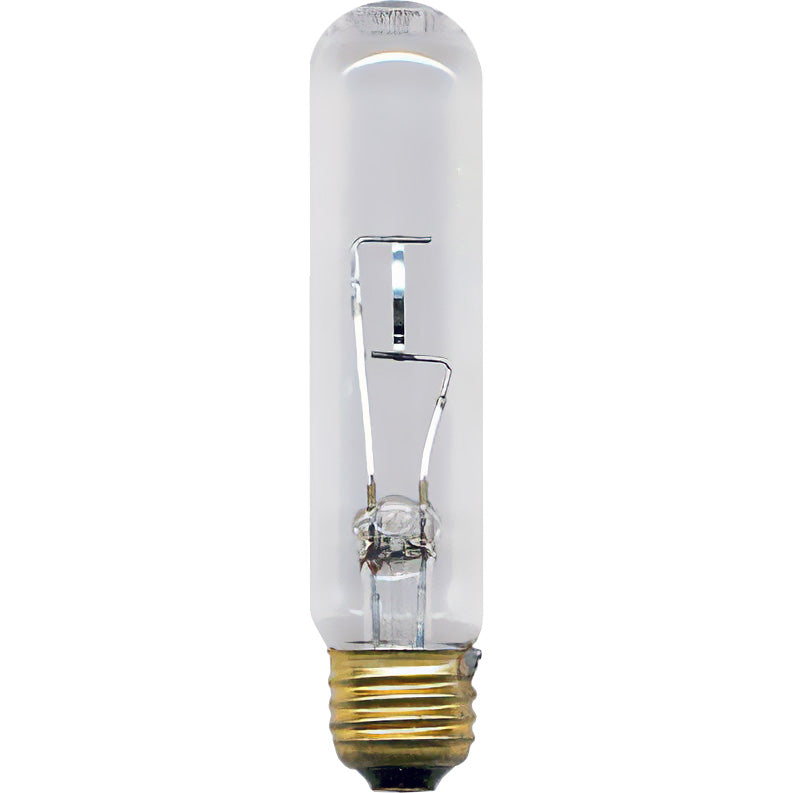

EDS ANSI is a T10 lamp with a E26 base operating at 108 watts and 6 volts. It has a Clear finish. The average rated life is 150 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EDS lamps.

Electrical Specifications

Amps18
Volts6
Watts108

Photometrics

Candlepower140
Light Center Length (LCL)3 3/8
Lumens1800

Physical Characteristics

BaseE26
Bulb ShapeT10
FilamentR-8
FinishClear
Max Overall Length (MOL)5 1/2

Operating Characteristics

Burn PositionBase Down
Life Hours150

General Information
Lamp CodeEDS
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEDS

EDS may also be listed as:
108W-T10-E26S-CLEAR-SR8-6V108W/T10/1108W/T10/1-6V108W/T10/E26/CL/SR8/6V
108W/T10/MED/CL/SR8/6V108WATT-T10-1 GENERAL-ELECTRIC108WATT-T10-1-6VOLT18A-T10-E26S-CLEAR-SR8-6V
18A/T10/118A/T10/1-6V18A/T10/E26/CL/SR8/6V18A/T10/MED/CL/SR8/6V
18AMP-T10-1 GENERAL-ELECTRIC18AMP-T10-1-6VOLT18AMP-T10-1-ILLUMINATOR GENERAL-ELECTRIC23388 GENERAL-ELECTRIC
6VOLT-108WATT-MICROSCOPE-ILLUMINATOR GENERAL-ELECTRIC6VOLT-18AMP-MICROSCOPE-ILLUMINATOR GENERAL-ELECTRICDYZEDS ANSI
EDS ASAEDS INTERLIGHTEDS-6V ANSIEDS-6V ASA
EDS-6V-108W ANSIEDS-6V-108W ASAEDS-6V-18AEDS-6V-18A ANSI
EDS-6V-18A ASAEDS-6V-18A-E26-T10-R8-CLEAR-150H-BD-5-1/2MOL-3-3/8LCL-I-MICROSCOPE-ILLUMINATOR-SOURCE-WXH-2X14MMEDS-6V-18A-E26S-T-10-R-8-CLEAR-150H-BD-5-1/2MOL-3-3/8LCL-I-MICROSCOPE-ILLUMINATOR-SOURCE-WXH-2X14MMEDS-6V/6V/108W/E26 ANSI
EDS-6VOLT ANSIEDS-6VOLT ASAEDS/6V/108W/E26 ANSII/6V/108W/E26/T10/CL/50H
I/6V/108W/E26/T10/CL/50H/EDSI/6V/108W/E26/T10/SR8I/6V/108W/E26/T10/SR8/50HI/6V/108W/E26/T10/SR8/50H/EDS
I/6V/108W/E26/T10/SR8/85MMLCLI/6V/108W/E26/T10/SR8/85MMLCL/50H/EDS ANSII/6V/108W/E26/T10/SR8/CL/EDS ANSII/6V/108W/E26/T10/SR8/EDS ANSI
I/6V/108W/E26/TUBE/SR8I/6V/108W/E26/TUBE/SR8/85MMLCLI/6V/18A/E26/T10/SR8I/6V/18A/E26/T10/SR8/85MMLCL
I/6V/18A/E26/TUBE/SR8I/6V/18A/E26/TUBE/SR8/85MMLCLPH-108WATT-T10-1PH-108WATT-T10-1-6VOLT
PH-18AMP-T10-1PH-18AMP-T10-1-6VOLTSP108T10E26CL6VSP108T10E26CL6V-EDS
SP108T10E26SR8-6VSP108T10E26SR86V-EDSSP108T10MCL6VSP108T10MCL6V-EDS
SP108T10MSR8-6VSP108T10MSR86V-EDS
