EEX ANSI Code

EEX ANSI is a T6 lamp with a P28s base operating at 300 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EEX lamps.

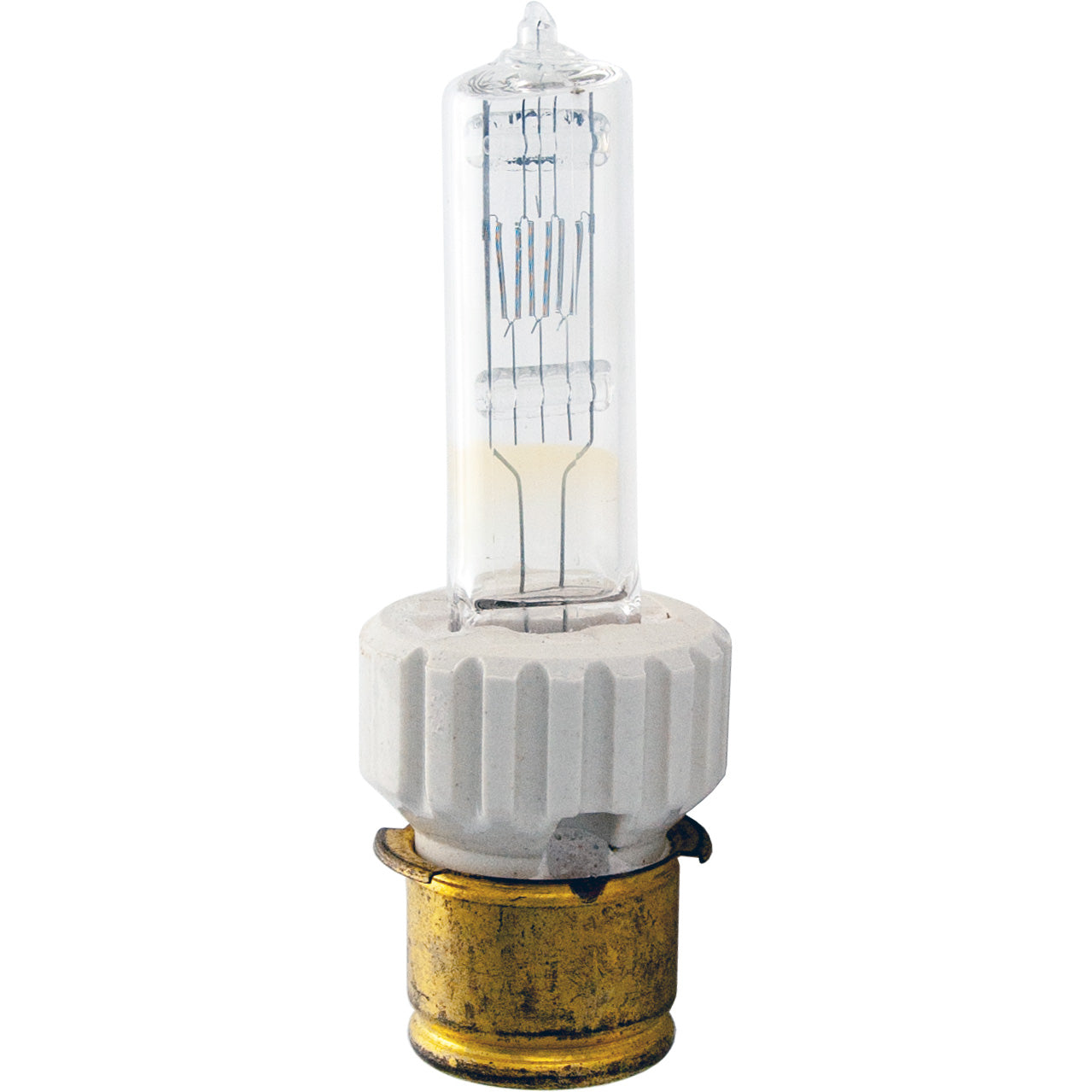

EEX Photograph

EEX

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower570
Color Temperature3200
Light Center Length (LCL)2 3/16
Lumens7200

Physical Characteristics

BaseP28s
Bulb ShapeT6
FilamentC-13
FinishClear
Max Overall Length (MOL)4 3/4

Operating Characteristics

Burn PositionVBU
Life Hours50

General Information
Lamp CodeEEX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsEEX300W, 120V
Microlites120-300-63X
Canimpex120-300-63X

Equipment Used In

BrandModelType
Athena 4500 MULTI-MOTION ANALYTIC 16mm Projector Optical
