EFM ANSI Code

EFM ANSI is a MR16 lamp with a GZ6.35 base operating at 50 watts and 8 volts. It has a color temperature of 3300 Kelvin. It has a Open front finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EFM lamps.

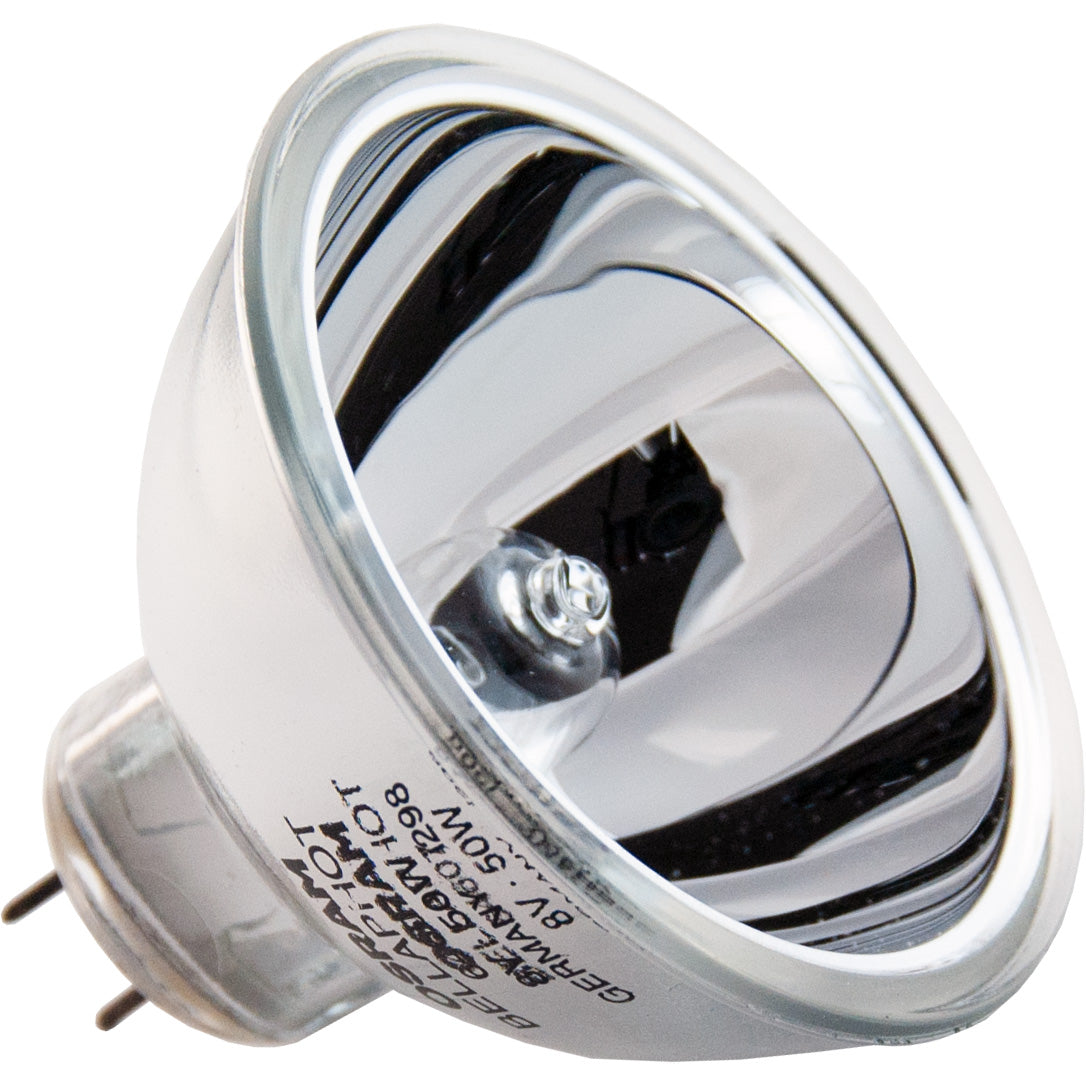

EFM Photograph

EFM

Electrical Specifications

Amps6.25
Volts8
Watts50

Photometrics

Color Temperature3300
Lumens380

Physical Characteristics

BaseGZ6.35
Bulb ShapeMR16
FilamentC-6
FinishOpen front
Max Overall Length (MOL)1 3/8

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeEFM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsA1/229

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

C-6 Filament

C-6
Coil TypeC - Single Coil

GZ6.35 Base

GZ6.35

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
AlgotecEFMEFM WALKLITE
Atlas/ThornA1/229
EFOS3040
Imported Lamp Code52200
Imported Lamp CodeJCR8V-50W
Imported Lamp CodePN101
Osram Sylvania5415164607 EFM
Osram Sylvania64606
Philips6847
SatelecEFM
Ushio1000268EFM
Osram Sylvania54123EFM 64607
Kahoku Lighting Solutions (KLS)62021-KLSEFM Japan
Green Energy Lighting (GELCO)62021-GELEFM
Norman LampsEFMProjector Bulb 8V 50W
Rexim, LLCRM-101
Microlites08-050-27R
Canimpex08-050-27R

Equipment Used In

BrandModelType
AO Reichert 14110-025
Abbott AXSYM
Abbott 14110-025 Blood Analyzer: IMX, TDX
Abbott 9520-12 Analyzer: TDX
Agfa-Gevaert Movector G
Agfa-Gevaert Movector F9 (newer)
Agfa-Gevaert Movector FT (newer)
Agfa-Gevaert Movector F8 (newer)
Agfa-Gevaert Movector BS
Agfa-Gevaert Movector BS (newer)
Agfa-Gevaert Movector G (newer)
Agfa-Gevaert Movector (newer)
Agfa-Gevaert Movector B
Agfa-Gevaert Movector FT
Agfa-Gevaert Movector B (newer)
Agfa-Gevaert Dual newer
Agfa-Gevaert Movector Dual (newer)
Agfa-Gevaert Movector F9
Agfa-Gevaert Movector Dual
Algotec Walklite
Argus 510 Sound
Bell and Howell Multi Motion 1442
Bell and Howell Filmosonic Soundstar XJ
Canon Cine S-400 (newer) 8mm Projector Movie
Chinon 5100
Chinon 4100
Comet S8F
Copal / Sekonic CP-33
Copal / Sekonic CP-401 Sound
Copal / Sekonic Sound 401
Copal / Sekonic CP-501 Sound
Copal / Sekonic CP-55
EFOS 3040 Dental Lamp
Elmo Filmatic Dual-8 A
Elmo Filmatic A Dual-8
Elmo VP-A Dual-8
Elmo Dualmatic VP-A
Elmo Optical Magnetic
Elmo VP-A
Eumig Mark S-705
Foto-Quelle Revue 210 Slide Projector
GAF (Ansco) SU-510
Hanimex S8-1000
Hanimex 808D
Hanimex SR
Hanimex SR-8600
Hanimex SR-8000
Hervic Corp. Silma S99
Noris President
Noris Record L-100
Noris Record L-50
Noris L
Osawa Filmosonic Soundstar XJ
Polysteril 2
Polysteril Medical
Richmond Research Corp. Elmo VP-A
Richmond Research Corp. Dual VP-A
Sankyo Dualux 1000
Sankyo Sound 460
Sankyo Sound 500
Satelec Servolite

EFM may also be listed as:
006789 OSRAM01960 WIKO01990 EIKO01990 UPC
031293019905 EIKO04613554123 SYLVANIA048777117293 UPC1000268 USHIO
1000269 USHIO122001 NARVA130264 NARVA130264 ORBITEC
130264-H164607-GZ635-50X40-8V-EFM-50W ORBITEC130264/8V/50W ORBITEC130264/8V/50W/GZ6.35 ORBITEC14110-025 ABBOTT
14110-025 AMERICAN-OPTICAL-REICHERT14110-025 BULB-DIRECT14110-025/8V/50W ABBOTT14110-025/8V/50W AMERICAN-OPTICAL-REICHERT
14110-025/8VOLT/50WATT ABBOTT14110-025/8VOLT/50WATT AMERICAN-OPTICAL-REICHERT21276 GENERAL-ELECTRIC25094
29053 NANTONG-DONAR302914345 SPECIAL-INDUSTRIAL-LIGHTING3040 BULB-DIRECT3040 EFOS
3040/8V/50W EFOS3040/8VOLT/50WATT EFOS3129301990 WIKO31484-9
31484-9 PHILIPS314849/EFM PHILIPS4050300006789 OSRAM40992860 PHILIPS
40992860-EOC PHILIPS41251 ALTERNATYWA41251 GENERAL-ELECTRIC41251-SKU GENERAL-ELECTRIC
5132-1 GUERRA5220054123 GILWAY54123 OSRAM
54123 SYLVANIA5415154151 OSRAM54151 SYLVANIA
54151/EFM/64607 SYLVANIA64606 OSRAM64606/6847-PHILIPS OSRAM64607 SYLVANIA
64607 WOTAN64607-8 OSRAM64607-8V OSRAM64607-8VOLT OSRAM
64607-EFM BULB-DIRECT64607-EFM OSRAM64607-EFM-50W-8V-GZ6.364607-EFM-50W-8V-GZ6.3 OSRAM
64607-LT64607-OSRAM64607-OSRAM LAMPTECH64607-OSRAM/MR-16-8V-50W-EFM LAMPTECH
64607/50W8V/GZ6.35EFM OSRAM64607/6847-PHILIPS OSRAM64607/8V/50W OSRAM64607/8V50W/GZ6.35 OSRAM
6847 PHILIPS6847-ALU PHILIPS6847-EFM BULB-DIRECT6847-P
6847/64606-OSRAM PHILIPS6847/64607-OSRAM PHILIPS6847/8V/50W/GZ6.35/MR16D/50H PHILIPS6847/A1-229-LIF PHILIPS
6847/EFM-ANSI PHILIPS6847/FO PHILIPS6847FO6847FO-50W-GZ6.35-8V-1CT/10X5F
6847FO-50W-GZ6.35-8V-1CT/10X5F PHILIPS8-EFM-50 RILUMA8-EFM-50W RILUMA8V-EFM-50 RILUMA
8V-EFM-50W RILUMA8VOLT-EFM-50WATT RILUMA9240-485-14500 PHILIPS943905
99-X-421 EFFNER99-X-421 FAROMEDA1-229 ATLASA1-229 LIF
A1-229 THORNA1-229-8V-50W-GZ6.35 LIFA1-229/6847-PHILIPS LIFA1-229/8V/50W
A1-229/8V/50W ATLASA1-229/8V/50W LIFA1-229/8V/50W OSRAMA1-229/8V/50W THORN
A1/229 GENERAL-ELECTRICA1/229 NANTONG-DONARA1/229-8V-50W-GZ6.35-MR50-C8/C6-CLEAR-3300K-50H-HOR-44.45MMMOL-Q-INTEGRAL-DICHROIC-MIRROR-FOCAL-DISTANCE-32MMA1/229-EFM-50W-8V-GZ6.35 GENERAL-ELECTRIC
A1/229/EFM/50W/8V GENERAL-ELECTRICA1/229/EFM/8V/50W/GZ6.35/50H GENERAL-ELECTRICABBOTT-TDX-IMXBW-EFM
CL70039 CARLEY-LAMPSCVG-4055EFMEFM AKKU
EFM ANSIEFM ASAEFM BULB-DIRECTEFM EIKO
EFM GENERAL-ELECTRICEFM GILWAYEFM GUERRAEFM INTERLIGHT
EFM KONDOEFM MICROLAMPEFM NANTONG-DONAREFM NARVA
EFM ORBITECEFM OSRAMEFM PHILIPSEFM SYLVANIA
EFM USHIOEFM WESTINGHOUSEEFM WIKOEFM-50PK-50W-8V PHILIPS
EFM-50W-8V-GZ6.35 USHIOEFM-64607 OSRAMEFM-8 ANSIEFM-8 ASA
EFM-8V ANSIEFM-8V ASAEFM-8V-50 RILUMAEFM-8V-50W
EFM-8V-50W ANSIEFM-8V-50W ASAEFM-8V-50W RILUMAEFM-8V-50W-GZ6.35 USHIO
EFM-8V-50W-GZ6.35-MR-16-C-6-OPEN-FRONT-3300K-50H-BDTH-1-3/8MOL-Q-8MM-MOVIE-PROJECTOR-DICHROIC-REFL.-WORKING-DIST.-1-1/4EFM-8V-50W-GZ6.35-MR16-C6-OPEN-FRONT-3300K-50H-BDTH-1-3/8MOL-Q-8MM-MOVIE-PROJECTOR-DICHROIC-REFL-WORKING-DIST-1-1/4EFM-8V/8V/50W/GZ6.35/MR16D ANSIEFM-8VOLT ANSI
EFM-8VOLT ASAEFM-8VOLT-50WATT RILUMAEFM-A1/229-8V GENERAL-ELECTRICEFM-D KONDO
EFM-D-S KONDOEFM-D-S USHIOEFM-GE LAMPTECHEFM-GE/8V-50W-MR-16 LAMPTECH
EFM/64607 SYLVANIAEFM/64607/8V/50W OSRAMEFM/6847-PHILIPS ANSIEFM/8V/50W OSRAM
EFM/8V/50W/D/S ANSIEFM/8V/50W/GZ6.35 ANSIEFM/8V/50W/GZ6.35/MR16D ANSIEFM/8V/50W/GZ6.35/MR16D/D/S ANSI
EFM/A1-229 ANSIEFM/A1-229/8V/50W ANSIEFM/A1-229/8V/50W/GZ6.35 ANSIEFM/D WIKO
EFM/D/S ANSIEFM/D/S ASAEFM/GZ6.35 USHIOEFM/HALOGEN/8V/50W/GZ6.35/50MMX42MM AKKU
EFM/HALOGEN/8V/50W/GZ6.35/50MMX42MM/50H AKKUEFM64607-8VEFM64607-8V/04613554123 SYLVANIAEFM64607-8V/54123 SYLVANIA
EFM8-50 RILUMAEFM8-50W RILUMAEFWGTL-OS-54123
GZ6.35-50X40-8V-50W-EFM/H164607/130264 ORBITECGZ6.35-50X40MM-8V-50W-EFM/H164607/130264 ORBITECGZ635-50X40-8V-EFM-50W ORBITECH-164607 ORBITEC
H/8V/50W/64607 OSRAMH/8V/50W/EFM OSRAMH/8V/50W/EFM-64607 OSRAMH/8V/50W/GZ6.35/50MMX42MM/50H/6847 PHILIPS
H/8V/50W/GZ6.35/50MMX42MM/50H/EFMH/8V/50W/GZ6.35/50MMX42MM/50H/EFM AKKUH/8V/50W/GZ6.35/50MMX42MM/50H/KL-850 AKKUH/8V/50W/GZ6.35/MR16
H/8V/50W/GZ6.35/MR16/50H/130264H/8V/50W/GZ6.35/MR16/50MMMOL/50H/130264H/8V/50W/GZ6.35/MR16D/32MMWDH/8V/50W/GZ6.35/MR16D/32MMWD/50H
H/8V/50W/GZ6.35/MR16D/32MMWD/50H/A1-229-8V-50W-GZ6.35 LIFH/8V/50W/GZ6.35/MR16D/3300KH/8V/50W/GZ6.35/MR16D/50HH/8V/50W/GZ6.35/MR16D/C6-OR-C8/50H
H/8V/50W/GZ6.35/MR16D/C6-OR-C8/50H/EFMH/8V/50W/GZ6.35/MR16D/C6/50HH/8V/50W/GZ6.35/MR16D/C6/50H/EFMH/8V/50W/GZ6.35/MR16D/C8/50H
H/8V/50W/GZ6.35/MR16D/C8/50H/EFMH/8V/50W/GZ6.35/MR16D/CL/50HH/8V/50W/GZ6.35/MR16D/CL/50H/EFMH/8V/50W/GZ6.35/MR16D/FO
H/8V/50W/GZ6.35/MR16D/FO/50HH164607-GZ635-50X40-8V-EFM-50W ORBITECH164607/8V/50W ORBITECH164607/8V/50W/GZ6.35 ORBITEC
H302 HYBECHALOGEN/8V/50W/GZ6.35/50MMX42MM/50H/EFM AKKUHALOGEN/8V/50W/GZ6.35/50MMX42MM/50H/KL-850 AKKUHALOGEN/8V/50W/GZ6.35/50MMX42MM/EFM AKKU
II-POLYSTERIL CASTELLINIJCM-8-50JCM/8V/50WJCM/8V/50W/MR16
JCR-6V-50-G-1JCR-6V-50W-G-1JCR-6VOLT-50WATT-G-1JCR-8V-50 USHIO
JCR-8V-50-G-1JCR-8VOLT-50WATT USHIOJCR-8VOLT-50WATT-G-1JCR6-50G1
JCR6-50WG1JCR8-50 USHIOJCR8-50G1JCR8-50W USHIO
JCR8-50WG1JCR8V-50W USHIOJCR8V-50W/32.0MMWD/50H USHIOJCR8V-50W/50H USHIO
JCR8V-50W/8V/50W/GZ6.35 USHIOJCR8V-50W/8V/50W/GZ6.35/EFM USHIOJCR8V-50W/EFM USHIOJCR8V-50WG1
JCR8V50W-GZ6.35 USHIOJCR8V50W-GZ6.35/EFM USHIOJCR8V50WGZ6.35-32MMWDJCR8V50WGZ6.35FO
KL-850 AKKUKL-850/HALOGEN/8V/50W/GZ6.35/50MMX42MM/50H AKKULT-64607MR-16-FACETED-DICHROIC-REFLECTOR-50-8-EFM-A1/229-8MM-PROJECTION-3300-C-6-44.45-50.67-32-50-GZ6.35-20-MV-41251-2 GENERAL-ELECTRIC
MR-16-FACETED-DICHROIC-REFLECTOR-50W-8V-EFM-A1/229-8MM-PROJECTION-3300-C-6-44.45-50.67-32-50-GZ6.35-20-MV-41251-2 GENERAL-ELECTRICPN-101POLYSTERIL CASTELLINIPOLYSTERIL-II
POLYSTERIL-II CASTELLINIQ/50W/MR16/GZ6.35/8V/130264 NARVAS-4055SERVOLITE BULB-DIRECT
SERVOLITE SATELECSERVOLITE/8V/50W SATELECSERVOLITE/8VOLT/50WATT SATELECSL-4055
SPQ50MR16DGZ6.35C6-OR-C88VSPQ50MR16DGZ6.35C6-OR-C88V-EFMSTG-4055TC-4055
TDX ABBOTTTDX-IMX-ABBOTTTF-4055TS-4055
WALK-LITEWALKLITE ALGOTECHWALKLITE BULB-DIRECTWALKLITE/8V/50W ALGOTECH
WALKLITE/8VOLT/50WATT ALGOTECH
