EGD ANSI Code

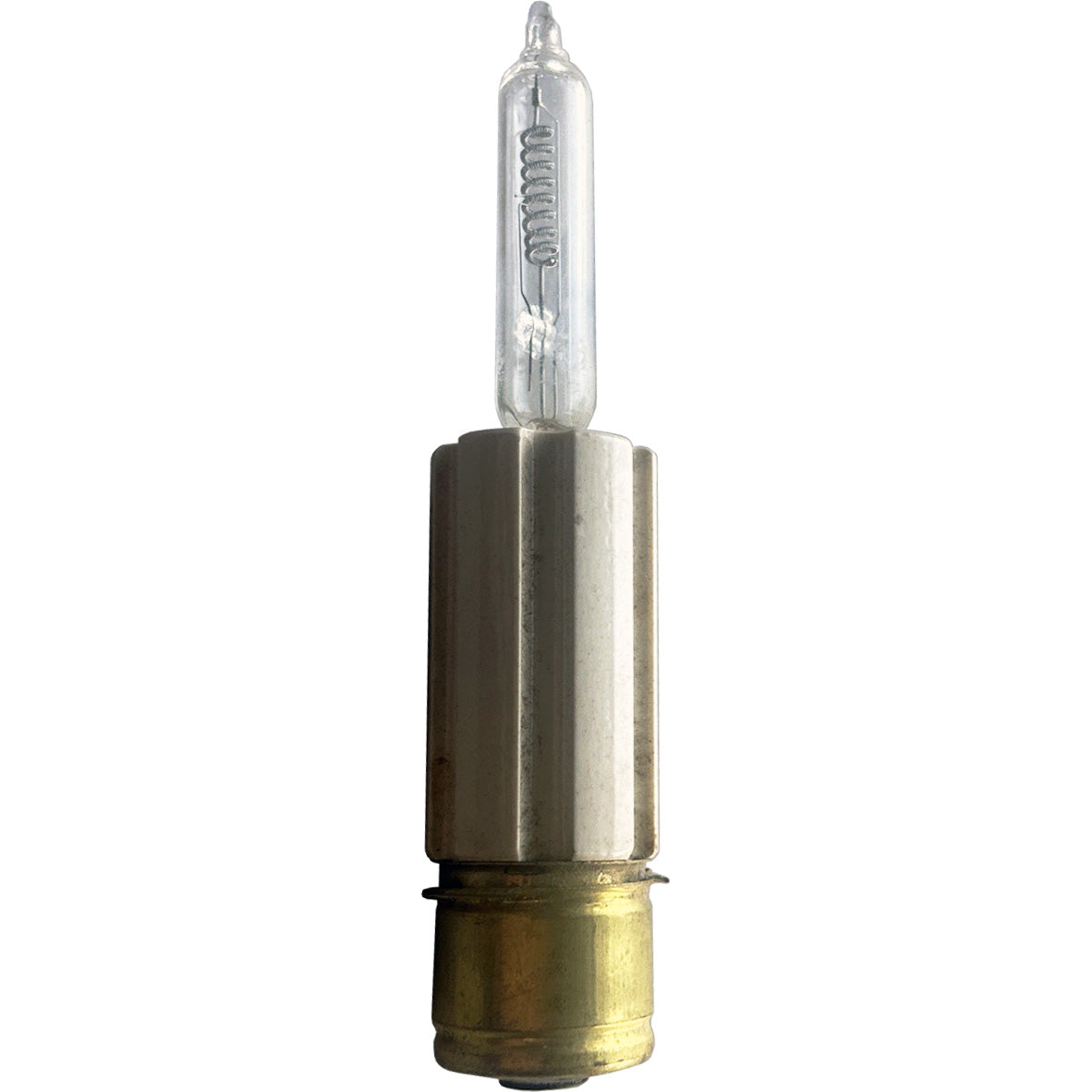

EGD ANSI is a T4 lamp with a P28s base operating at 500 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EGD lamps.

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower1000
Color Temperature3150
Light Center Length (LCL)3 1/2
Lumens12700

Physical Characteristics

BaseP28s
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)6

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeEGD
Code TypeANSI

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEGD

EGD may also be listed as:
EGD ANSIEGD ASAEGD BULB-DIRECTEGD-120 ANSI
EGD-120 ASAEGD-120 VOLT ANSIEGD-120 VOLT ASAEGD-120V ANSI
EGD-120V ASAEGD-120V-500WEGD-120V-500W ANSIEGD-120V-500W ASA
EGD-120V-500W-P28S-T-4-CC-8-CLEAR-13000L-3050K-300H-ANY-6MOL-3-1/2LCL-Q-STTV-ELLIPSOIDAL-REFL.-SPOTSEGD-120V-500W-P28S-T4-CC8-CLEAR-13000L-3050K-300H-ANY-6MOL-3-1/2LCL-Q-STTV-ELLIPSOIDAL-REFL-SPOTSEGD-120V/120V/500W/P28S ANSIEGD-EGC ANSI
EGD-EGC ASAEGD/120V/500W/P28S ANSIH/120V/500W/P28S/T4/CC8/150H/EGDSPQ500T4P28SAX120V-EGD
SPQ500T4P28SCC8120V-EGDSPQ500T4PAX120V-EGDSPQ500T4PCC8120V-EGD
