EGK ANSI Code

EGK ANSI is a T6 lamp with a P28s base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Ext. frosted finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EGK lamps.

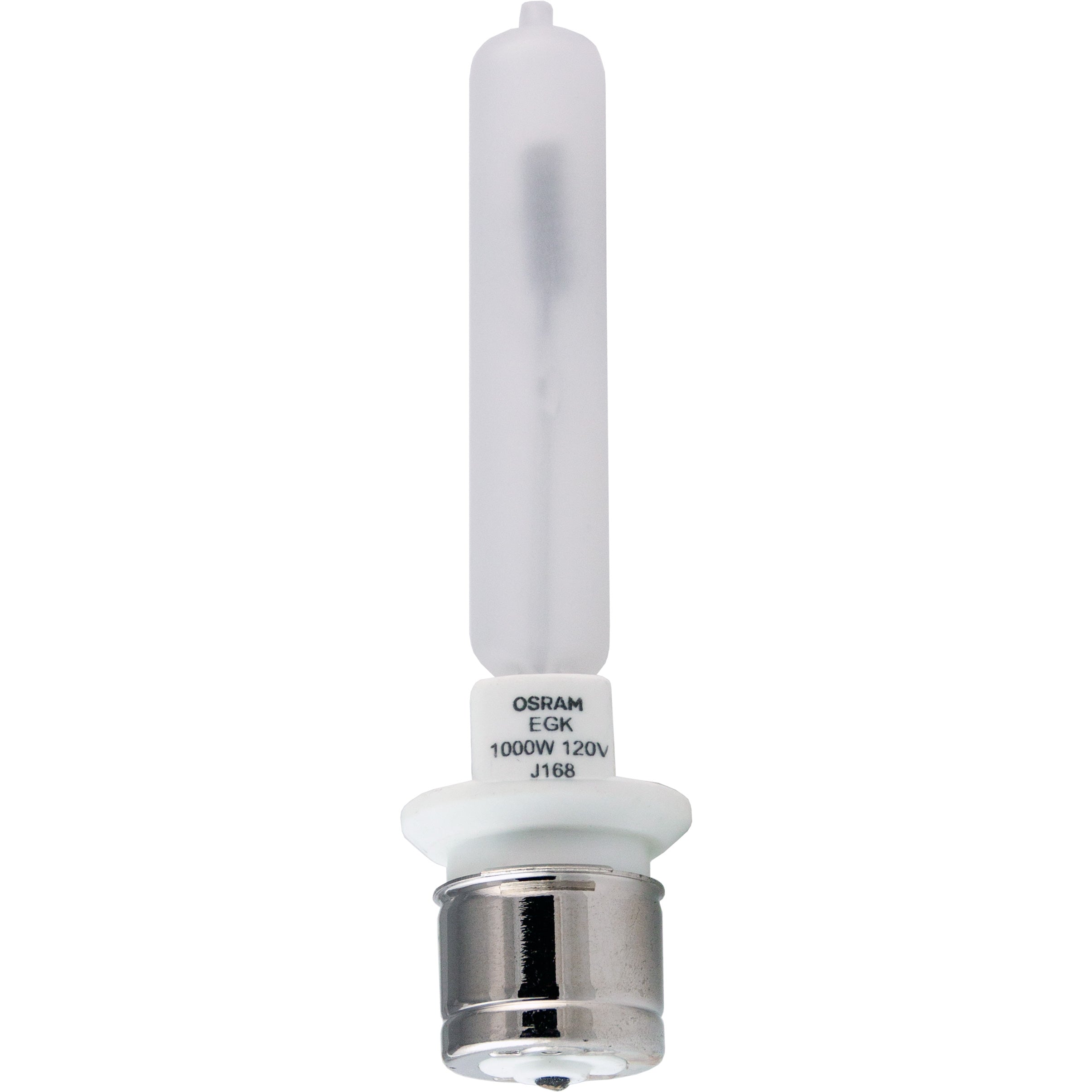

EGK Photograph

EGK

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Candlepower1900
Color Temperature3200
Light Center Length (LCL)3 1/2
Lumens26500

Physical Characteristics

BaseP28s
Bulb ShapeT6
FilamentCC-8
FinishExt. frosted
Max Overall Length (MOL)6

Operating Characteristics

Burn PositionAny
Life Hours400

General Information
Lamp CodeEGK
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762190EGK
Colortran178-017
General Electric38852EGK-Q1000/4/P
Industry CodeQ1000/4/P, JCV120V-1000WCF
Osram Sylvania54656EGK
Sunlite70074EGK
Ushio1000279EGK
Microlites120-1000-63KF
Canimpex120-1000-63KF
Eiko02050EGK (WIKO)

Equipment Used In

BrandModelType
Altman Lighting 160 14-Scoop
