EGT ANSI Code
EGT ANSI is a T6 lamp with a G22 base operating at 1000 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EGT lamps.

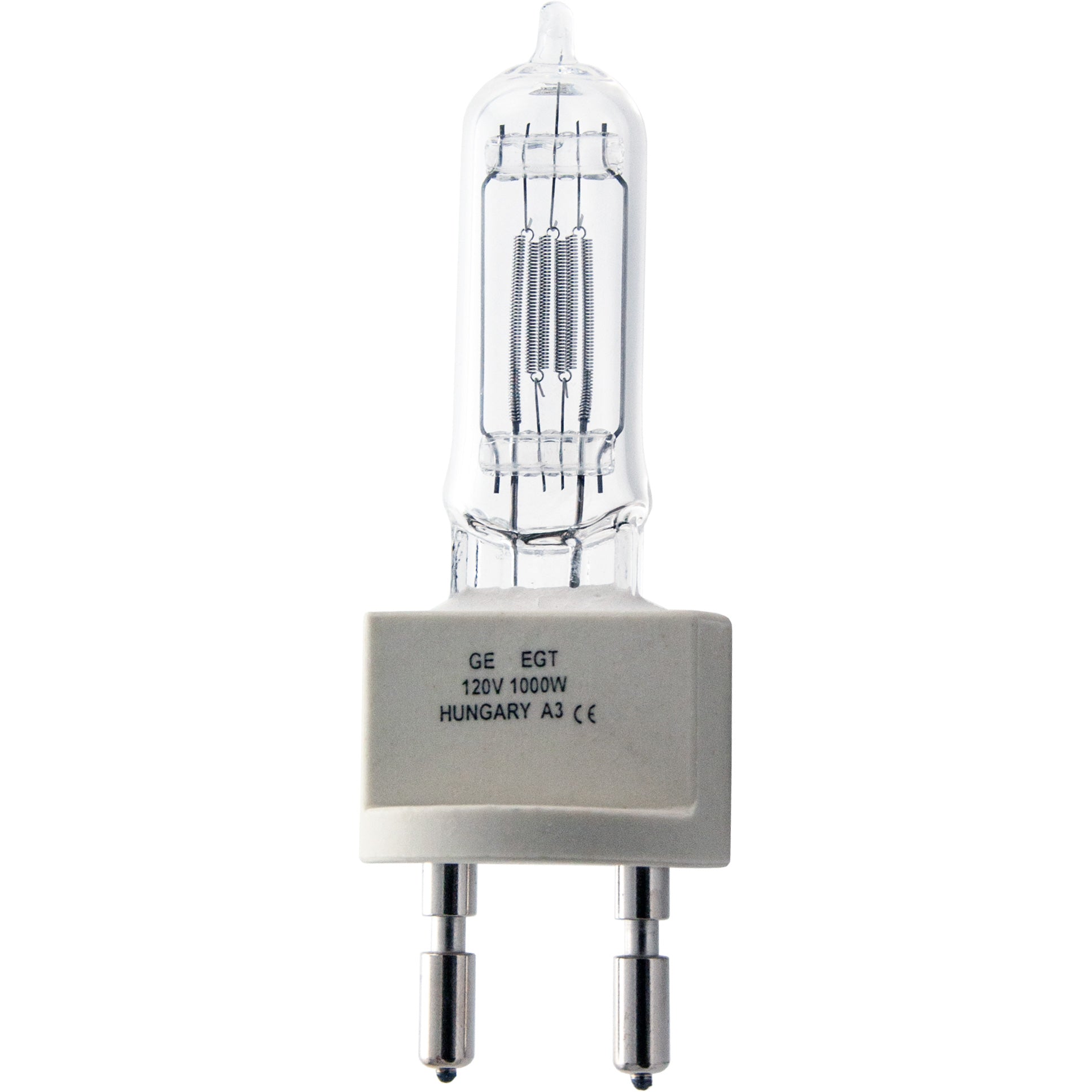

EGT Photograph |
 |
Electrical Specifications | |
| Amps | 8.33 |
|---|---|
| Volts | 120 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 2200 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 2 1/2 |
| Lumens | 28500 |
Physical Characteristics | |
| Base | G22 |
|---|---|
| Bulb Shape | T6 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 5 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | EGT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T6 Shape | |
 | |
| Diameter Designation | 6/8" |
|---|---|
| Glass Diameter | 3/4" (0.75") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
G22 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlas/Thorn | CP/19 | ||
| Atlas/Thorn | CP/40 | ||
| Bulbrite | 762205 | EGT | |
| Colortran | 176-097 | ||
| Colortran | BS10-32/7 | ||
| General Electric | 39191 | EGT-Q1000T7/4CL | |
| Grainger | 4V243 | ||
| Imported Lamp Code | 6995 | ||
| Industry Code | Q1000T7/4CL | ||
| Osram Sylvania | 54664 | EGT 64742 | Available |
| Philips | 318964 | EGT 1000W 120V 10PK | |
| Philips | 6995Z | ||
| Philips | 7761P | ||
| Sunlite | 70070 | EGT | |
| Ushio | 1000283 | EGT, JS120V-1000WC | Available |
| General Electric | 88622 | EGT-Q1000T7/4CL 120V | |
| Microlites | 120-1000-32T | ||
| Canimpex | 120-1000-32T | ||
| Biclite | 11747 | EGT | |
| Biclite | 11787 | EGT | |
Equipment Used In | ||
| Brand | Model | Type |
| ARRI | ARRI Studio 1000 Fresnel | |
| ARRI | Plus Fresnel | Stage / Studio |
| ARRI | ARRI Junior 1000 Plus Fresnel | |
| ARRI | Studio Fresnel | Stage / Studio |
| ARRI | ARRI Studio 1000 Theatre Fresnel | |
| Altman Lighting | Proline 1000S-SM | Stage / Studio |
| Altman Lighting | Proline 1000L-HM | Stage / Studio |
| Altman Lighting | Proline 1000S-PO | Stage / Studio |
| Altman Lighting | Proline 1000L-SM | Stage / Studio |
| Altman Lighting | Proline 1000S | Stage / Studio |
| Altman Lighting | Proline 1000S-HM | Stage / Studio |
| Altman Lighting | Die Cast Fresnal | |
| Altman Lighting | 1000S 7-Fresnel | |
| Altman Lighting | 1000L 5-Fresnel | |
| Altman Lighting | 1-KAF-MBP 6-Die Case Studio Fresnel | Stage / Studio |
| Altman Lighting | Proline 1000L | Stage / Studio |
| Mole Richardson | 6" Baby Solarspot | |
| Mole Richardson | 2831 | |
| RDS | RP40 | |
| Strand Lighting | Studio 1-KW | Stage / Studio |
| Strand Lighting | Bambino 1-KW | Stage / Studio |
