EGX ANSI Code

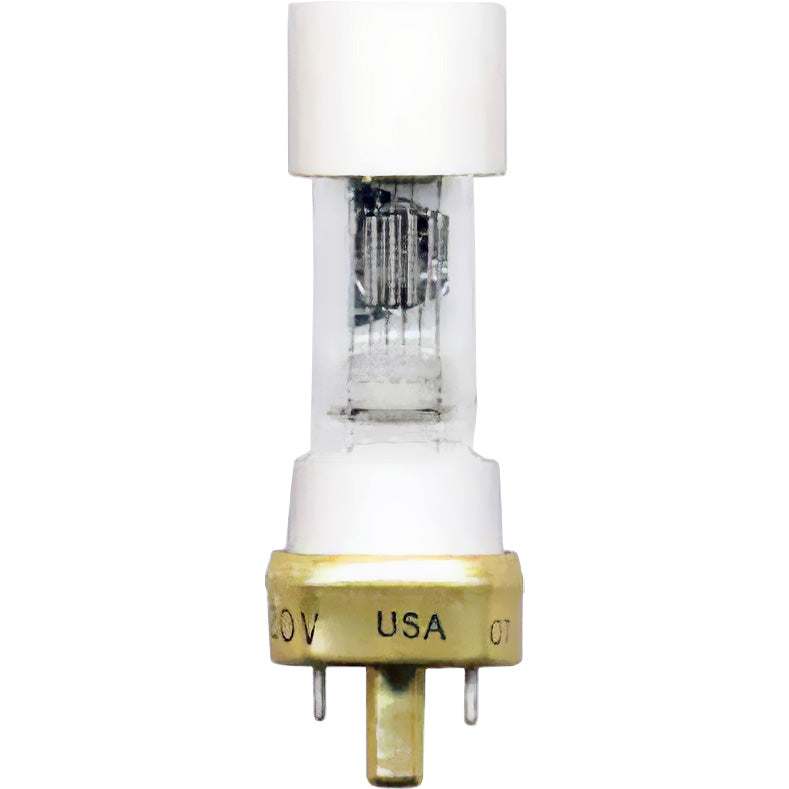

EGX ANSI is a T6 lamp with a G17t-A24 base operating at 500 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EGX lamps.
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 120 |
| Watts | 500 |
Photometrics | |
| Color Temperature | 3150 |
|---|---|
| Light Center Length (LCL) | 1 3/4 |
Physical Characteristics | |
| Base | G17t-A24 |
|---|---|
| Bulb Shape | T6 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | EGX |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T6 Shape | |
 | |
| Diameter Designation | 6/8" |
|---|---|
| Glass Diameter | 3/4" (0.75") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-500-31X | ||
| Canimpex | 120-500-31X | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Recordak Startech | |
| Eastman Kodak | Recordak MPG-H | |
| Eastman Kodak | Recordak MPG-TH | |
| Eastman Kodak | Recordak MPG-TL | |
| Eastman Kodak | Recordak Jacket Reader Filler 2 | |
| Eastman Kodak | Recordak Motormatic MPG | |
| Eastman Kodak | Recordak PR-1 (w/ Heat Shield) | |
| Eastman Kodak | Recordak Microstar PR-1 | |
| Eastman Kodak | Recordak Miracode 2 | |
| Eastman Kodak | Recordak Microstar (newer model) | |
EGX may also be listed as: | |||
| 02100 WIKO | 031293021007 EIKO | 1000284 USHIO | 3129302100 WIKO |
| 37902 GENERAL-ELECTRIC | EGX ANSI | EGX ASA | EGX EIKO |
| EGX INTERLIGHT | EGX KONDO | EGX LAMPTECH | EGX SYLVANIA |
| EGX USHIO | EGX WIKO | EGX-120 VOLT ANSI | EGX-120 VOLT ASA |
| EGX-120V ANSI | EGX-120V ASA | EGX-120V-500W | EGX-120V-500W ANSI |
| EGX-120V-500W ASA | EGX-120V-500W-G17Q-T6-C13D-CERAMIC-TOP-3150K-200H-BDTH-3-5/8MOL-1-3/4LCL-Q-SLIDE-PROJECTOR-PROXIMITY-REFLECTOR | EGX-120V/120V/500W/G17T ANSI | EGX/120V GENERAL-ELECTRIC |
| EGX/120V/500W/G17T ANSI | H/120V/500W/G17T-A24/T6/C13D/200H | H/120V/500W/G17T-A24/T6/C13D/200H/EGX | H/120V/500W/G17T/T6/C13D/200H |
| H/120V/500W/G17T/T6/C13D/200H/EGX | JCS120V-500W/200H USHIO | JCS120V-500W/200H/G17T7 USHIO | JCS120V-500W/EGX USHIO |
| JCS120V-500W/G17T/200H USHIO | SPQ500T6G17T-A24C13D120V-EGX | SPQ500T6G17T-A24CL120V-EGX | SPQ500T6G17T4C13D120V-EGX |
| SPQ500T6G17T4CL120V-EGX | |||
