EGY ANSI Code
EGY ANSI is a T7 lamp with a GX6.35 base operating at 1000 watts and 250 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EGY lamps.

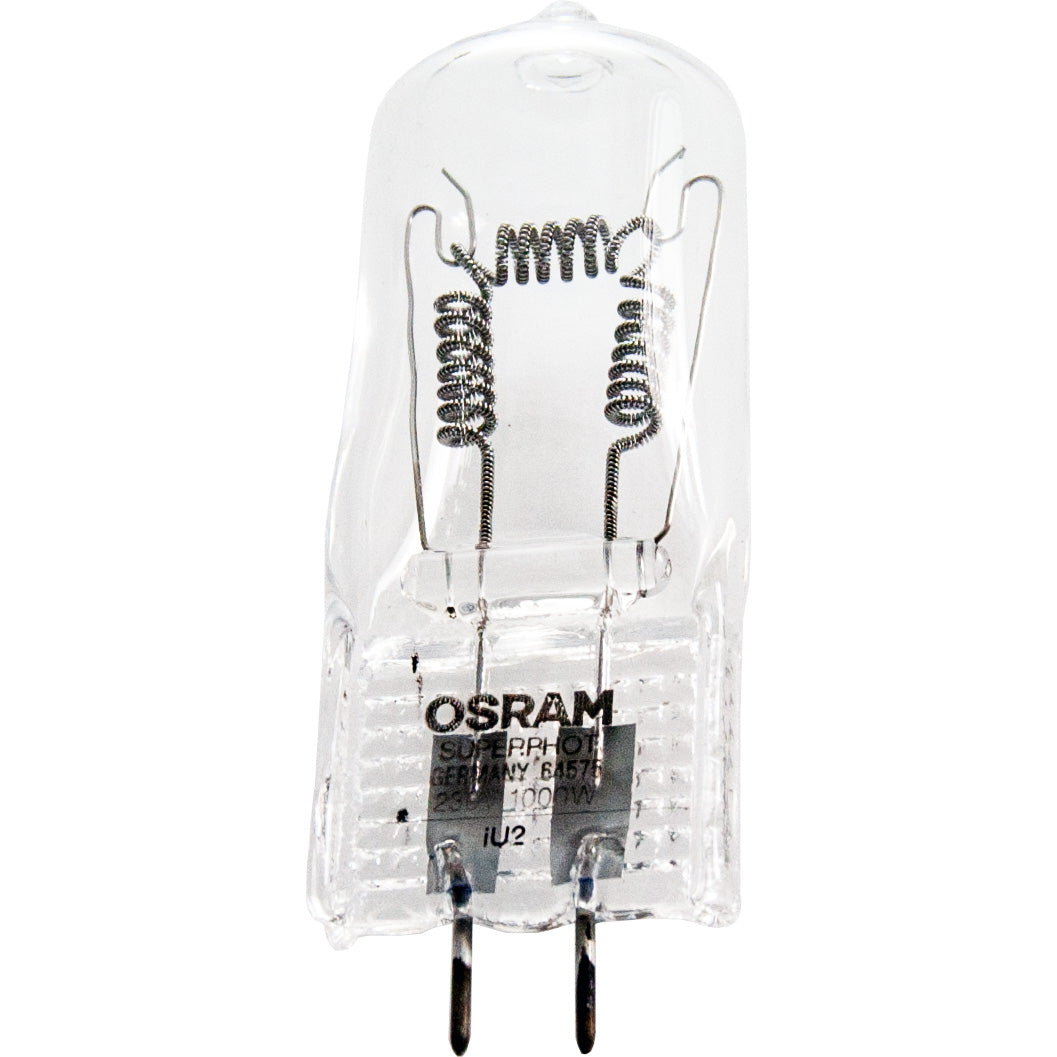

EGY Photograph |
 |
Electrical Specifications | |
| Amps | 4 |
|---|---|
| Volts | 250 |
| Watts | 1000 |
Photometrics | |
| Candlepower | 2500 |
|---|---|
| Color Temperature | 3400 |
| Light Center Length (LCL) | 1 5/12 |
| Lumens | 33000 |
Physical Characteristics | |
| Base | GX6.35 |
|---|---|
| Bulb Shape | T7 |
| Filament | CC-2 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | EGY |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T7 Shape | |
 | |
| Diameter Designation | 7/8" |
|---|---|
| Glass Diameter | 7/8" (0.875") |
| Shape Code | T |
| Shape Classification | Tubular |
GX6.35 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 24-225-24 | ||
| Canimpex | 24-225-24 | ||
| Orbitec | 130240 | H 164575 | |
Equipment Used In | ||
| Brand | Model | Type |
| Goetschmann | G-8585 | |
