EHA ANSI Code

EHA ANSI is a T6 lamp with a GY9.5 base operating at 500 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Proximity Reflector finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHA lamps.

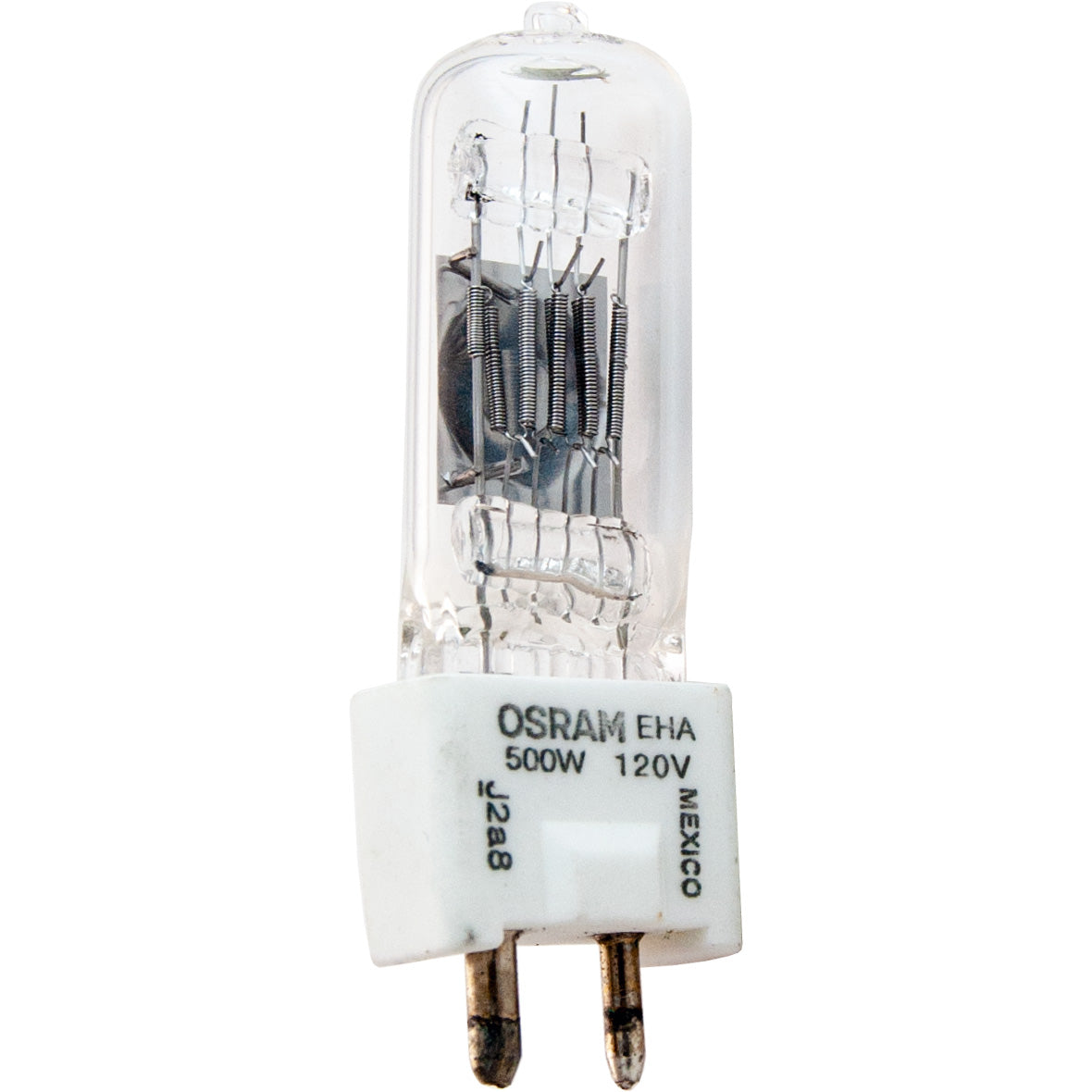

EHA Photograph

EHA

Electrical Specifications

Amps4.35
Volts120
Watts500

Photometrics

Candlepower950
Color Temperature3300
Light Center Length (LCL)1 7/16
Lumens11900

Physical Characteristics

BaseGY9.5
Bulb ShapeT6
FilamentC-13D
FinishProximity Reflector
Max Overall Length (MOL)3

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours50

General Information
Lamp CodeEHA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

GY9.5 Base

GY9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
3M78-8000-5414-6
Eiko02120EHA
General Electric37527EHA
Grainger4V244
Imported Lamp Code64705
Osram Sylvania54585EHA
Philips316414EHA 500W 120V 24PK
Philips5968
Sunlite70075EHA
Ushio1000285EHA, JCS120V-500W
Kahoku Lighting Solutions (KLS)62030-KLSEHA Japan
Norman LampsEHAEHA
Microlites120-500-29
Canimpex120-500-29

Equipment Used In

BrandModelType
3M Model 523 (Standard)
3M Model 66 (serials over 66AR100001)
3M Model 66 (over 66AR100001)
3M 221-AMC (serials over 170861)
3M 121-AG (serials over 105083)
3M Model 66-AR (serials over 100001)
3M 221-AME (serials over 165716)
3M 221-AMD (serials over 160743)
3M Model 66-AG
3M Model 121
3M 66-ART
3M Standard 121
3M Model 566
3M Standard 523
Dymat Photomatrix 500
Dymat Photomatrix 501
Marshall-Smith Monitor
Microform Communications Monitor
Photomatrix 501
Photomatrix 500
Program Sistems (Programmi and Sistemmi Luce) Dancer Scan Stage / Studio
