EHC ANSI Code

EHC ANSI is a T4 lamp with a G9.5 base operating at 500 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHC lamps.

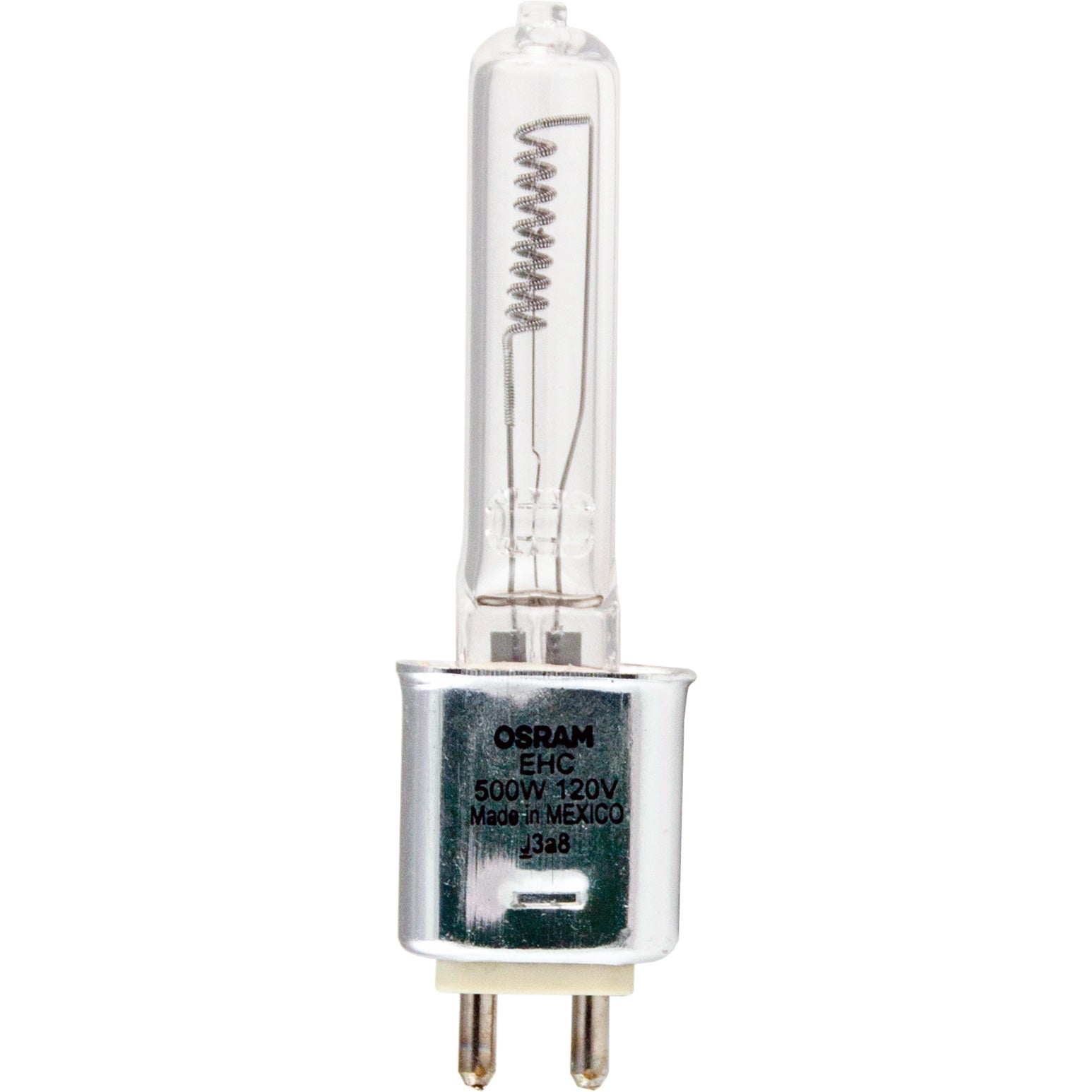

EHC Photograph

EHC

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower1000
Color Temperature3150
Light Center Length (LCL)2 3/8
Lumens13000

Physical Characteristics

BaseG9.5
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionAny
Life Hours200

General Information
Lamp CodeEHC
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Colortran176-029
Colortran176-030
Colortran176-101
ColortranBS5-31/1
ColortranBS5-31/1F
ColortranBS5-32/1
ColortranBS5-32/1F
General Electric37082EHC-Q500/5CL
LowelEHC
Osram Sylvania54506EHC/EHB
Sunlite70076EHC/EHB
Ushio1000286EHC/EHB, JCV120V-500WCM
Green Energy Lighting (GELCO)60659-WBEHC/EHB
Microlites120-500-28
Canimpex120-500-28

Equipment Used In

BrandModelType
Altman Lighting 3.5Q-12
Altman Lighting 3.5Q Stage / Studio
Altman Lighting 3.5Q-5
Altman Lighting 3.5Q-8-MT Stage / Studio
Altman Lighting 3.5Q-5-MT Stage / Studio
Altman Lighting 3.5Q-6
Altman Lighting 3.5Q-MT Stage / Studio
Altman Lighting 360Q Old Style Reflector Stage / Studio
Altman Lighting 3.5Q-10
Altman Lighting 3.5Q-8
Altman Lighting 3.5Q-10-MT Stage / Studio
Altman Lighting 1KL Stage / Studio
Altman Lighting 3.5Q-6-MT Stage / Studio
Colortran 650 Stage / Studio
Colortran 5/50 Stage / Studio
Colortran 212 Stage / Studio
L&E Axial Ellipsoidals Stage / Studio
L&E 4-1/2 Fresnel Spotlight Stage / Studio
L&E AQ-61-22 Stage / Studio
Lowel Rifa-Lite LC-55 Stage / Studio
Lowel DP Stage / Studio
Strand Lighting Leko 3 Stage / Studio
Strand Lighting Century 2204 Stage / Studio
Strand Lighting Lekolite Stage / Studio
