EHD ANSI Code

EHD ANSI is a T4 lamp with a G9.5 base operating at 500 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Clear finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHD lamps.

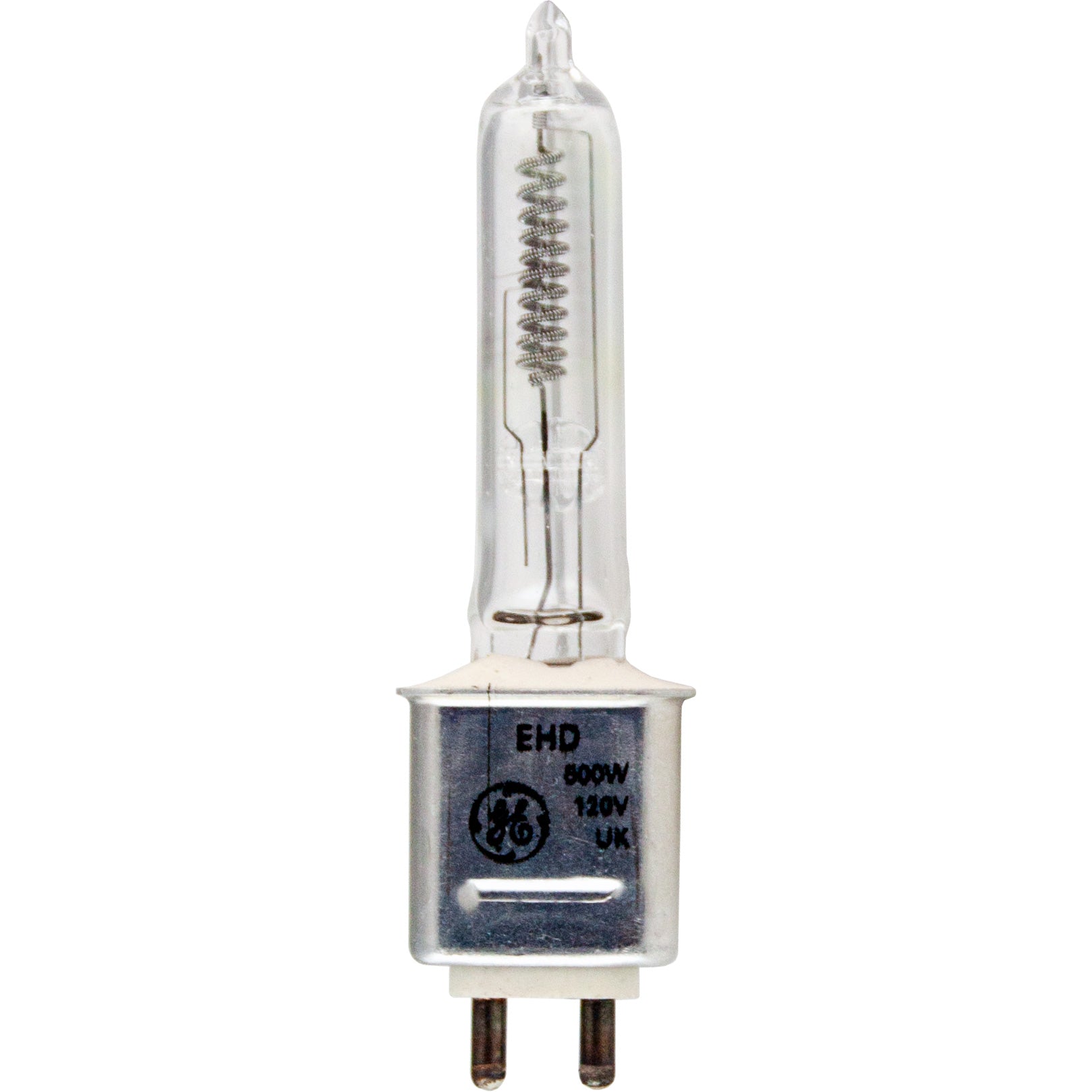

EHD Photograph

EHD

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower800
Color Temperature2900
Light Center Length (LCL)2 3/8
Lumens10000

Physical Characteristics

BaseG9.5
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionAny
Life Hours2000

General Information
Lamp CodeEHD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762210EHD
Colortran176-031
Colortran176-032
ColortranBS5-30/1
ColortranBS5-30/1F
General Electric37083EHD-Q500CL/TP
General Electric39768EHD-Q500CL/TP
Grainger5V592
Osram Sylvania54508EHD Q500CL/TP QTZ
Philips269712500Q/CL EHD 120V
Sunlite70080EHD
Ushio1000287EHD, JCV120V-500WBH
Kahoku Lighting Solutions (KLS)60577-KLSEHD Japan
Green Energy Lighting (GELCO)60577-WBEHD
Standard Products11553EHD
Microlites120-500-28D
Canimpex120-500-28D

Equipment Used In

BrandModelType
Altman Lighting 360Q-6-X-9 Stage / Studio
Altman Lighting 360Q-4.5-X-6.5 Stage / Studio
Altman Lighting 360Q-X-16 Stage / Studio
Altman Lighting 360Q-6-X-12 Stage / Studio
Altman Lighting 3.5Q-8
Altman Lighting 3.5Q-10-MT Stage / Studio
Altman Lighting 360Q-6-X-16 Stage / Studio
Altman Lighting Baby Zoom 2-Pin Stage / Studio
Altman Lighting 1KL6-50
Altman Lighting 3.5Q Stage / Studio
Altman Lighting 360Q-X-12 Stage / Studio
Altman Lighting Baby Zoom 4.5 3060-Z-MT Stage / Studio
Altman Lighting 1KL6-12
Altman Lighting 1KL6 Stage / Studio
Altman Lighting 1KL6-2040Z
Altman Lighting Baby Zoom 4.5 2550-Z Stage / Studio
Altman Lighting 3.5Q-6
Altman Lighting 3.5Q-12
Altman Lighting 1KL8-1424Z
Altman Lighting Baby Zoom 4.5 1530-Z Stage / Studio
Altman Lighting 1KL6-40
Altman Lighting 1KL8 Stage / Studio
Altman Lighting 3.5Q-5-MT Stage / Studio
Altman Lighting 1KL8-10
Altman Lighting 360Q-6-X-22 Stage / Studio
Altman Lighting 3.5Q-10
Altman Lighting 1KL Stage / Studio
Altman Lighting 3.5Q-5
Altman Lighting 360Q-X-22 Stage / Studio
Altman Lighting 1KL6-20
Altman Lighting 3.5Q-8-MT Stage / Studio
Altman Lighting 3.5Q-MT Stage / Studio
Altman Lighting 360Q Old Style Reflector Stage / Studio
Altman Lighting 1KL6-30
Altman Lighting 3.5Q-6-MT Stage / Studio
Altman Lighting 1KL8-5 Stage / Studio
Colortran 5/50 Stage / Studio
Colortran 212 Stage / Studio
Colortran 213 Stage / Studio
Colortran 650 Stage / Studio
Kliegl Brothers 1554 Stage / Studio
Kliegl Brothers 1552 Stage / Studio
Kliegl Brothers 1355/8 Stage / Studio
Kliegl Brothers 1355-W Stage / Studio
Kliegl Brothers 1550/8 Stage / Studio
Kliegl Brothers Silhouette Stage / Studio
Kliegl Brothers Aimslite Stage / Studio
Kliegl Brothers 1555 Stage / Studio
Kliegl Brothers 1553 Stage / Studio
Kliegl Brothers 1551 Stage / Studio
L&E AQ-61-22 Stage / Studio
L&E 6 Ellipsoidals Fixed Focus Zoom Stage / Studio
L&E Axial Ellipsoidals Stage / Studio
Lowel Rifa-Lite LC-55 Stage / Studio
Lowel DP Stage / Studio
Strand Lighting Lekolight 500W Ellipsoidal Stage / Studio
Strand Lighting Century 2114 Stage / Studio
Strand Lighting Century 2212 Stage / Studio
Strand Lighting Lekolite Stage / Studio
Strand Lighting Century 2124 Stage / Studio
Strand Lighting Century 2213 Stage / Studio
Strand Lighting Century 2112 Stage / Studio
Strand Lighting Century 2204 Stage / Studio
Strand Lighting Century 2209 Stage / Studio
Strand Lighting Century 2343 Stage / Studio
Strand Lighting Century 2217 Stage / Studio
Strand Lighting Century 2216 Stage / Studio
Strand Lighting Century 2113 Stage / Studio
Strand Lighting Century 2123 Stage / Studio
Strand Lighting Cantata Stage / Studio
Strand Lighting Century 2111 Stage / Studio
Strand Lighting Century 2344 Stage / Studio
Times Square Lighting Q6Z Stage / Studio
Times Square Lighting Q6E6X Stage / Studio
Times Square Lighting Q6X Stage / Studio
Times Square Lighting Q8EPC
Times Square Lighting Q6V Stage / Studio
