EHE ANSI Code

EHE ANSI is a T11.5 lamp with a PG22 base operating at 100 watts and 12 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHE lamps.

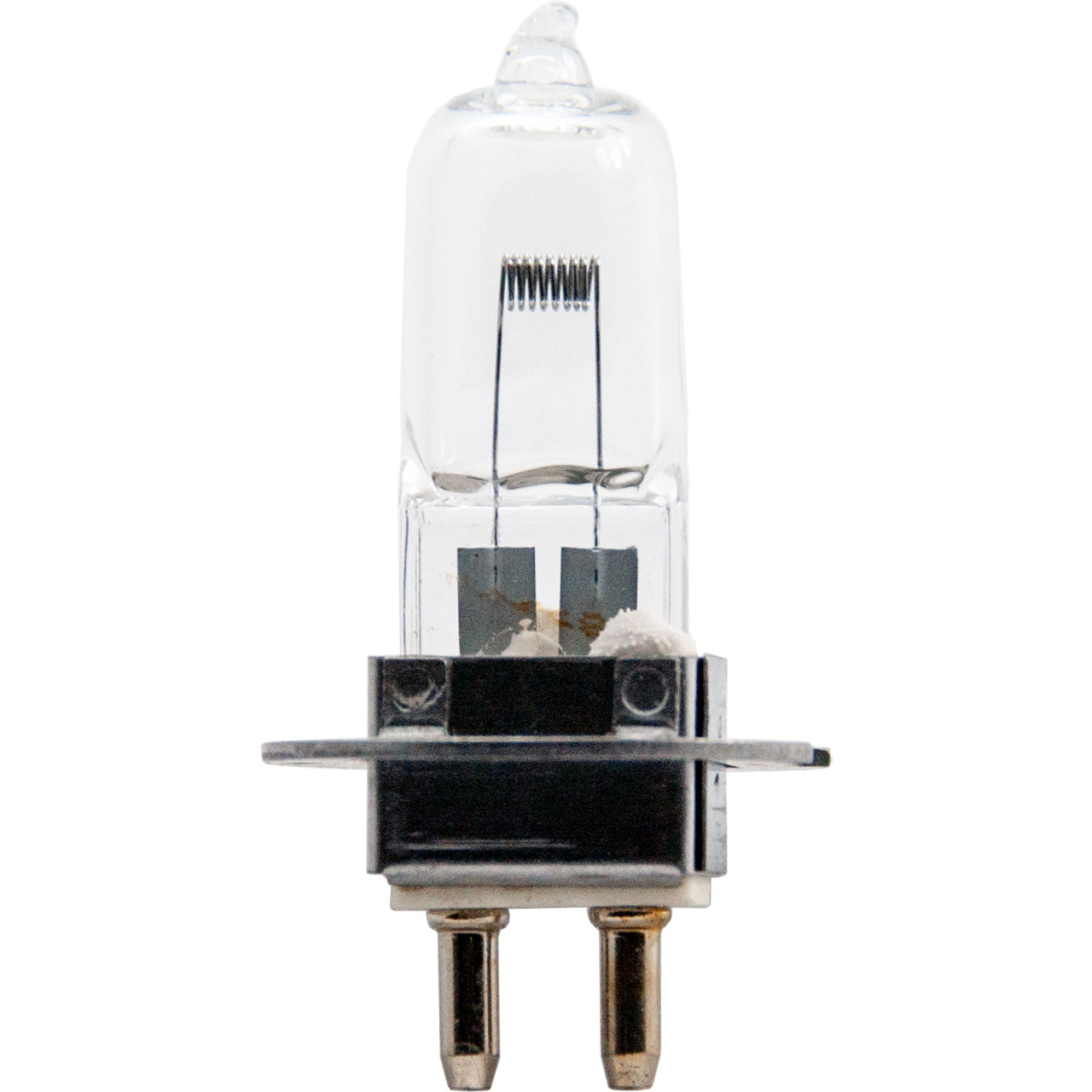

EHE Photograph

EHE

Electrical Specifications

Amps8.33
Volts12
Watts100

Photometrics

Candlepower250
Color Temperature3400
Light Center Length (LCL)18mm
Lumens3200

Physical Characteristics

BasePG22
Bulb ShapeT11.5
FilamentFC-6
FinishClear
Max Overall Length (MOL)48mm

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeEHE
Code TypeANSI

FC-6 Filament

FC-6
Coil TypeFC - Flat Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Osram Sylvania54038EHE 64626 HLX
Philips6839C
Ushio8000219EHE
Zeiss3800-75-1020
Microlites12-100-60
Canimpex12-100-60

Equipment Used In

BrandModelType
Zeiss Operation Microscope 1H
Zeiss Operation Microscope 6CH
Zeiss Operation Microscope 6SH
Zeiss 3800-75-1020 Microscope

EHE may also be listed as:
006765 OSRAM04613554038 SYLVANIA12V/100W RILUMA12V/100W/MIT-JUSTIERSOCKEL
12V/100W/MIT-JUSTIERSOCKEL RILUMA12V/100W/MIT-JUSTLERSOCKEL12V/100W/MIT-JUSTLERSOCKEL RILUMA12V/100W/PG22 RILUMA
12V/100W/PG22/50H12V/100W/PG22/T3.512V/100W/PG22/T3.5/50H12V/100W/PG22/TUBE
12V/100W/PG22/TUBE/50H12V/100W/PG22D12V/100W/PG22D/50H12V/100W/PG22D/T3.5
12V/100W/PG22D/T3.5/50H12V/100W/PG22D/TUBE12V/100W/PG22D/TUBE/50H130242 NARVA
130242 ORBITEC130242-H164626-PG22-12X48-12V-EHE-100W ORBITEC130242/12V/100W NARVA130242/12V/100W ORBITEC
130242/12V/100W/PG22D ORBITEC1492 BLV1492/EHE1H ZEISS
25126 SYLVANIA31882-435566-9 PHILIPS38-00-75 ZEISS
3800-75-10203800-75-1020 BULB-DIRECT3800-75-1020 USHIO3800-75-1020/12V/100W ZEISS
3800-75-1020/12VOLT/100WATT ZEISS380075-1020 ZEISS3875-1020 ZEISS38751020
4050300006765 OSRAM534050O MICROLAMP5403054032
5403854038 OSRAM54038 SYLVANIA5628-2 GUERRA
6435669 OSRAM6462664626 GUERRA64626 LAMPTECH
64626 OSRAM64626 SYLVANIA64626 USHIO64626 WOTAN
64626-HLX64626-HLX OSRAM64626-HLX SYLVANIA64626-HLX WOTAN
64626-HLX-12 OSRAM64626-HLX-12V OSRAM64626-HLX-EHE64626-HLX-EHE BULB-DIRECT
64626-HLX-EHE-A1/45-12V-100W-PG22-3600LM-50-L-48-D-11.564626-HLX-EHE-A1/45-12V-100W-PG22-3600LM-50-L-48-D-11.5 OSRAM64626-XENON OSRAM64626-XENON-12 OSRAM
64626-XENON-12V OSRAM64626-XENOPHOT OSRAM64626-XENOPHOT-12VOLT OSRAM64626/12V-100W-PG22-EHE LAMPTECH
64626/12V/100W64626/12V/100W OSRAM64626/6839C-PHILIPS OSRAM64626HLX-EHE OSRAM
64626HLX/12V/100W OSRAM64626HLX100W12V/PG22EHE OSRAM6838C PHILIPS6838C/A1-45-LIF PHILIPS
6839-C PHILIPS6839C6839C ALTERNATYWA6839C BULB-DIRECT
6839C LAMPTECH6839C-100W-PG22-12V-1CT/10X10F6839C-100W-PG22-12V-1CT/10X10F PHILIPS6839C/12V-100W-PG22D LAMPTECH
6839C/12V/100W6839C/12V/100W/PG22D/T11.5MM/18MMLCL/48MMMOL/50H PHILIPS6839C/12V/100W/PG22D/T3.5/18MMLCL/48MMMOL/50H PHILIPS6839C/64626-OSRAM PHILIPS
6839C/EHE-ANSI PHILIPS6839C/EHE/ETA-ANSI PHILIPS6CH ZEISS6SH ZEISS
8000219 USHIO844409004234 HIKARI9238-701-17100 PHILIPS942205
94220699-71102 EFFNER99-71102 FAROMED99-X-435 EFFNER
99-X-435 FAROMEDA-178A-178 RILUMAA1-045 ATLAS
A1-045 LIFA1-045 THORNA1-45A1-45 ATLAS
A1-45 LIFA1-45 THORNA1-45-12V-100W-PG22D LIFA1-45/12V/100W
A1-45/12V/100W ATLASA1-45/12V/100W LIFA1-45/12V/100W THORNA1-45/6838C-PHILIPS LIF
A1/045A1/45-12V LIFA1/45-12V-100W-PG22D-T11.5-FC6-CLEAR-3000L-3200K-50H-VBD-45MMMOL-18MMLCL-QAU500-OLYMPUS
BW-EHECL70037 CARLEY-LAMPSEHEEHE ANSI
EHE ASAEHE BULB-DIRECTEHE HIKARIEHE INTERLIGHT
EHE ORBITECEHE OSRAMEHE RILUMAEHE ZEISS
EHE-12 ANSIEHE-12 ASAEHE-12VEHE-12V ANSI
EHE-12V ASAEHE-12V-100WEHE-12V-100W ANSIEHE-12V-100W ASA
EHE-12V-100W-PG22D-T4-FC6-CLEAR-3200L-3400K-50H-ANY-48MMMOL-18MMLCL-Q-PROJECTOR-SOURCE-4.2X2.3MMEHE-12V/12V/100W/PG22D ANSIEHE-12VOLT ANSIEHE-12VOLT ASA
EHE-64626-HLX OSRAMEHE-64626-HLX-12VEHE-64626-HLX-12V/04613554038 SYLVANIAEHE-64626-HLX-12V/54038 SYLVANIA
EHE-ETA ANSIEHE-ETA ASAEHE/12EHE/12V/100W OSRAM
EHE/12V/100W RILUMAEHE/12V/100W/PG22 RILUMAEHE/12V/100W/PG22D ANSIEHE/64626/HLX/12V/100W OSRAM
EHE/64626HLX/12V/100WEHE/6839C-PHILIPS ANSIEHE/ETAEHE/ETA INTERLIGHT
EHE/ETA/6839C-PHILIPS ANSIEHE/ETA/A1-45 ANSIEHE/ETA/A1-45/12V/100W ANSIEHE/ETA/A1-45/12V/100W/PG22D ANSI
H-164626 ORBITECH/12V/100W/PG22/11MMX48MM/50H/64626HLX OSRAMH/12V/100W/PG22/11MMX48MM/50H/JQ-122 AKKUH/12V/100W/PG22/T11.5MM/50H
H/12V/100W/PG22/T11.5MM/C6/50HH/12V/100W/PG22/T11MM/FC6/50HH/12V/100W/PG22/T3.5/18MMLCL/C6H/12V/100W/PG22/T3.5/18MMLCL/C6/50H
H/12V/100W/PG22/T3.5/50HH/12V/100W/PG22/T3.5/C6/50HH/12V/100W/PG22/TUBE/FC6/50HH/12V/100W/PG22D/T11.5MM/50H
H/12V/100W/PG22D/T11.5MM/C6/50HH/12V/100W/PG22D/T3.5/18MMLCL/48MMMOL/50HH/12V/100W/PG22D/T3.5/18MMLCL/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/T3.5/18MMLCL/C6
H/12V/100W/PG22D/T3.5/18MMLCL/C6/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/T3.5/48MMMOLH/12V/100W/PG22D/T3.5/50HH/12V/100W/PG22D/T3.5/50H/A1-45-12V-100W-PG22D LIF
H/12V/100W/PG22D/T3.5/C6/50HH/12V/100W/PG22D/T3.5/C6/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/T3.75/FC6/50HH/12V/100W/PG22D/T3.75/FC6/50H/EHE
H/12V/100W/PG22D/TUBE/18MMLCL/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/TUBE/18MMLCL/C6/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/TUBE/50HH/12V/100W/PG22D/TUBE/50H/A1-45-12V-100W-PG22D LIF
H/12V/100W/PG22D/TUBE/C6/50H/A1-45-12V-100W-PG22D LIFH/12V/100W/PG22D/TUBE/FC6/50HH164626-PG22-12X48-12V-EHE-100W ORBITECH164626/12V/100W ORBITEC
H164626/12V/100W/PG22D ORBITECH217 HYBECHALOGEN/12V/100W/PG22/11MMX48MM/50H/JQ-122 AKKUHALOGEN/12V/100W/PG22/4MMX48MM/JQ-122 AKKU
HLX-64626 OSRAMHLX-64626/12V/100W OSRAMHLX64626/12V/100W/PG22 OSRAMJC/12V/100W/PG22
JC/12V/100W/PG22/FC6JC12V-100W-PG22 HIKARIJC12V-100W-PG22-3000-50-C-BAR-6 HIKARIJC12V-100W-PG22-3000L-50H-CBAR6 HIKARI
JQ-122 AKKUJQ-122/HALOGEN/12V/100W/PG22/11MMX48MM/50H AKKUJQ-122/HALOGEN/12V/100W/PG22/4MMX48MM AKKUM-01010 HIKARI
M-01010-JC-12V-100W-PG22M01010-EHE-JC-12V-100W-PG22-3000-50-C-BAR-6-OSRAM-HLX64626-GUERRA-5628/2 HIKARIM01010-EHE-JC-12V-100W-PG22-3000L-50H-CBAR6-OSRAM-HLX64626-GUERRA-5628/2 HIKARIM01010-JC-12V-100W-PG22-3000-50-C-BAR-6-844409004234 HIKARI
M01010-JC-12V-100W-PG22-3000L-50H-CBAR6-844409004234 HIKARIM01010/12V/100W HIKARIMARK-DL EUMIGMZ38.00.75.10.20 BAILEY
OLYMPUS-AU500OPERATION-MICROSCOPE-1H ZEISSOPERATION-MICROSCOPE-6CH ZEISSOPERATION-MICROSCOPE-6SH ZEISS
OSRAMHLX64626-GUERRA-5628/2 HIKARIPG22-12X48-12V-100W-EHE/H164626/130242 ORBITECPG22-12X48-12V-EHE-100W ORBITECPG22-12X48MM-12V-100W-EHE/H164626/130242 ORBITEC
PN-160 RILUMAPN-160/12V/100W RILUMAPN-160/12V/100W/PG22 RILUMASM-64626 OSRAM
SM-64626 USHIOSPQ100T3.75PG22DCL-12VSPQ100T3.75PG22DCL12V-EHESPQ100T3.75PG22DFC6-12V
SPQ100T3.75PG22DFC612V-EHETYPE-11 RILUMATYPE-11/12V/100W RILUMATYPE-11/12V/100W/PG22 RILUMA
