EHF ANSI Code

EHF ANSI is a T5 lamp with a G9.5 base operating at 750 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHF lamps.

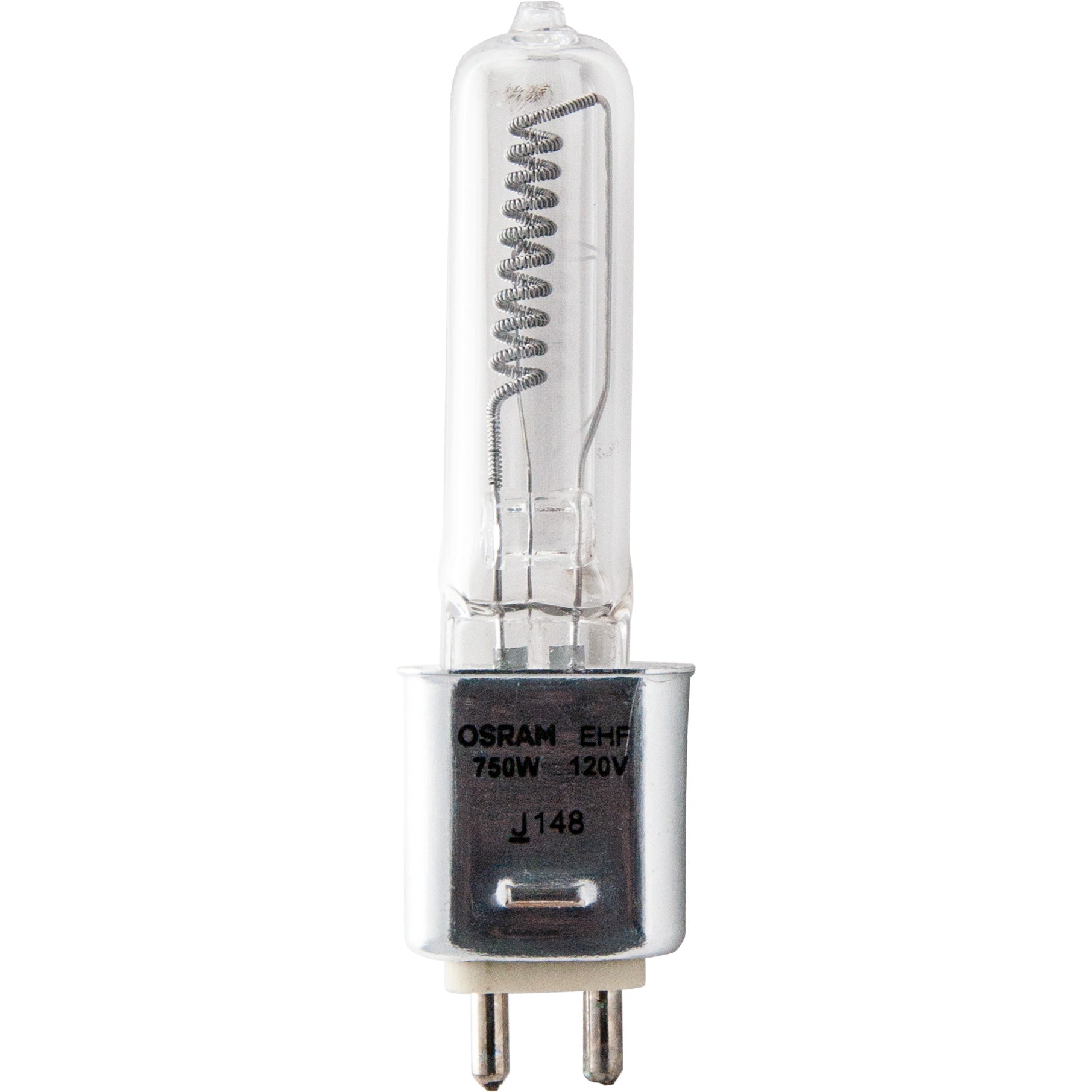

EHF Photograph

EHF

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Candlepower1600
Color Temperature3200
Light Center Length (LCL)60.5mm
Lumens20000

Physical Characteristics

BaseG9.5
Bulb ShapeT5
FilamentCC-8
FinishClear
Max Overall Length (MOL)101mm

Operating Characteristics

Burn PositionAny
Life Hours300

General Information
Lamp CodeEHF
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T5 Shape

T5
Diameter Designation5/8"
Glass Diameter 5/8" (0.625")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

G9.5 Base

G9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite762215EHF
Colortran176-185
ColortranBS7-31/1
ColortranBS7-31/1F
Eiko02160EHF
General Electric37051EHF-Q750/4CL
General Electric39771EHF-Q750/4CL
General Electric88267EHF-Q750/4CL
LowelEHF
Osram Sylvania54510EHF
Sunlite70082EHF
Ushio1000288EHF, JCV120V-750WCH
Standard Products11554EHF
Microlites120-750-28F
Canimpex120-750-28F

Equipment Used In

BrandModelType
Altman Lighting 4.5-3060Z
Altman Lighting 4.5-2550Z
Altman Lighting 4.5-1530Z
Altman Lighting 1KL Stage / Studio
Altman Lighting 360Q Old Style Reflector Stage / Studio
Colortran 5/50 Stage / Studio
Kliegl Brothers 1355/8 Stage / Studio
Kliegl Brothers 1355-W Stage / Studio
Kliegl Brothers 1550/8 Stage / Studio
L&E Axial Ellipsoidals Stage / Studio
L&E AQ-61-22 Stage / Studio
Lowel Rifa-Lite LC-66 Stage / Studio
Lowel DP Stage / Studio
Strand Lighting Lekolite Stage / Studio
