EHV ANSI Code

EHV ANSI is a T4 lamp with a E11 base operating at 325 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHV lamps.

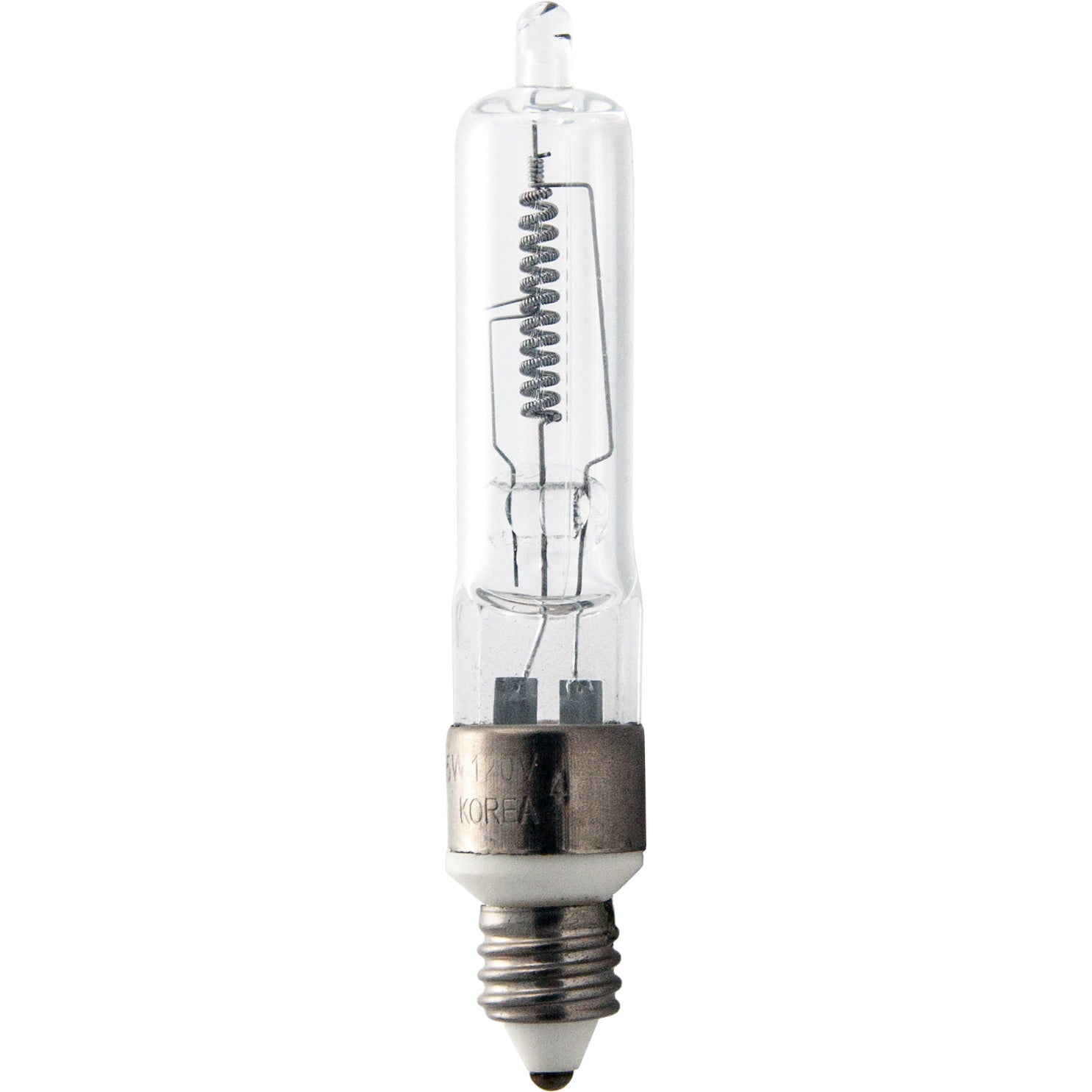

EHV Photograph

EHV

Electrical Specifications

Amps2.71
Volts120
Watts325

Photometrics

Candlepower620
Color Temperature3000
Light Center Length (LCL)1 5/8
Lumens7800

Physical Characteristics

BaseE11
Bulb ShapeT4
FilamentCC-8
FinishClear
Max Overall Length (MOL)3 1/6

Operating Characteristics

Burn PositionAny
Life Hours500

General Information
Lamp CodeEHV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

E11 Base

E11

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko15272EHV
Sunlite70086EHV
Ushio1000295EHV, JCV120V-325WBS
Microlites120-325-45V
Canimpex120-325-45V
