EHX ANSI Code

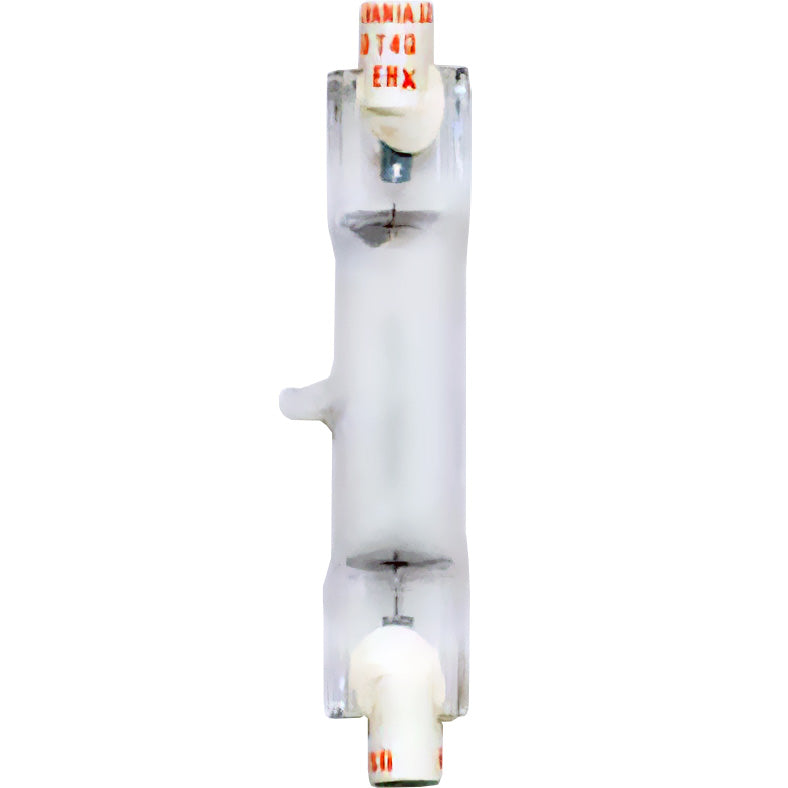

EHX ANSI is a T4 lamp with a R7s base operating at 300 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Frosted finish. The average rated life is 2000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EHX lamps.

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Color Temperature3000
Light Center Length (LCL)78.3
Lumens4700

Physical Characteristics

BaseR7s
Bulb ShapeT4
FilamentCC-8
FinishFrosted
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionHorizontal
Life Hours2000

General Information
Lamp CodeEHX
Code TypeANSI

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEHX

EHX may also be listed as:
300WATT-T4-QUARTZ SYLVANIA300WATT-T4-QUARTZ-120 VOLT-2000HOURS SYLVANIA300WATT-T4-QUARTZ-2000HOURS-120 VOLT300WATT-T4-QUARTZ-FROSTED
58941 SYLVANIA58941-0 SYLVANIAEHX ANSIEHX ASA
EHX INTERLIGHTEHX SYLVANIAEHX-120 VOLT ANSIEHX-120 VOLT ASA
EHX-120V ANSIEHX-120V ASAEHX-120V-300WEHX-120V-300W ANSI
EHX-120V-300W ASAEHX-120V-300W-R7S-T-4-C-8-EXT.-FROSTED-4700L-3000K-2000H-HOR-3-1/8MOL-Q-STAGE/STUDIO-SAME-AS-FROSTED-EHPEHX-120V-300W-R7S-T4-C8-EXTERNAL-FROSTED-4700L-3000K-2000H-HOR-3-1/8MOL-Q-STAGE/STUDIO-SAME-AS-FROSTED-EHPEHX-120V/120V/300W/R7S/77MMMOL ANSI
EHX/120V/300W/R7S ANSIEHX/120V/300W/R7S/77MMMOL ANSIEHX/58941 SYLVANIAEHX/58941-0 SYLVANIA
H/120V/300W/R7S/T4/FR/2000H/EHXQUARTZ-300WATT-T4QUARTZ-300WATT-T4-120 VOLT-2000HOURSQUARTZ-300WATT-T4-2000HOURS-120 VOLT
QUARTZ-300WATT-T4-CLEAR-120 VOLT-2000HOURSQUARTZ-300WATT-T4-FROSTEDSPQ300T4R7SFR120V-EHXSPQ300T4RSCFR120V-EHX
