EJA ANSI Code
EJA ANSI is a MR16 lamp with a GX5.3 base operating at 150 watts and 21 volts. It has a color temperature of 3350 Kelvin. It has a Open front finish. The average rated life is 40 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EJA lamps.

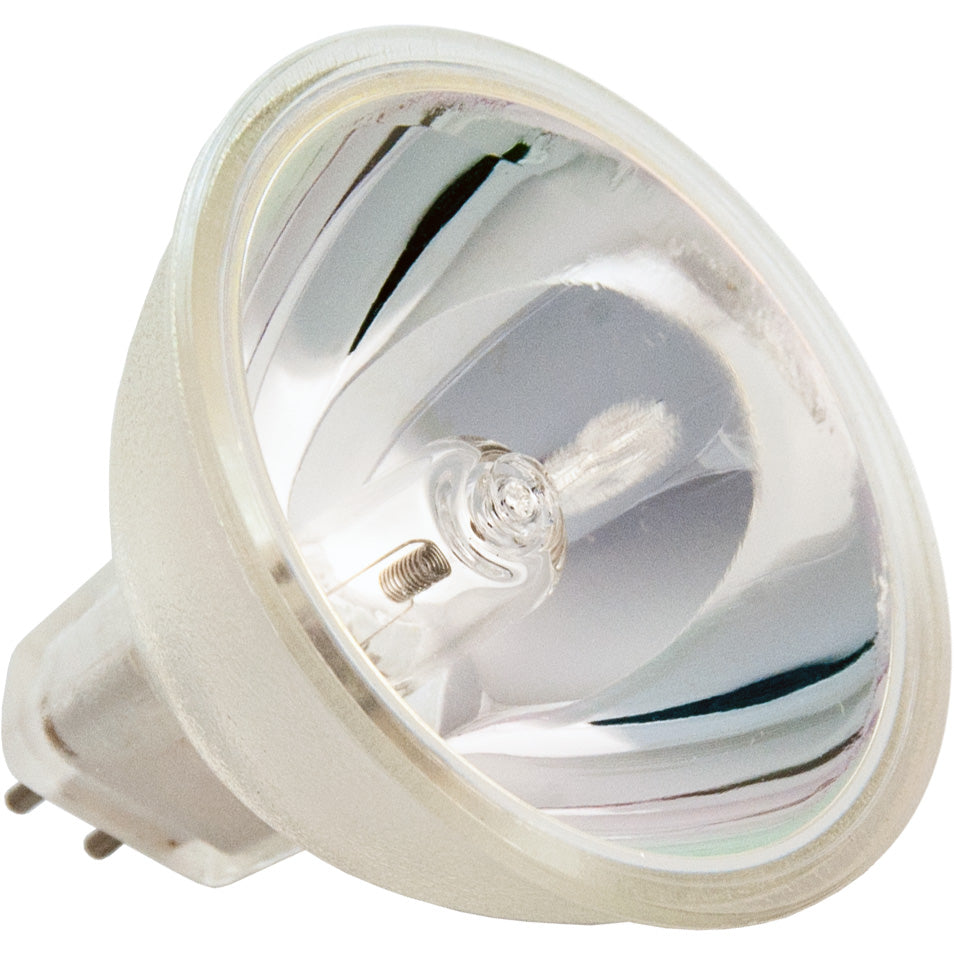

EJA Photograph |
 |
Electrical Specifications | |
| Amps | 7.14 |
|---|---|
| Volts | 21 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3350 |
|---|---|
| Lumens | 1200 lux |
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 40 |
General Information | |
| Lamp Code | EJA |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ACMI/Circon | FCB96 | ||
| Coby | EJA | ||
| Den-Mat | 3931EJA | ||
| EFOS | 3018 | ||
| Eiko | 10264 | EJA | |
| General Electric | 32882 | EJA | |
| Grainger | 6VM51 | ||
| Leitz | 902-063 | ||
| Lester A Dine | EJA | ||
| Nikon | 76223 | ||
| Olympus | 8-C404 | ||
| Osram Sylvania | 54753 | EJA | Available |
| Philips | 441428 | EJA 150W 21V | |
| Sci Can LZ | EJA | ||
| Storz | 103C | ||
| Sunlite | 70090 | EJA | |
| Ushio | 1000297 | EJA, JCR21V-150W | Available |
| Vivadent | 7210 | ||
| Welch Allyn | WA-04050 | EJA | |
| Wolf | N650012 | ||
| Wolf | N650013 | ||
| Kahoku Lighting Solutions (KLS) | 62032-KLS | EJA Japan | |
| Green Energy Lighting (GELCO) | 62032-GEL | EJA | |
| Rexim, LLC | RM-109 | ||
| Microlites | 21-150-23AR | ||
| Canimpex | 21-150-23AR | ||
| Orbitec | 130275 | H 63113 | |
Equipment Used In | ||
| Brand | Model | Type |
| ACMI/Circon | ALU 1B/2B | |
| AO Reichert | 1174 | |
| American Optical | 1174 | Medical |
| Baxter / V. Mueller | 150 Light Source | |
| Bolex | Super 8 Multimatic | 8mm Projector |
| Bolex | Multimatic | |
| Coby | Photo Curing | |
| Color | Sonic | |
| Cuda | Syc0029 | |
| Cuda | M-150 | |
| Den-Mat | 3931 Marathon II | Medical |
| Den-Mat | 3904 Visar II | |
| Den-Mat | Visar II | Medical |
| Den-Mat | Marathon II | |
| Den-Mat | Marathon I | |
| Dentsply / Caulk | 3018 | |
| EFOS | 3018 | Dental Lamp |
| Henke Sass Wolf | N-650012 | Medical |
| Henke Sass Wolf | N-650013 | Medical |
| Heurtier | Duoplay 42 | |
| Heurtier | ST-42 Stereo | |
| Heurtier | Stereo 42 | |
| Karl Storz | 103-C | Medical |
| Leitz | Fiber Optic Light Source | |
| Leitz | 902-063 | |
| Leitz | Comparison Macroscope | |
| Lester A Dine | Oral Scan | |
| Medical Illumination | Centura | |
| Nikon | Fiber Optic Instrument | |
| Olympus | 8-C404 | |
| Olympus | Fiberoptic Illuminator | |
| Olympus | BHTU | |
| Olympus | OL8-C404 | |
| Olympus | BHT | |
| Paillard | Bolex | |
| Paillard | Multimatic | |
| Schott-Fostec | A20500.1 ACE I Fiber Optic | Microscope |
| Sci Can LZ | Dual Lux | |
| Sci Can LZ | Dual Lux 3 Curing Light | |
| Sci Can LZ | Dual Lux Curing Light | |
| Sci Can LZ | Dual Lux 3 | |
| Sony | 20/20 Carry Cam | |
| Sunoptics | Cuda C150 | |
| Sunoptics | Cuda HLS150T | |
| Sunoptics | Cuda MD150T | |
| Unitron | Fiber Optic Power Supply | |
| Unitron | UN-16034 | Microscope |
| Unitron | Comp Micro | |
| Unitron | Cp6 Comparison Proj | |
| Vivadent | Heliomat (multi & single function) | Medical |
| Vivadent | Heliomat Single Function (USA) | |
| Vivadent | Heliomat Single Function B | |
| Welch Allyn | LX-150 Light Source 45250/RL-100 | |
| Welch Allyn | 65000 | |
| Welch Allyn | LX-150 Light Source 45250/RL-100 Rhinolaryngoscope | |
| Welch Allyn | 65001 | |
| Welch Allyn | FX-100 Flexible Sigmoidoscope | |
| Welch Allyn | FX-100 | |
| Wolf | 5118 | |
| Wolf | 5115 | |
| Wolf | 4046 | |
| Wolf | 5120 | |
| Wolf | 5150 | |
| Wolf | 2094 | |
