EJC ANSI Code

EJC ANSI is a T3 lamp with a R7s base operating at 800 watts and 240 volts. It has a color temperature of 3250 Kelvin. It has a Frosted finish. The average rated life is 100 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EJC lamps.

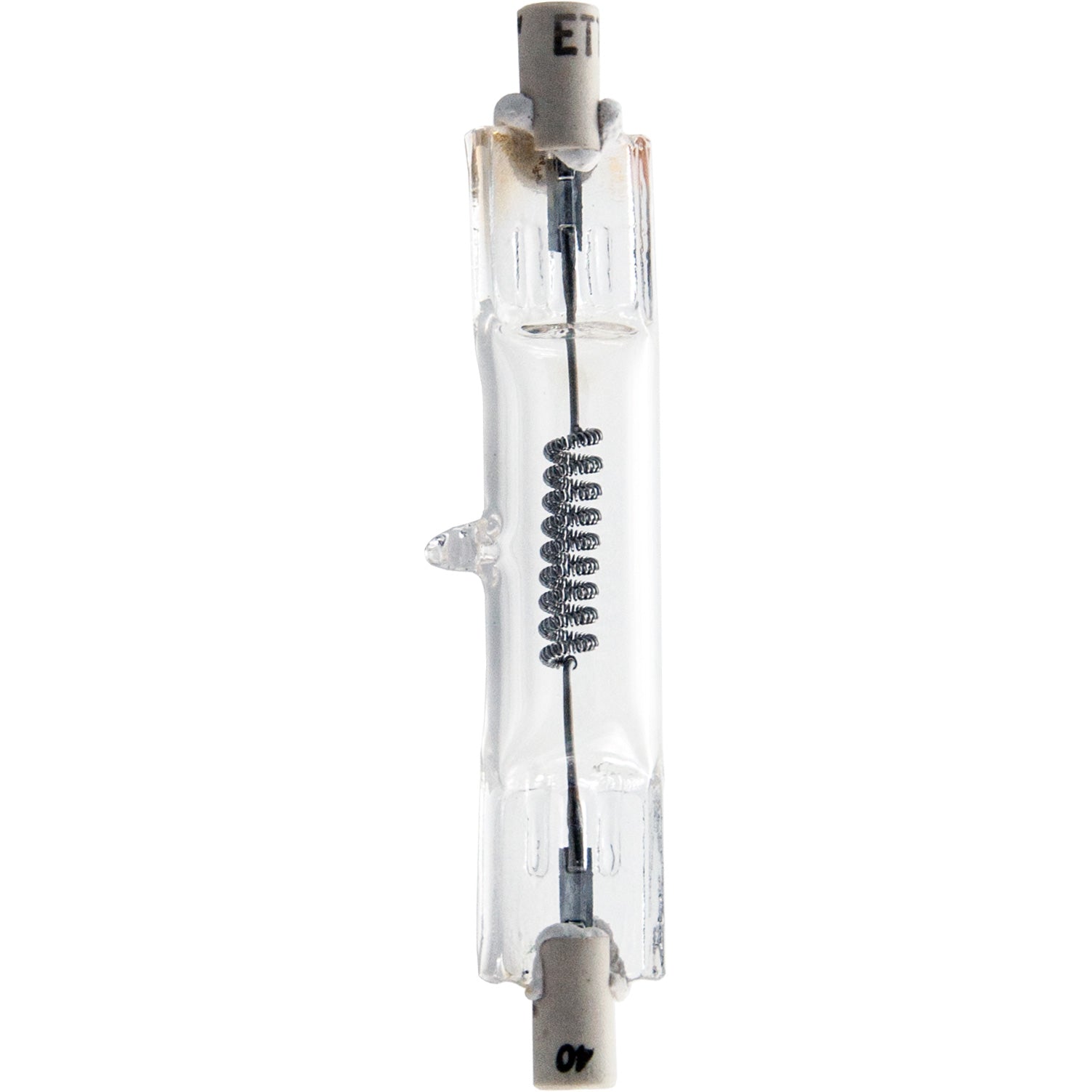

EJC Photograph

EJC

Electrical Specifications

Amps3.33
Volts240
Watts800

Photometrics

Color Temperature3250
Light Center Length (LCL)117.6
Lumens22000

Physical Characteristics

BaseR7s
Bulb ShapeT3
FilamentC-8
FinishFrosted
Max Overall Length (MOL)4 11/16

Operating Characteristics

Burn PositionHorizontal
Life Hours100

General Information
Lamp CodeEJC
Code TypeANSI

T3 Shape

T3
Diameter Designation3/8"
Glass Diameter 3/8" (0.375")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s Base

R7s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEJC

EJC may also be listed as:
EJC ANSIEJC ASAEJC-240V ANSIEJC-240V ASA
EJC-240V-800WEJC-240V-800W ANSIEJC-240V-800W ASAEJC-240V-800W-R7S-T-3-C-8-EXT.-FROSTED-22500L-3200K-100H-HOR-4-11/16MOL-2-11/16LCL-Q-STAGE/STUDIO
EJC-240V-800W-R7S-T3-C8-EXTERNAL-FROSTED-22500L-3200K-100H-HOR-4-11/16MOL-2-11/16LCL-Q-STAGE/STUDIOEJC-240V/240V/800W/R7S/119MMMOL ANSIEJC-240VOLT ANSIEJC-240VOLT ASA
EJC/240V/800W/R7S ANSIEJC/240V/800W/R7S/119MMMOL ANSIH/240V/800W/R7S/T3/FRH/240V/800W/R7S/T3/FR/EJC
SPQ800T3R7SFR240V-EJCSPQ800T3RSCFR240V-EJC
