EJM ANSI Code
EJM ANSI is a MR16 lamp with a GX5.3 base operating at 150 watts and 21 volts. It has a color temperature of 3350 Kelvin. It has a Open front finish. The average rated life is 40 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EJM lamps.

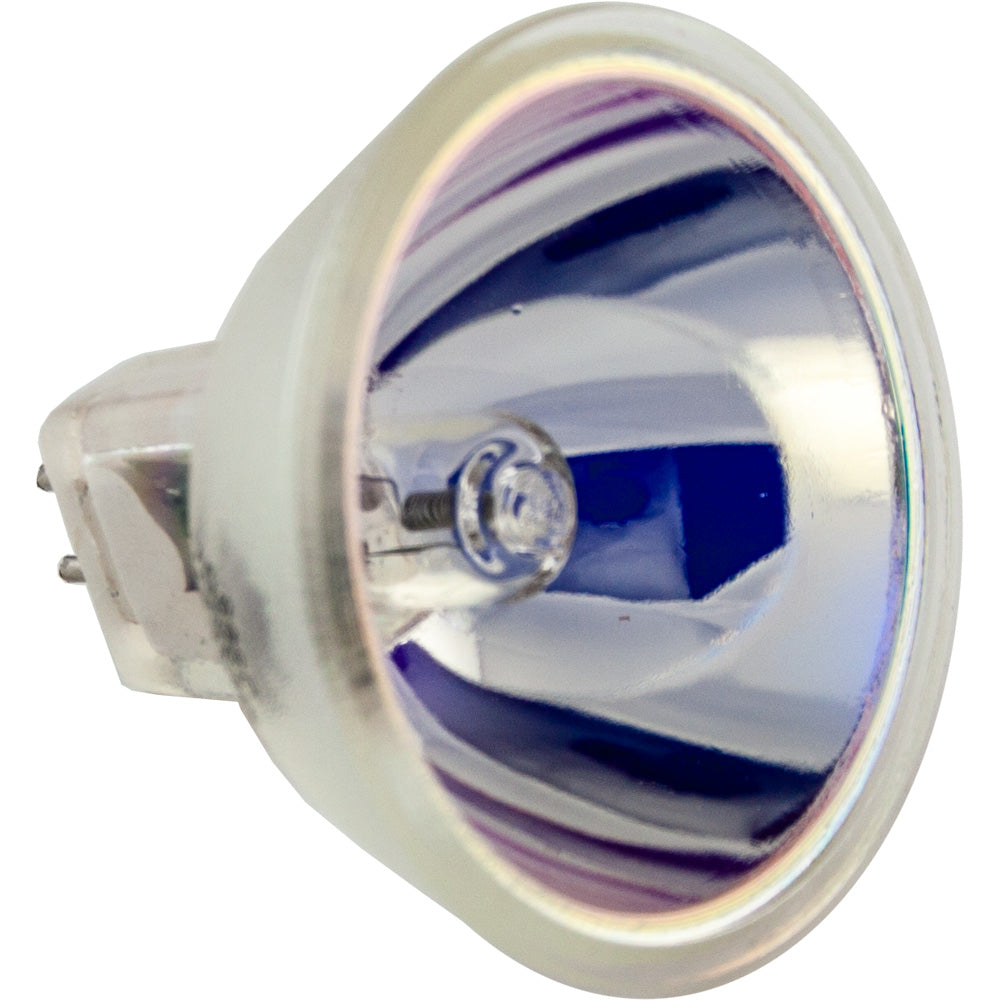

EJM Photograph |
 |
Electrical Specifications | |
| Amps | 7.14 |
|---|---|
| Volts | 21 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3350 |
|---|---|
| Lumens | 1200 lux |
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 40 |
General Information | |
| Lamp Code | EJM |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Cabot Medical | 100416 | ||
| EFOS | 3011 | ||
| Eiko | 02280 | EJM | |
| General Electric | 29151 | EJM | |
| Halco | EJM | ||
| Kerr | 15512 | ||
| Osram Sylvania | 54747 | EJM | |
| Philips | 239426 | EJM | Available |
| Philips | 5995 | ||
| Sunlite | 70100 | EJM | |
| Ushio | 1000301 | EJM, JCR21V-150W | Available |
| Kahoku Lighting Solutions (KLS) | 62034-KLS | EJM Japan | |
| Green Energy Lighting (GELCO) | 62034-GEL | EJM | |
| Rexim, LLC | RM-112 | ||
| Standard Products | 12098 | MR-16/150W/21V/2-PIN/GX5.3/EJM | |
| Microlites | 21-150-23MR | ||
| Canimpex | 21-150-23MR | ||
| Orbitec | 131218 | H 63167 | |
Equipment Used In | ||
| Brand | Model | Type |
| Cabot Medical | 004449-901 | Cryomedics |
| Elmo | SP-F | |
| Elmo | FP-8-CB | |
| Elmo | 380-SP-F | |
| Elmo | Dual-8-991 | |
| Elmo | 380 | |
| Elmo | SP | |
| Elmo | 360-GP-E | |
| Elmo | KXL-550-HF | |
| Elmo | Dual-8 990 | |
| Elmo | Dual-8-990 | |
| Elmo | 36/380/GP | |
| Elmo | 360-SP-F | |
| Elmo | 360 | |
| Elmo | GP-E | |
| Elmo | FPA Deluxe | |
| Elmo | Dual-8 991 | |
| Elmo | GP | |
| Elmo | 380-GP-E | |
| Honeywell | FP-E | |
| Honeywell | Dual-8 990 | |
| Honeywell | FP-A | |
| Honeywell | Dual-8 991 | |
| Honeywell | FP-C | |
| Kerr | 15512 21 volt | |
| Kerr | Command Light | |
| Nord | CPL/II | |
