EJN ANSI Code

EJN ANSI is a MR16D lamp with a GX5.3 base operating at 150 watts and 21 volts. It has a color temperature of 3400 Kelvin. It has a Open front finish. The average rated life is 40 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EJN lamps.

Electrical Specifications

Amps7.14
Volts21
Watts150

Photometrics

Color Temperature3400

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16D
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours40

General Information
Lamp CodeEJN
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsELD, F/112

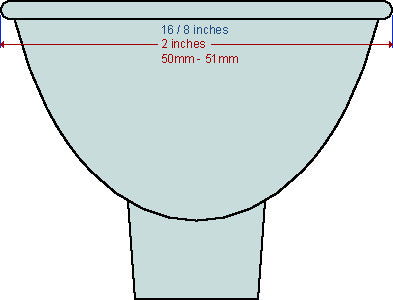

MR16D Shape

MR16D
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Eiko02430ELD/EJN
General Electric38306ELD/EJN
Grainger6VM63
Imported Lamp Code143118
Osram Sylvania54745ELD 64636
Philips31618213158 ELD/EJN 150W 21V
Sunlite70121ELD
Ushio1000319ELD/EJN, JCR21V-150W
Kahoku Lighting Solutions (KLS)60673-KLSELD Japan
Green Energy Lighting (GELCO)60673-GELELD/EJN
Norman LampsELDELD
Rexim, LLCRM-111

Equipment Used In

BrandModelType
Bell and Howell Multi Motion 1470
Bell and Howell 1600
Bell and Howell Multi Motion 1480
Bell and Howell Multi Motion 1464
Dioptrix Com I
Eastman Kodak Jacket Reader Filler
Eastman Kodak Recordak FRF-3500
Eastman Kodak Recordak 2610
Eastman Kodak Recordak FRF-1600
Eastman Kodak Recordak Micropak Jacket Reader Filler
Eastman Kodak 1610
Frederick Post Company 640 Microfilm Reader
Karmac Loge 3500
Library Microfilms & Materials (LMM) Advantage
MC Microfilm Mini Cat TV
MC Organization Minicat 1114
MS-Microfilm NMI-90
Mast Development Filmstrip 1000
Mast Development Random Access 133B
Micro Information Systems 2001
Microfilm Recording Co. Executive
Microfilm Recording Co. 1800E
Microfilm Recording Co. 1200
Microfilm Recording Co. 2300
Microfilm Recording Co. 900
Microfilm Recording Co. 1600
Microfilm Recording Co. 1217
Microfilm Recording Co. 1800
Microfilm Research Executive Microcomparator 1800
Microfilm Research Executive Microcomparator 1250
Microfilm Research Executive Microcomparator 2300
Microfilm Research Executive Microcomparator 1800E
Microfilm Research Microcom 1217
Microfilm Research Executive Microcomparator 1600
Microfilm Research Executive Microcomparator 1650
Microfilm Research Microcom 1650
Microfilm Research Microcom 900
Microfilm Research Mincat TN
Microfilm Research Microcom 1200
Microfilm Research Microcomparator 1200
NB Jackets Reader-Filler II
NB Jackets 3500
NB Jackets 1600
NB Jackets 1200 Microfilm Reader
NB Jackets 1600T automaster
NB Jackets 1600A
Northwest Microfilm NMI 90
Omnium Promotion TN
Omnium Promotion Minicat II
Omnium Promotion Minicat TN
Remington MFH II
Reslabs RL-180A
Reslabs RL-160
Reslabs RL-120
Teledyne / Post 640 Microfilm
University Microfilms 340
WSI DOD Microfilm Reader
WSI Mini-Cat II Microfilm Reader
WSI Mini-Cat III Microfilm Reader
WSI Mini-Cat I
Xerox 340 Microfilm Reader
Zytron NM1-90 Stage / Studio

EJN may also be listed as:
54749 SYLVANIABW-EJNEJN ANSIEJN ASA
EJN BULB-DIRECTEJN KONDOEJN SYLVANIAEJN USHIO
EJN WESTINGHOUSEEJN WIKOEJN-21V ANSIEJN-21V ASA
EJN-21V-150WEJN-21V-150W ANSIEJN-21V-150W ASAEJN-21V-150W-GX5.3-MR-16-CC-6-OPEN-FRONT-3400K-40H-BDTH-1-3/4MOL-Q-MICROFILM-DICHROIC-REFLECTOR-FOCAL-DIST.-2
EJN-21V-150W-GX5.3-MR16-CC6-OPEN-FRONT-3400K-40H-BDTH-1-3/4MOL-Q-MICROFILM-DICHROIC-REFLECTOR-FOCAL-DIST-2EJN-21V/21V/150W/GX5.3/MR16D ANSIEJN-21VOLT ANSIEJN-21VOLT ASA
EJN-ELD ANSIEJN-ELD ASAEJN/21V/150W/GX5.3 ANSIEJN/21V/150W/GX5.3/MR16D ANSI
H/21V/150W/GX5.3/MR16D/CC6/40H/EJNSPQ150MR16DGX5.3CC621V-EJNSPQ150MR16DGX5.3CL21V-EJN
