EJV ANSI Code
EJV ANSI is a MR16 lamp with a GX5.3 base operating at 150 watts and 21 volts. It has a color temperature of 3350 Kelvin. It has a Open front finish. The average rated life is 40 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EJV lamps.

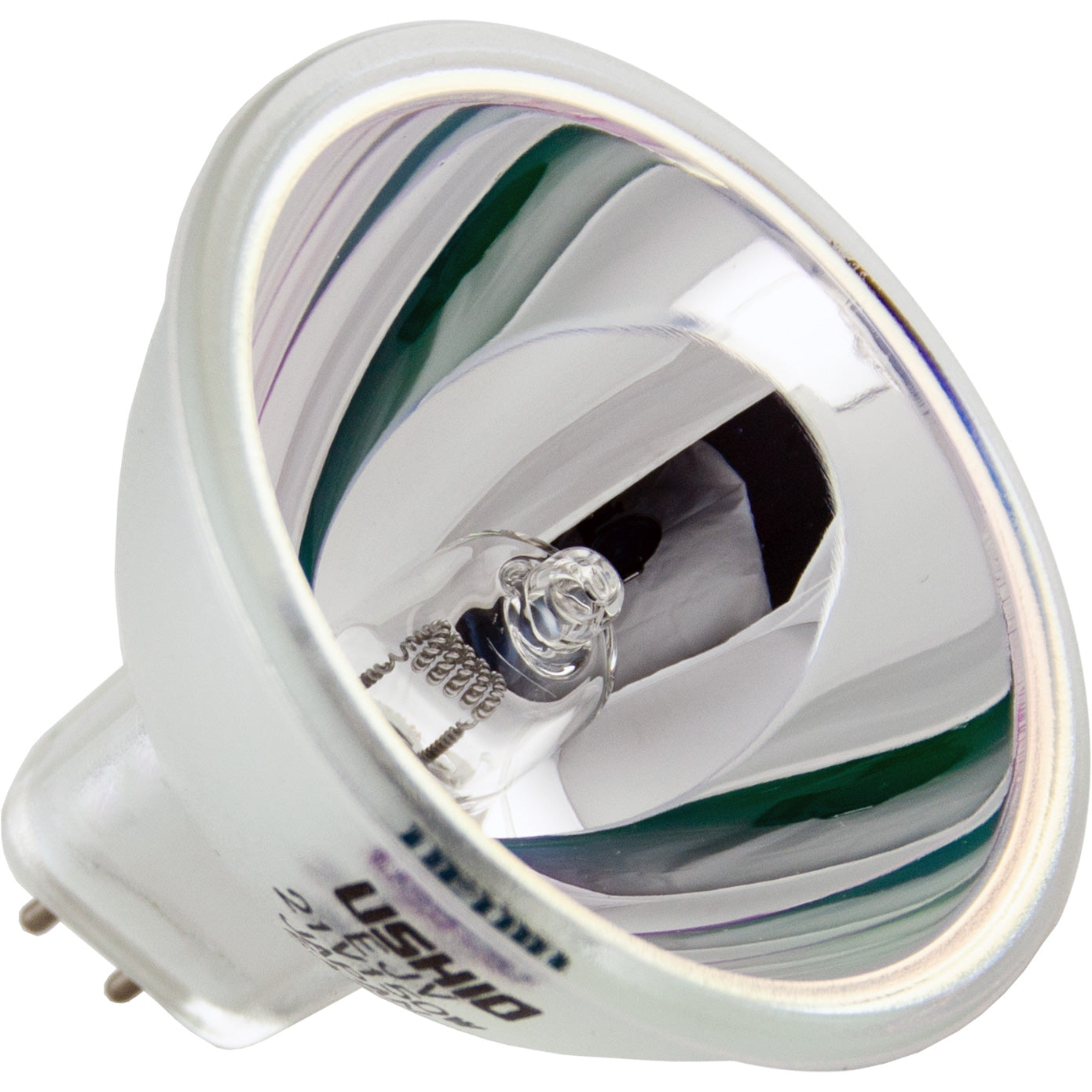

EJV Photograph |
 |
Electrical Specifications | |
| Amps | 7.14 |
|---|---|
| Volts | 21 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3350 |
|---|---|
| Lumens | 1500 lux |
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 40 |
General Information | |
| Lamp Code | EJV |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Darby Dental | 950-9024 | ||
| Den-Mat | 3904 | ||
| Dentsply / Caulk | EJV | ||
| EFOS | 3022 | ||
| Eiko | 02290 | EJV | |
| General Electric | 32831 | EJF | |
| Kinetic Instruments | 1450 | ||
| Osram Sylvania | 54732 | EJV 93637 | Available |
| Penn-Med | 301203 | ||
| Philips | 337444 | EJV | |
| Sunlite | 70105 | EJV | |
| Ushio | 1000302 | EJV, JCR21V-150W | Available |
| Kahoku Lighting Solutions (KLS) | 62035-KLS | EJV Japan | |
| Green Energy Lighting (GELCO) | 62035-GEL | EJV | |
| Rexim, LLC | RM-109A | ||
| Microlites | 21-150-23VR | ||
| Canimpex | 21-150-23VR | ||
| Orbitec | 130277 | H 63114 | |
Equipment Used In | ||
| Brand | Model | Type |
| Cuda | Fiber Optic | |
| Darby Dental | Superdent 7500 | |
| DeJur Amsco | 86-Z | |
| DeJur Amsco | Eldorado 86-MV | |
| DeJur Amsco | Eldorado 86-Z | |
| DeJur Amsco | Eldorado 84-MV | |
| DeJur Amsco | Eldorado DP-86 | |
| DeJur Amsco | Eldorado 86 | |
| DeJur Amsco | Remote Command 86ZR | |
| DeJur Amsco | 86-MV | |
| DeJur Amsco | 84-MV | |
| Den-Mat | Visar II | Medical |
| Dentsply / Caulk | Triad TLU11 | |
| Dolan Jenner | Fiber-Lite 170 | |
| Dolan Jenner | Fiber-Lite 181 | |
| Dolan Jenner | Fiber-Lite 360-1 RL | |
| Dolan Jenner | Fiber-Lite 180 | |
| Dolan Jenner | Fiber-Lite 170D | |
| Dolan Jenner | Fiber-Lite 176 | |
| Dolan Jenner | EJV Microscope | |
| Dolan Jenner | Fiber-Lite 181-1 | |
| Dolan Jenner | Fiber-Lite 175 | |
| EFOS | 3022 | |
| Kinetic Instruments | Sunlite II | |
| LaBelle Industries | Tutor 16 | |
| O'Ryan Industries | ENDO 150 | |
| O'Ryan Industries | LS-150 | |
| Panasonic | Monitor | |
| Penn-Med | 200-L Wand | |
| Simmon Omega | 471-033 | |
| Simmon Omega | Super Chromega Dichroic C | |
| Simmon Omega | Dichroic C | Enlarger / Photo Printer |
| Technicolor | 1400 | |
| Technicolor | 1000 | |
| Technicolor | 1000A | |
| Technicolor | 1000B | |
| Technicolor | 1300 | |
| Techniquip | Model 21 AC | |
| Techniquip | Model 21 DC | |
