EKB ANSI Code

EKB ANSI is a G7 lamp with a GY9.5 base operating at 420 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EKB lamps.

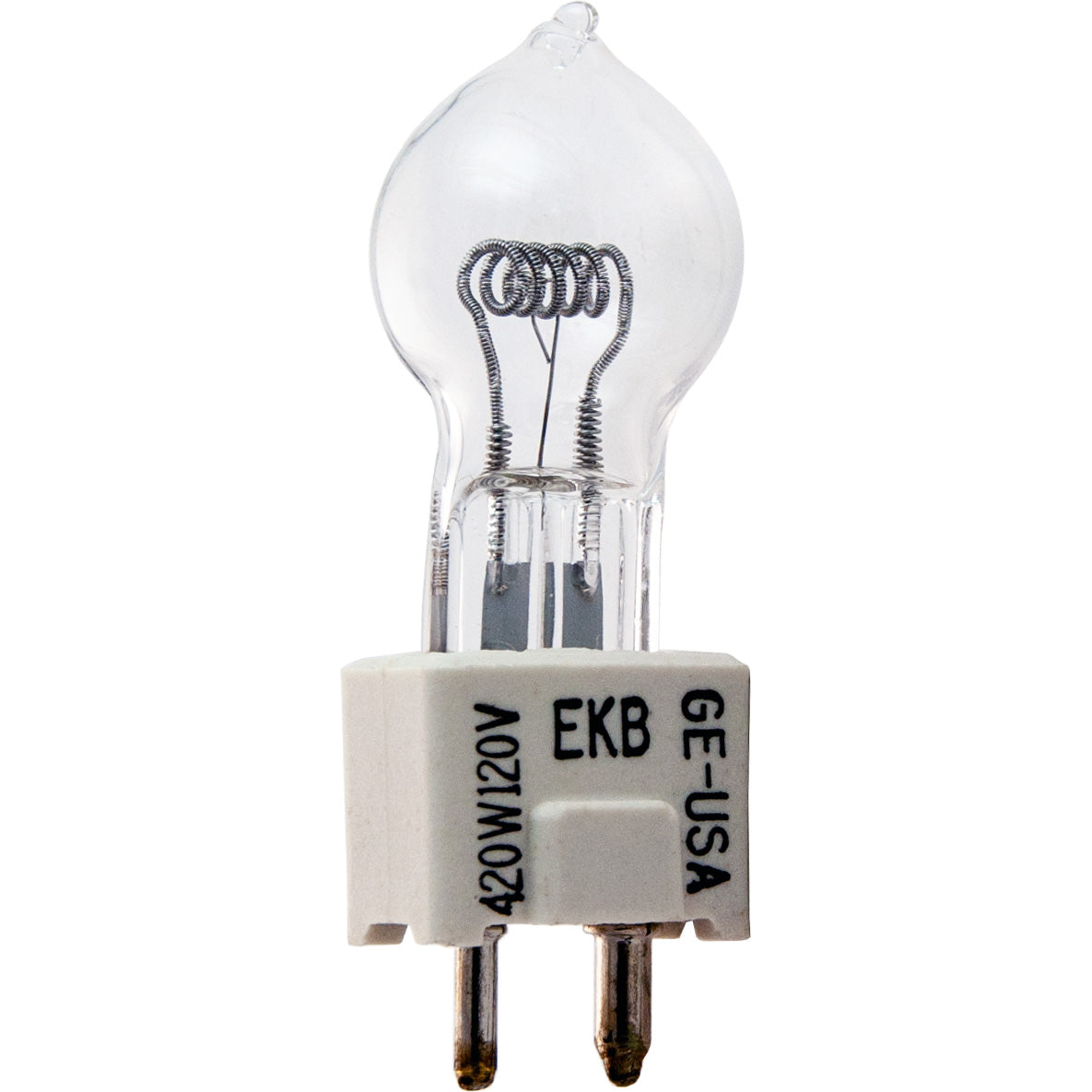

EKB Photograph

EKB

Electrical Specifications

Amps3.5
Volts120
Watts420

Photometrics

Candlepower880
Color Temperature3200
Light Center Length (LCL)36.5 mm
Lumens11000

Physical Characteristics

BaseGY9.5
Bulb ShapeG7
FilamentCC-6
FinishClear
Max Overall Length (MOL)66 mm
Diameter22 mm

Operating Characteristics

Burn PositionBD/HZ
Life Hours75

General Information
Lamp CodeEKB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

G7 Shape

G7
Diameter Designation7/8"
Glass Diameter 7/8" (0.875")
Shape CodeG
Shape ClassificationGlobe

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GY9.5 Base

GY9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Ushio1000304EKB, JCD120V-420WC
Microlites120-420-29
Canimpex120-420-29

Equipment Used In

BrandModelType
Bell and Howell DUO Microfilm Reader
Dietzen 4316 Microfilm
Frezzolini / Frezzi FL-650 Stage / Studio
Kobold K-600
LTM Pepper 420
LTM Pepper 600
Lowel Omni Stage / Studio
Omni Pepper 420
Smith-Victor Q125
Smith-Victor Q120
Smith-Victor Q60SG
