EKK ANSI Code

EKK ANSI is a T4 lamp with a G5.3 base operating at 250 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Clear finish. The average rated life is 1000 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EKK lamps.

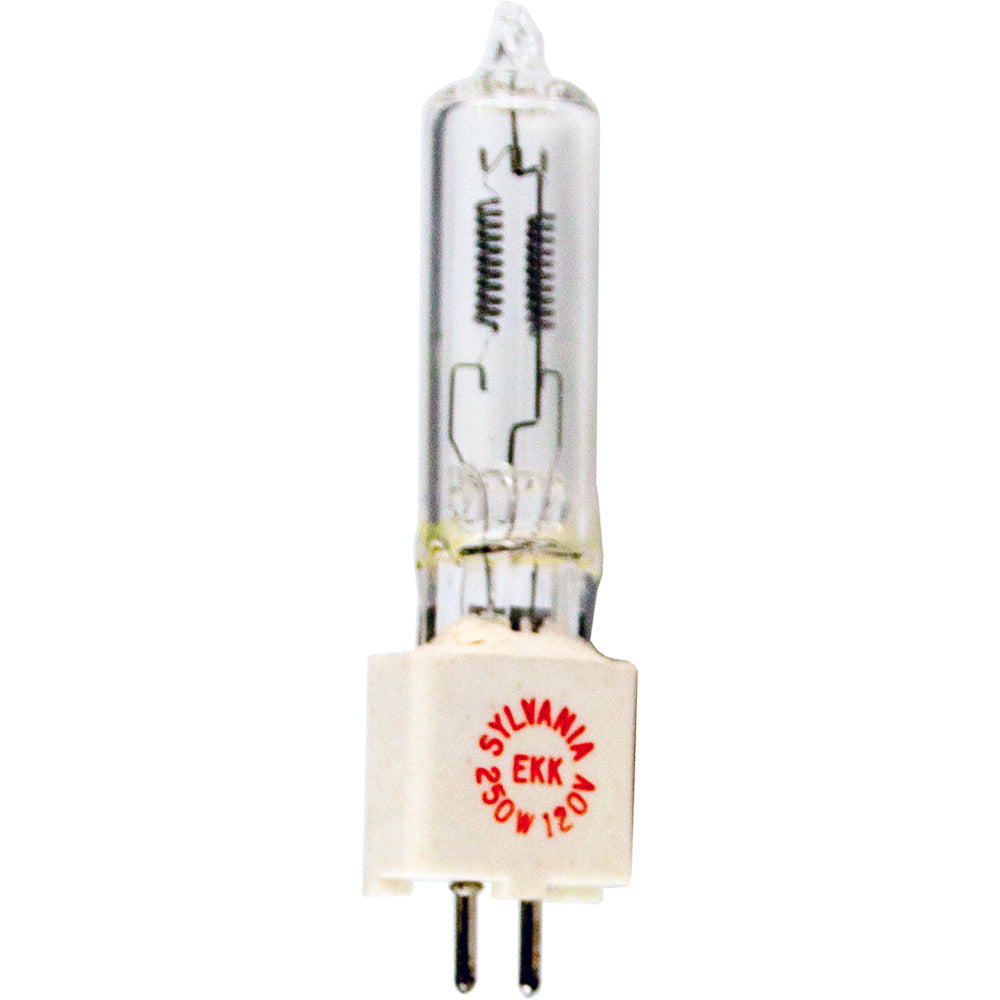

EKK Photograph

EKK

Electrical Specifications

Amps2.08
Volts120
Watts250

Photometrics

Candlepower440
Color Temperature3000
Light Center Length (LCL)1 3/4
Lumens4700

Physical Characteristics

BaseG5.3
Bulb ShapeT4
Filament2CC-8
FinishClear
Max Overall Length (MOL)3

Operating Characteristics

Life Hours1000

General Information
Lamp CodeEKK
Code TypeANSI

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

G5.3 Base

G5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIEKK

EKK may also be listed as:
EKK ANSIEKK ASAEKK INTERLIGHTEKK KONDO
EKK-120 VOLT ANSIEKK-120 VOLT ASAEKK-120V ANSIEKK-120V ASA
EKK-120V-250WEKK-120V-250W ANSIEKK-120V-250W ASAEKK-120V-250W-G6.35-T4-2CC8-CLEAR-4700L-3000K-1000H-3MOL-1-3/4LCL-Q-PROJECTOR
EKK-120V/120V/250W/G5.3 ANSIEKK/120V/250W/G5.3 ANSIH/120V/250W/G5.3/T4/2CC8/1000HH/120V/250W/G5.3/T4/2CC8/1000H/EKK
SPQ250T4G5.32CC8-120VSPQ250T4G5.32CC8120V-EKK
