EKL ANSI Code
EKL ANSI is a T3 lamp with a GZ9.5 base operating at 150 watts and 21 volts. It has a color temperature of 3350 Kelvin. It has a Clear finish. The average rated life is 40 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EKL lamps.

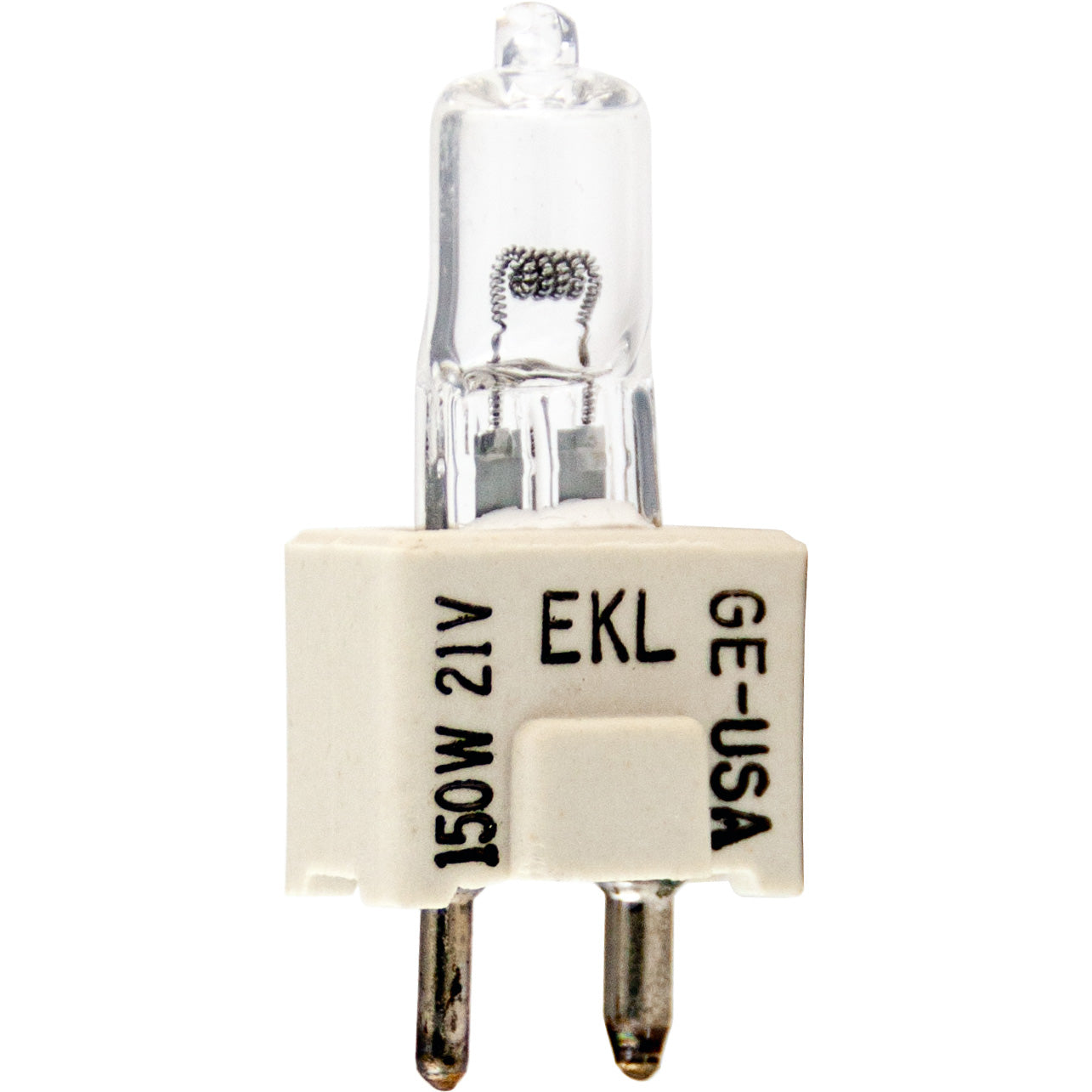

EKL Photograph |
 |
Electrical Specifications | |
| Amps | 7.14 |
|---|---|
| Volts | 21 |
| Watts | 150 |
Photometrics | |
| Candlepower | 350 |
|---|---|
| Color Temperature | 3350 |
| Light Center Length (LCL) | 1 1/16 |
| Lumens | 4650 |
Physical Characteristics | |
| Base | GZ9.5 |
|---|---|
| Bulb Shape | T3 |
| Filament | CC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 2 1/8 |
Operating Characteristics | |
| Burn Position | VBD ± 90° |
|---|---|
| Life Hours | 40 |
General Information | |
| Lamp Code | EKL |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T3 Shape | |
 | |
| Diameter Designation | 3/8" |
|---|---|
| Glass Diameter | 3/8" (0.375") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GZ9.5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 21-150-29 | ||
| Canimpex | 21-150-29 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Ken-A-Vision | X-1000 | Microprojector |
EKL may also be listed as: | |||
| 02330 EIKO | 02330 UPC | 02330 WIKO | 031293023308 EIKO |
| 048777120163 UPC | 1000309 USHIO | 3129302330 WIKO | 9248-020-19800 PHILIPS |
| BW-EKL | EKL ANSI | EKL ASA | EKL BULB-DIRECT |
| EKL EIKO | EKL INTERLIGHT | EKL KONDO | EKL LAMPTECH |
| EKL MICROLAMP | EKL PHILIPS | EKL USHIO | EKL WIKO |
| EKL-150W-21V-GY9.5 USHIO | EKL-21V ANSI | EKL-21V ASA | EKL-21V-150W |
| EKL-21V-150W ANSI | EKL-21V-150W ASA | EKL-21V-150W-GY9.5 USHIO | EKL-21V-150W-GZ9.5-T3-CC6-CLEAR-4650L-3350K-40H-BDTH-2-1/8MOL-1-1/16LCL-Q-PROJECTOR/MICROFILM |
| EKL-21V/21V/150W/GZ9.5 ANSI | EKL-21VOLT ANSI | EKL-21VOLT ASA | EKL/21V GENERAL-ELECTRIC |
| EKL/21V/150W/GZ9.5 ANSI | EKL/GY9.5 USHIO | EKL/T3-21V-150W-2PIN-PREFOCUS LAMPTECH | H/21V/150W/GZ9.5/T3/CC6/40H |
| H/21V/150W/GZ9.5/T3/CC6/40H/EKL | JCD21V-150W USHIO | JCD21V-150W/EKL USHIO | JCD21V-150W/GY9.5 USHIO |
| JCD21V150W-40H USHIO | JCD21V150W-40HR USHIO | JCD21V150W-CC6-40HR USHIO | JCD21V150W-CC6-40HR/21V/150W/GY9.5 USHIO |
| JCD21V150W-CC6-40HR/21V/150W/GY9.5/EKL USHIO | JCD21V150W-CC6-40HR/EKL USHIO | JCD21V150W-GY9.5-40H USHIO | JDC/21V/150W MICROLAMP |
| SPQ150T3GZ9.5CC6-21V | SPQ150T3GZ9.5CC621V-EKL | SPQ150T3GZ9.5CL-21V | SPQ150T3GZ9.5CL21V-EKL |
