EKM ANSI Code

EKM ANSI is a T4 lamp with a R7s-12 base operating at 1000 watts and 225 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EKM lamps.

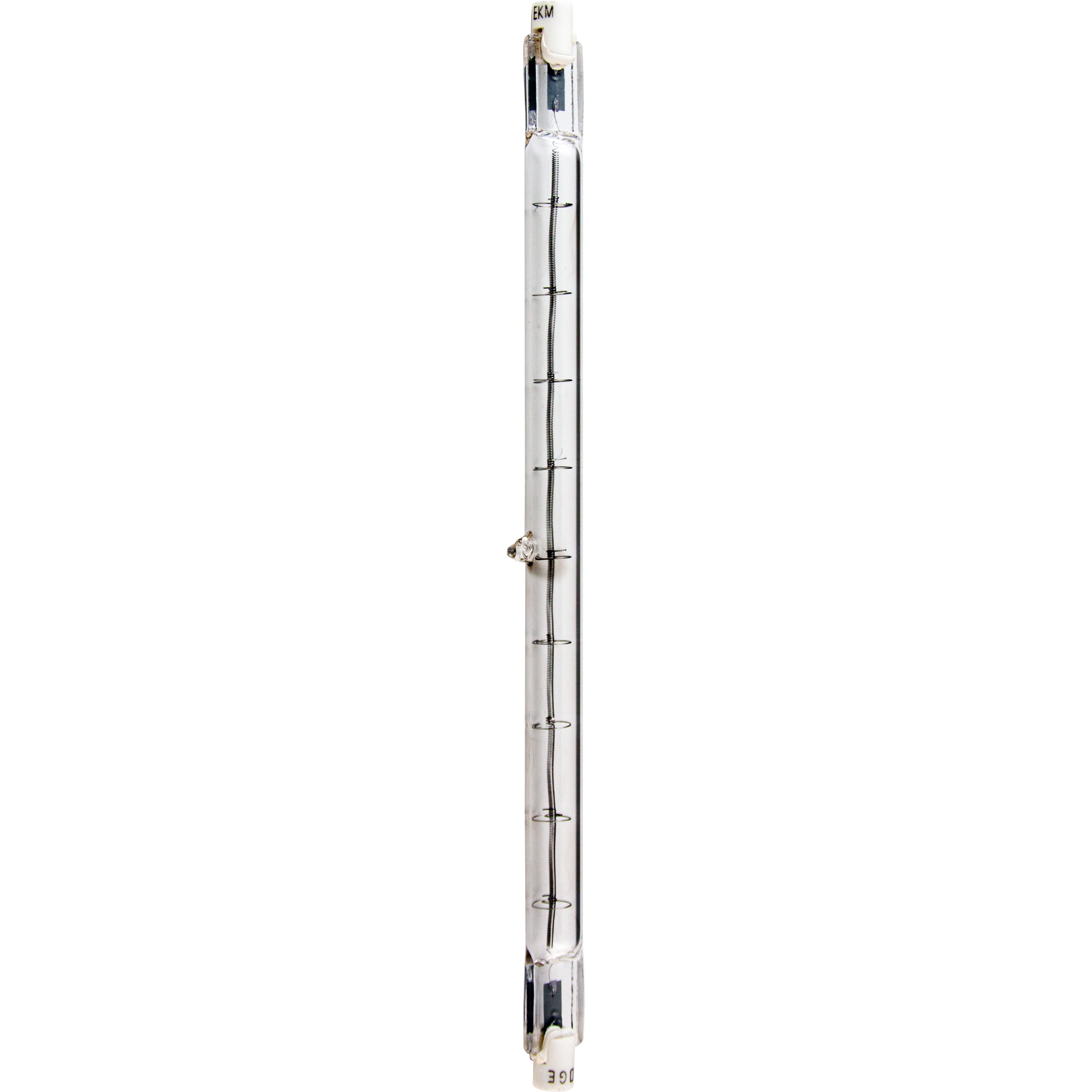

EKM Photograph

EKM

Electrical Specifications

Amps4
Volts225
Watts1000

Photometrics

Candlepower2100
Color Temperature3200
Light Center Length (LCL)5.51" (140mm)
Lumens28000

Physical Characteristics

BaseR7s-12
Bulb ShapeT4
FilamentC-8
FinishClear
Max Overall Length (MOL)7 1/2

Operating Characteristics

Burn PositionH ± 4°
Life Hours300

General Information
Lamp CodeEKM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsP2/7 240V

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

R7s-12 Base

R7s-12

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric20249EKM-Q1MT3/4CL2P/7 230V
General Electric20253EKM-Q1MT3/4CLP2/7 240V
Osram Sylvania64741 EKM
Philips13989R
Ushio1000310EKM, JP225V-1000WCL
Microlites220-1000-75
Canimpex220-1000-75
