EKT ANSI Code

EKT ANSI is a T4 lamp with a GX6.35 base operating at 150 watts and 10.5 volts. It has a color temperature of 3400 Kelvin. It has a Clear finish. The average rated life is 30 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EKT lamps.

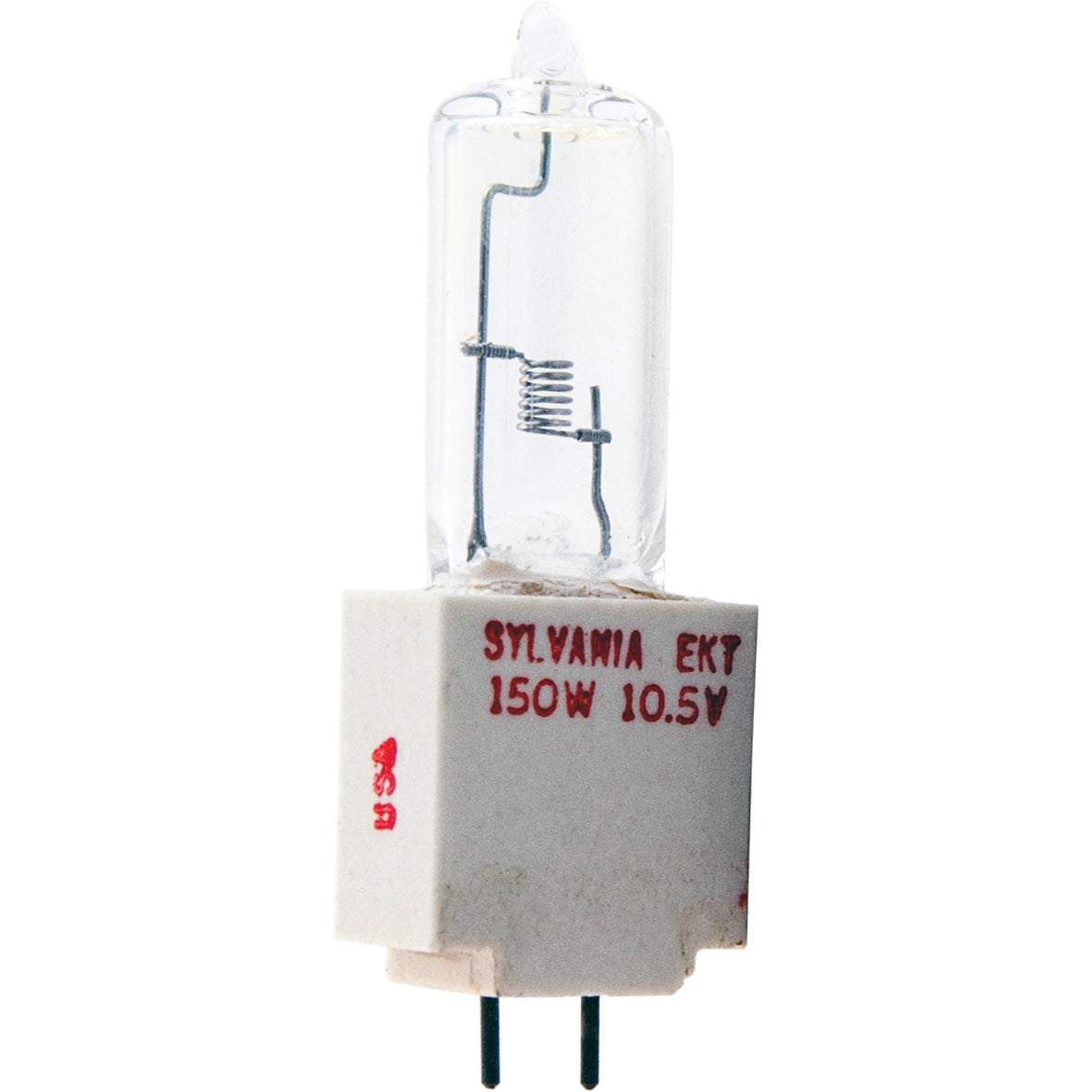

EKT Photograph

EKT

Electrical Specifications

Amps14.3
Volts10.5
Watts150

Photometrics

Candlepower320
Color Temperature3400
Light Center Length (LCL)1 1/4
Lumens4000

Physical Characteristics

BaseGX6.35
Bulb ShapeT4
FilamentC-8
FinishClear
Max Overall Length (MOL)2 1/4

Operating Characteristics

Burn PositionAny
Life Hours30

General Information
Lamp CodeEKT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T4 Shape

T4
Diameter Designation4/8"
Glass Diameter 1/2" (0.5")
Shape CodeT
Shape ClassificationTubular

C-8 Filament

C-8
Coil TypeC - Single Coil

GX6.35 Base

GX6.35

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsEKT10.5V 150W
Osram Sylvania77038EKT
Microlites10.5-150-24
Canimpex10.5-150-24

Equipment Used In

BrandModelType
Osram Sylvania Rapid Charge Sun Gun SG-77 Movie Light

EKT may also be listed as:
EKT ANSIEKT ASAEKT INTERLIGHTEKT MICROLAMP
EKT SYLVANIAEKT WIKOEKT-10.5V ANSIEKT-10.5V ASA
EKT-10.5V-150WEKT-10.5V-150W ANSIEKT-10.5V-150W ASAEKT-10.5V-150W-G6.35-T4-C8-CLEAR-4000L-3400K-30H-2-1/4MOL-1-1/4LCL-Q-SUN-GUN-CERAMIC-BASE
EKT-10.5V/10.5V/150W/GXX6.35 ANSIEKT-10.5VOLT ANSIEKT-10.5VOLT ASAEKT/10.5V/150W/GXX6.35 ANSI
H/10.5V/150W/GXX6.35/T4/C8-OR-CC8/30HH/10.5V/150W/GXX6.35/T4/C8-OR-CC8/30H/EKTH/10.5V/150W/GXX6.35/T4/C8/30HH/10.5V/150W/GXX6.35/T4/C8/30H/EKT
H/10.5V/150W/GXX6.35/T4/CC8/30HH/10.5V/150W/GXX6.35/T4/CC8/30H/EKTH/10.5V/150W/GXX6.35/T4/CL/30HH/10.5V/150W/GXX6.35/T4/CL/30H/EKT
JC-10.5VOLT-150WATT-S USHIOJC10.5V-150WJC10.5V-150WS USHIOSPQ150T4GXX6.35C8-OR-AX10.5V
SPQ150T4GXX6.35C8-OR-AX10.5V-EKTSPQ150T4GXX6.35C8-OR-CC810.5VSPQ150T4GXX6.35C8-OR-CC810.5V-EKT
