ELC ANSI Code

ELC ANSI is a MR16 lamp with a GX5.3 base operating at 250 watts and 24 volts. It has a color temperature of 3400 Kelvin. It has a Open front finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ELC lamps.

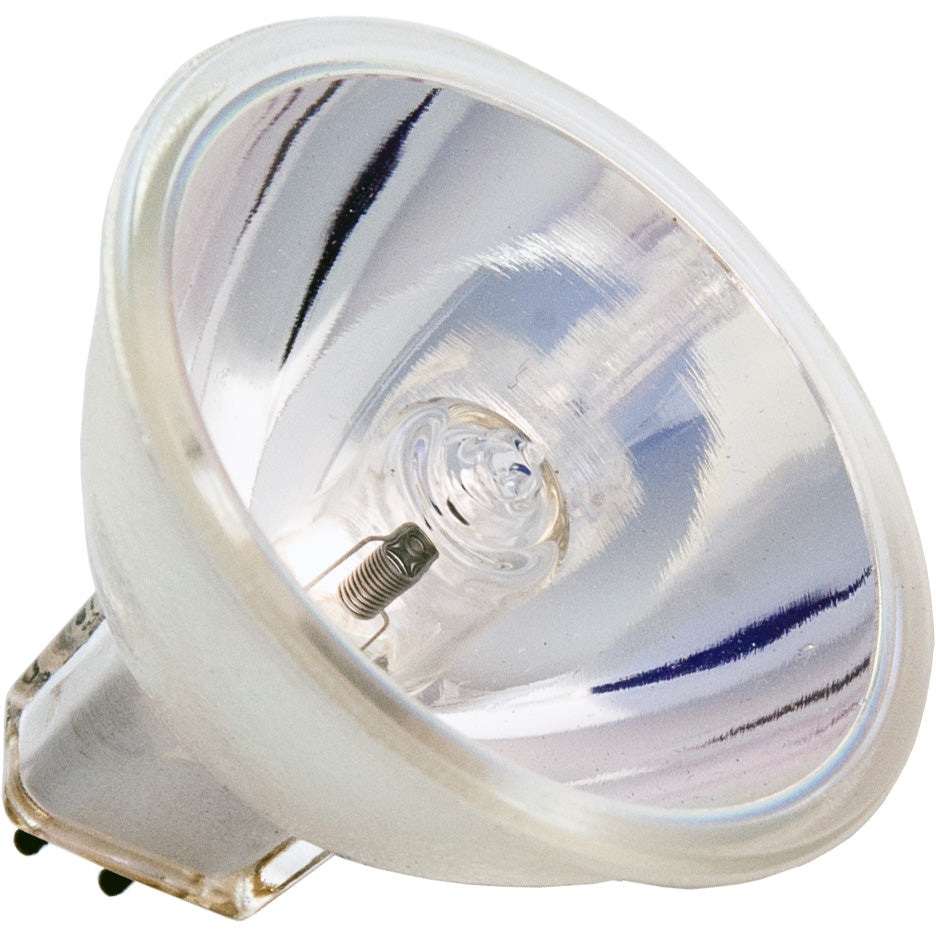

ELC Photograph

ELC

Electrical Specifications

Amps10.4
Volts24
Watts250

Photometrics

Color Temperature3400
Lumens1500 lux

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeELC
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-01-049-0969
EquivalentsA1/259
VariantsELC-10H, ELC-3/X, ELC-5H, ELC/5, ELC/C, ELC-7/X

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
American DJ (ADJ Products)ELC/HLX
American DJ (ADJ Products)ZB-ELC
Atlas/ThornA1/259
Bulbrite761080ELC
Eiko02400ELC
General Electric37462ELC
Grainger1C594
Imported Lamp Code143415
Imported Lamp Code52250
Osram Sylvania54163ELC 64653 HLX
Osram Sylvania54212ELC 64653 HLX
Osram Sylvania54840ELC
Philips23103513163 ELC FA 24V 250W
Sunlite70125ELC
Ushio1000318ELC, JCR24V-250W
Ushio1003106ELC-3, JCR24V-250W
NARVA54300ELC 24V 250W GX5.3
Philips50709513163 250W GX5.3 24V
Kahoku Lighting Solutions (KLS)62039-KLSELC Japan
Green Energy Lighting (GELCO)62039-GELELC
Rexim, LLCRM-115/5
Osram Sylvania54814ELC-7/X
Osram Sylvania54841ELC-3/X
Microlites24-250-23ER
Microlites24-250-23LR
Microlites24-250-23R
Canimpex24-250-23ER
Canimpex24-250-23LR
Canimpex24-250-23R
Biclite11011ELC
Orbitec130297H 64653 OS
Orbitec130599H 63654
Orbitec130282H 64653

Equipment Used In

BrandModelType
American DJ (ADJ Products) Spin Out
American DJ (ADJ Products) Colorscope
American DJ (ADJ Products) Warp Stage / Studio
American DJ (ADJ Products) Startec 250
Apollo QL-100
Bauer P-7TS
Bauer P-7L
Bauer P-7MS
Bell and Howell Filmosound 2592-A
Bell and Howell Autoload 2585A
Bell and Howell Autoload 2592
Bell and Howell Filmosound 3585
Bell and Howell Filmosound 2582-A
Bell and Howell Filmosound 2592
Bell and Howell Autoload 2585-AX
Bell and Howell Slot Load 2580-A
Bell and Howell Slot Load 2582-A
Bell and Howell Slot Load 2582-AX
Bell and Howell Autoload 2582A
Bell and Howell Filmosound 2592-B
Bell and Howell Autoload 3585
Bell and Howell Filmosound 3885
Bell and Howell Filmosound 3592
Bell and Howell JAN 1692B
Bell and Howell Filmosound 2585-B
Bell and Howell Autoload 2592B
Bell and Howell JAN 1680G
Bell and Howell Filmosound 2585-A
Bell and Howell Slot Load 2580-AX
Bell and Howell Slot Load 1680-QSA
Bell and Howell JAN 1695B
Bell and Howell Autoload 2580A
Bell and Howell Autoload 2585B
Bell and Howell Slot Load 1680-Q
Bell and Howell JAN 1693B
Bell and Howell Autoload 2585-AML
Bell and Howell Autoload 2585-AXU
Bell and Howell JAN 1698B
Bell and Howell Autoload 2592-AX
Bell and Howell Filmosound 2580-A
Bell and Howell Autoload 2592A
Beseler Photo Marketing (Charles Beseler) Dual-Dichro Colorhead
Bolex 521
Bolex S-421
Bolex S-521
Bolex 510
Copal / Sekonic ML-6030 Photo
Copal / Sekonic ML-8180 Photo
Copal / Sekonic ML-7750 Photo
Copal / Sekonic ML-7550 Photo
Copal / Sekonic ML-6130 Photo
Copal / Sekonic ML-3130 Photo
De Vere 500
De Vere 203
De Vere Color Head
De Vere 504
De Vere 108AF
De Vere 507
De Vere 1085
De Vere 810H Enlarger / Photo Printer
De Vere 508H
Durst North American 403/D184
Durst North American L1200-CLS-CLG-500
Durst North American Colorheads CLS-CLG-402
Durst North American 402/L138D
Durst North American PRO-CLS-CLG-500
Durst North American L900-CLS-CLG-500
Durst North American 403/V184
Durst North American 402/L138S
Durst North American L138
Durst North American L1200-CLS-CLG-450
Durst North American Colorheads CLS-CLG-450
Durst North American Colorheads D-184
Durst North American PRO/CLS 500
Durst North American L138-CLS-CLG-402
Durst North American Process Color Separator V-184
Durst North American Colorheads CLS-450
Durst North American L1200/CLS 500
Durst North American Colorheads CLS-CLG-500
Durst North American PRO/CLS 450
Durst North American V-184-CLS-CLG-403
Durst North American L900/CLS 500
Durst North American Colorheads CLS-CLG-403
Durst North American AC650
Durst North American L1200/CLS 450
Durst North American PRO-CLS-CLG-450
Durst North American D184
EIKI SSL-0B
EIKI ENT-1
EIKI NT-0
EIKI ESL-1
EIKI SSL-0
EIKI SNT-0
EIKI ENT-0-3592
EIKI ESL-2
EIKI ENT-2
EIKI SL-1
EIKI SNT-0-3585
EIKI NT-3
EIKI ENT-3
EIKI 3592
EIKI 3585
EIKI 3580
EIKI NT-2
EIKI ENT-0
EIKI SNT-1
EIKI SNT-2
EIKI SSL-0-3580
EIKI NT-1
EIKI SL-0
Eastman Kodak System 25 Photo
Eastman Kodak System 40 Photo
Eastman Kodak Ektagraphic CT-1000
Eastman Kodak Carousel S-AV
Elmo 16-AAR
Elmo 16-AC
Elmo 16-AL
Elmo 16-ALR
Elmo Tele-Cine 16-CL
Elmo 16-CM
Elmo 16-CO
Elmo 16-CL-OPT
Elmo AL
Elmo 16-DDS
Elmo AA
Elmo 16-CL M/O
Elmo AC
Elmo 16-AL M/O
Elmo Filmatic 16-AR
Elmo Filmatic 16-A
Elmo 16-FT
Elmo 16-AL-OPT
Elmo 16-FR
Elmo 16-CL TC
Elmo AAR
Elmo 16-CLDSS
Elmo 16-FS
Elmo 16-AO
Elmo 16-AA
Elmo 16-TC
Elmo 16-CL
Elmo AR
Elmo Tele-Cine 16-F
Elmo 16-AM
Fiberstars 201
Forox Dichro Color Head
Forway Industries 16-CL-TC
Hokusin / Hokushin SC-11
Hokusin / Hokushin SC-10S
Hokusin / Hokushin SC-10
Martin Punisher
Martin Ministar
Martin Raptor
Martin Punisher (before 10/97)
Martin PRO 1004
Martin Juggler
Martin Rainbow
Martin Magic Moon
Martin Super Moon
Martin MX-1
Martin Acrobat
Martin Destroyer
Martin CX-2
Mitsubishi SPS-600-NVE Photo
Noritsu EL-512
Noritsu 801 Enlarger / Photo Printer
Noritsu 802 Enlarger / Photo Printer
Noritsu QSS-801 Photo
Noritsu QSS-R-1401 Photo
Noritsu QSS-501 Photo
Oriental 1 MINIMI Photo
Paillard Bolex 510
Paillard Bolex 521
Pavelle 402 Color Head
Rangertone/Hokusin X-310
Rangertone/Hokusin SC-10
Rangertone/Hokusin SC-210
Simmon Omega Super Chromega Dichroic E
Simmon Omega Super F Enlarger / Photo Printer
Simmon Omega Super D Enlarger / Photo Printer
Simmon Omega D5-XL
Simmon Omega Dichroic F Enlarger / Photo Printer
Simmon Omega Dichroic E Enlarger / Photo Printer
Simmon Omega Super Chromega F Enlarger / Photo Printer
Simmon Omega Super Chromega Dichroic F
Simmon Omega Super Chromega D Enlarger / Photo Printer
Simmon Omega Super Chromega D-2 Enlarger / Photo Printer
Simmon Omega Chromega D Enlarger / Photo Printer
Simmon Omega 471-029
Simmon Omega Super E Enlarger / Photo Printer
Simmon Omega Dichroic D Enlarger / Photo Printer
Simmon Omega Dichro D-5 Enlarger / Photo Printer
Simmon Omega Super Chromega Dichroic D
Simmon Omega Super Chromega E Enlarger / Photo Printer
Simmon Omega Chromega E Enlarger / Photo Printer
Singer Corporation Insta Load XL 2200-Series
Sunoptics CUDA HLS250T
Techniquip FOI-250

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "Special Lamps." Catalogue. NARVA Specialty Lighting, .
  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "Lamp Specification & Application Guide 2004." Catalog. Philips Lighting Company, .
