ELH ANSI Code

ELH ANSI is a MR16 lamp with a GY5.3 base operating at 300 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Dichroic finish. The average rated life is 35 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ELH lamps.

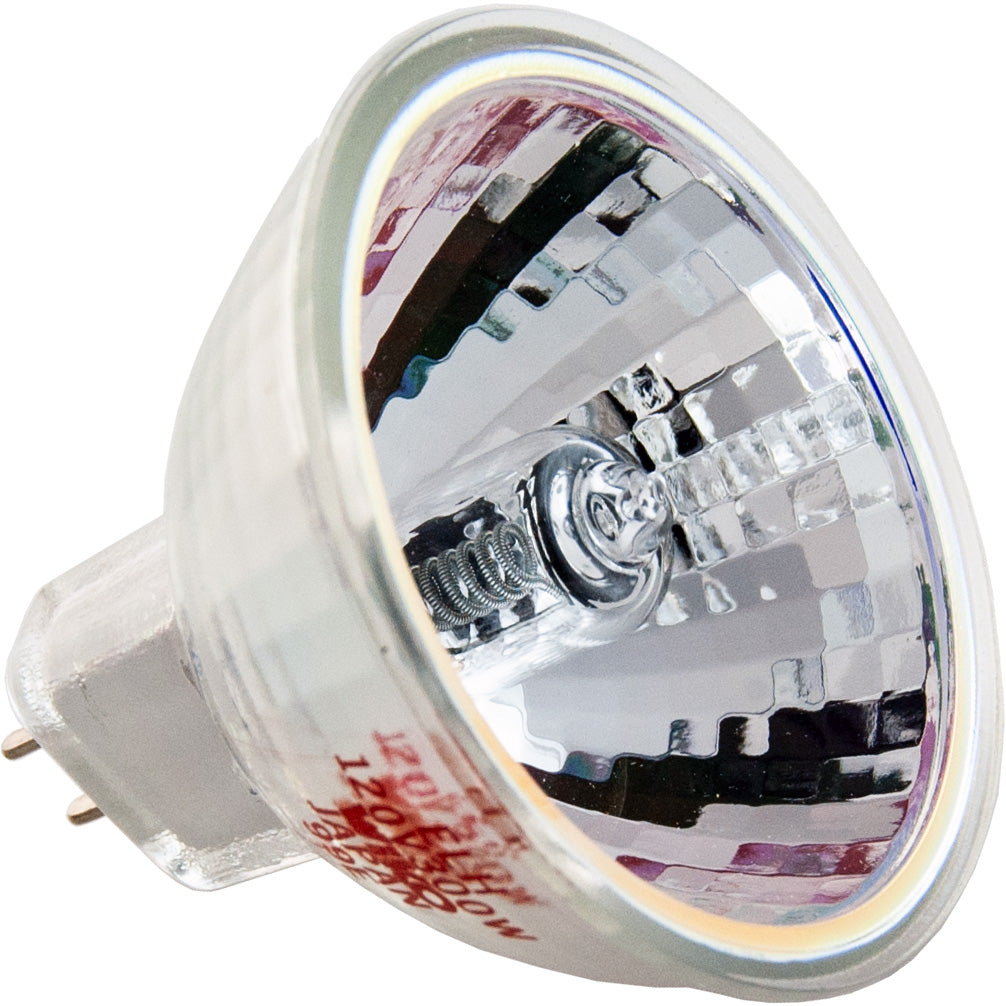

ELH Photograph

ELH

Electrical Specifications

Amps2.4
Volts120
Watts300

Photometrics

Color Temperature3350
Lumens850 lux

Physical Characteristics

BaseGY5.3
Bulb ShapeMR16
FilamentCC-8
FinishDichroic
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours35

General Information
Lamp CodeELH
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-00-115-8008

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-8 Filament

CC-8
Coil TypeCC - Coiled Coil

GY5.3 Base

GY5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Bulbrite761085ELH
Eiko02450ELH
General Electric38476ELH
Grainger4V246
Imported Lamp Code143815
Osram Sylvania54776ELH 64660
Philips13096
Philips316190ELH 300W 120V
Sunlite70130ELH
Ushio1000321ELH, JCR120V-300W
Kahoku Lighting Solutions (KLS)62041-KLSELH Japan
Green Energy Lighting (GELCO)62041-GELELH
Rexim, LLCRM-129
Microlites120-300-33R
Microlites125-300-33R
Canimpex120-300-33R
Canimpex125-300-33R
Orbitec130412H 63199
Orbitec130582H 63199 GE

Equipment Used In

BrandModelType
Bell and Howell Slide Cube RF60
Bell and Howell Slide Cube RC55
Bell and Howell Slide Cube 1000
Bell and Howell Slide Cube CP-40
Bell and Howell Specialist Autoload 747-BL
Bell and Howell Slide Cube 3000
Bell and Howell Slide Cube AF66
Bell and Howell Slide Cube 2000
Bell and Howell Specialist Autoload Filmstrip 746A
Bell and Howell Specialist Autoload Filmstrip 746F
Bell and Howell Slide Cube 991
Bell and Howell 448
Bell and Howell Slide Cube 991Z
Bell and Howell Specialist Autoload Filmstrip 747A
Bell and Howell 452
Bell and Howell Specialist Autoload 747-B
Bell and Howell Slide Cube CP40RC50
Bell and Howell Specialist Autoload 746-B
Bell and Howell Slide Cube 986
Bell and Howell Slide Cube RC50
Bell and Howell 454
Bell and Howell Slide Cube 985
Bell and Howell Slide Cube 987
Bell and Howell Specialist Autoload 746-BL
Bell and Howell Slide Cube AF80
Bell and Howell Slide Cube AF70
Bright Light Module B3/ENG
Crystal Video Crystal Vision
De Vere 5108
De Vere Dichrocopy
Durst North American L1800/CLS 301
Durst North American L138S/CLS 301
Durst North American L128-S-CLS-CLG-301
Durst North American L1800-CLS-CLG-301
Durst North American L184/CLS 301
Eastman Kodak Carousel 860H
Eastman Kodak Carousel Custom 840H
Eastman Kodak Ektagraphic II Series 2
Eastman Kodak Ektagraphic E-2
Eastman Kodak Recordak Starfiche
Eastman Kodak Brightlight Modules AF-1 & AF-2
Eastman Kodak Carousel Custom
Eastman Kodak Recordak Starfiche (R/P)
Eastman Kodak Ektagraphic B-2
Eastman Kodak Brightlight Modules AF-3
Eastman Kodak Carousel 860K
Eastman Kodak Ektagraphic II
Eastman Kodak Brightlight Modules AF-2K
Eastman Kodak Brightlight Modules BL3/ENG
Eastman Kodak Carousel
Eastman Kodak Ektagraphic AF-3
Eastman Kodak Carousel 600H
Eastman Kodak Carousel 850K
Eastman Kodak Carousel 750H
Eastman Kodak Ektagraphic AF-2
Eastman Kodak Brightlight Modules E-2
Eastman Kodak Carousel 850H
Eastman Kodak Ektagraphic II Series 3
Eastman Kodak Carousel 800H
Eastman Kodak Carousel Custom 850H
Eastman Kodak Brightlight Modules B-2
Eastman Kodak Ektagraphic AF-1
Eastman Kodak Carousel 760H
Eastman Kodak Carousel Custom 860H
Eastman Kodak Carousel Custom 850K
Eastman Kodak Carousel 760K
Eastman Kodak Carousel 650K
Eastman Kodak Brightlight Modules B2AR
Eastman Kodak Carousel Custom 800H
Eastman Kodak Carousel 650H
Eastman Kodak Custom
Eastman Kodak Ektagraphic B-2-AR
Eastman Kodak Ektagraphic AF-2-K
Eastman Kodak Carousel 840H
Eastman Kodak Carousel 750HAR
Eastman Kodak Ektagraphic II Series B
Elmo Omnigraphic 301AF
Elmo Omni 300-AF
Elmo EP-6000
Elmo Omnigraphic 301-Pro-AF
Elmo Omnigraphic 300
Elmo Pro 301-AF
Elmo Omnigraphic Pro
Elmo Omnigraphic Pro-AF
Elmo Omnigraphic 301
Elmo Omnigraphic TC
Eumig S-1
Eumig M-1
Eumig D-7
GAVI (General Audio Visual Inc.) Go-Show III
GAVI (General Audio Visual Inc.) LC-210 Automatic Lamp Charger
Hoppman Corp. T-30 Overhead Projector
Kobold M-250
Leitz Pradovit RT-300
Leitz Pradolux RT-300
Lightwave Research Color Pro 300W
Mast Development Random Access S-6 Slide Projector
Mast Development Random Access S-4 Slide Projector
Mast Development Random Access 137-S-6
Mast Development Random Access 137-S
Mast Development Random Access 137-S-4
Medrex Xaminer 1
Microtek Diagraph
Mikrotek Diagraph X
Motion Tech Xaminer 1-R Microfilm
Motion Tech Xaminer 1 Microfilm
Pepco MFI type C
Pepco MFI type R
Rangertone/Hokusin AF-1
Singer Corporation Caramate 3200
Singer Corporation Caramate 3260
Singer Corporation Caramate 3100
Standard Projector & Equipment Stanmate 35
Technicolor Road Show 21
Technicolor Road Show 41
Telex Caramate 3174
Telex Caramate 3280
Telex Caramate 3154
Telex Caramate 3270
Telex Caramate 3284
Telex Caramate 3170
Telex Caramate 3000 Projector Slide / Filmstrip
Telex Caramate 3150
Telex Caramate 3274

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "The Philips Lighting Catalogue." Catalogue. Philips, .
  • "Lamp Specification & Application Guide 2004." Catalog. Philips Lighting Company, .
