ELR ANSI Code
ELR ANSI is a MR13D lamp with a GX7.9 base operating at 50 watts and 16 volts. It has a color temperature of 3100 Kelvin. It has a Dichroic finish. The average rated life is 250 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ELR lamps.

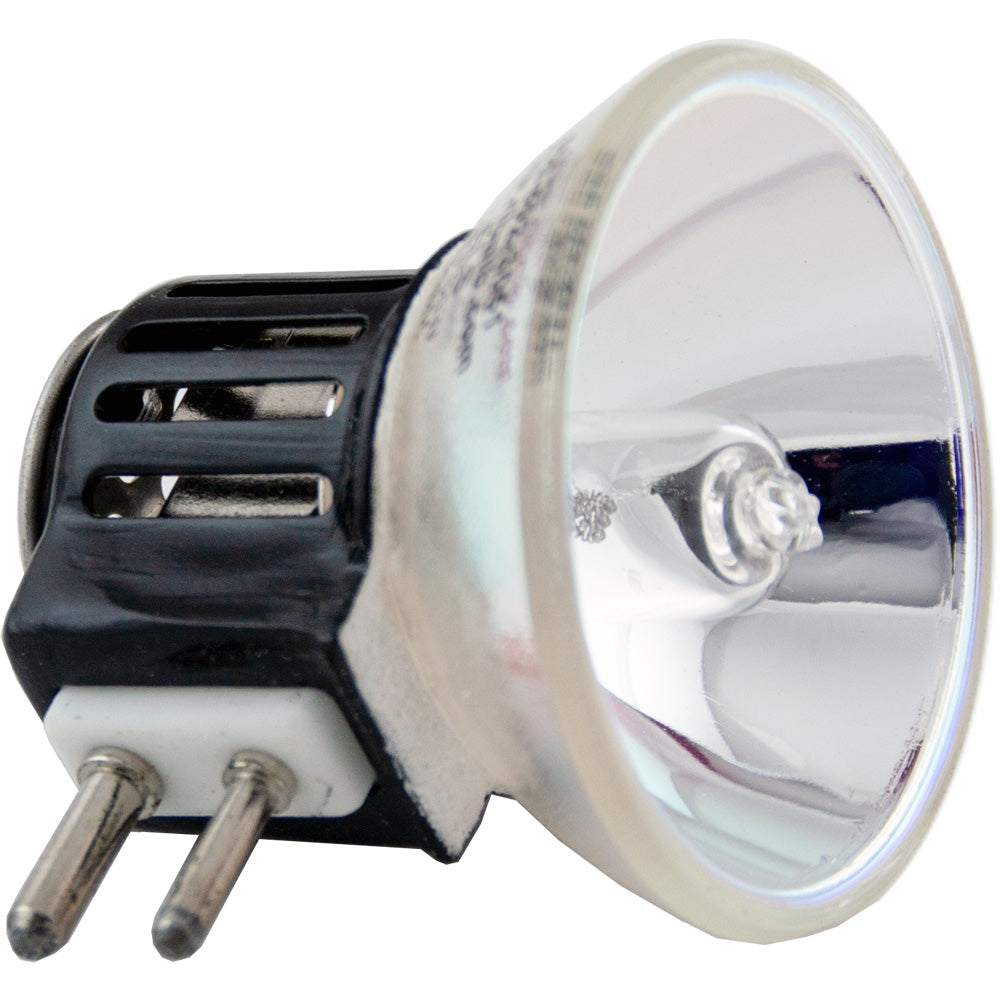

ELR Photograph |
 |
Electrical Specifications | |
| Amps | 3.13 |
|---|---|
| Volts | 16 |
| Watts | 50 |
Photometrics | |
| Color Temperature | 3100 |
|---|---|
| Light Center Length (LCL) | 0.626" (15.9mm) |
Physical Characteristics | |
| Base | GX7.9 |
|---|---|
| Bulb Shape | MR13D |
| Filament | CC-6 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 1 5/12 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 250 |
General Information | |
| Lamp Code | ELR |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
| Equivalents | ELS |
MR13D Shape | |
 | |
| Diameter Designation | 13/8" |
|---|---|
| Glass Diameter | 1 5/8" (1.625") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX7.9 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | 02480 | ELS-ELR | |
Equipment Used In | ||
| Brand | Model | Type |
| 3M | Consort | |
| Audiscan | 3200 | |
| Audiscan | 2000 | |
| Audiscan | 4000 | |
| Audiscan | 3000 | |
| Audiscan | 4200 | |
| DataGraphix | 14-A | |
| DataGraphix | 14-B | |
| DataGraphix | Datamate 80 | Microfilm Reader |
| DataGraphix | 1400 Series | Microfilm Reader |
| DataGraphix | 1450 | Microfilm Reader |
ELR may also be listed as: | |||
| ELR ANSI | ELR ASA | ELR BULB-DIRECT | ELR GENERAL-ELECTRIC |
| ELR KONDO | ELR SYLVANIA | ELR USHIO | ELR WESTINGHOUSE |
| ELR WIKO | ELR-16V ANSI | ELR-16V ASA | ELR-16V-50W |
| ELR-16V-50W ANSI | ELR-16V-50W ASA | ELR-16V-50W-GX7.9-MR-14-CC-6-OPEN-FRONT-3100K-250H-BDTH-1-5/12MOL-Q-MICROFILM-DICHROIC-REFLECTOR-FOCAL-DIST.-8.062 | ELR-16V-50W-GX7.9-MR14-CC6-OPEN-FRONT-3100K-250H-BDTH-1-5/12MOL-Q-MICROFILM-DICHROIC-REFLECTOR-FOCAL-DIST-8.062 |
| ELR-16V/16V/50W/GX7.9/MR13D ANSI | ELR-16VOLT ANSI | ELR-16VOLT ASA | ELR-ELS ANSI |
| ELR-ELS ASA | ELR/16V/50W/GX7.9/MR13D ANSI | H/16V/50W/G7.9/MR13D/205MMWD/250H | H/16V/50W/G7.9/MR13D/205MMWD/ELR |
| H/16V/50W/GX7.9/MR13D/205MMWD/250H | H/16V/50W/GX7.9/MR13D/205MMWD/ELR | H/16V/50W/GX7.9/MR13D/CC6/250H | H/16V/50W/GX7.9/MR13D/CC6/250H/ELR |
| SPQ50MR13DGX7.9CC616V-ELR | SPQ50MR13DGX7.9CL16V-ELR | ||
