EMC ANSI Code
EMC ANSI is a MR16 lamp with a GX5.3 base operating at 100 watts and 12 volts. It has a color temperature of 3100 Kelvin. It has a Open front finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EMC lamps.

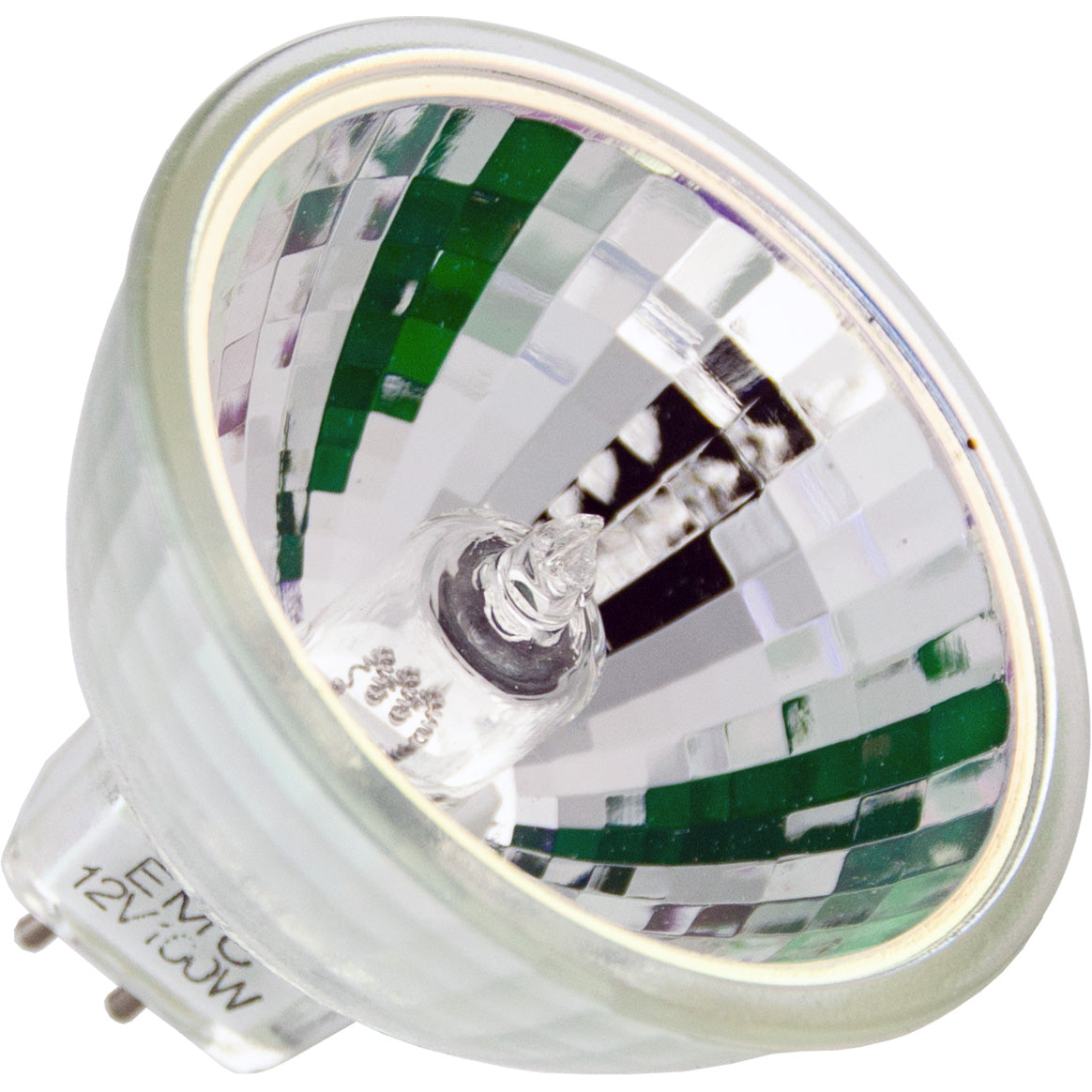

EMC Photograph |
 |
Electrical Specifications | |
| Amps | 7.14 |
|---|---|
| Volts | 12 |
| Watts | 100 |
Photometrics | |
| Color Temperature | 3100 |
|---|---|
Physical Characteristics | |
| Base | GX5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-6 |
| Finish | Open front |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | EMC |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GX5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Hikari | MR-8075C EMC | ||
| Ushio | 1000326 | EMC, JCR12V-100W/MR16 | Available |
| Green Energy Lighting (GELCO) | 60696-GEL | EMC | |
| Norman Lamps | EMC | EMC - 100W, 12V, MR16 | |
| Microlites | 12-100-23R | ||
| Canimpex | 12-100-23R | ||
| Orbitec | 130304 | H 63184 | |
Equipment Used In | ||
| Brand | Model | Type |
| Teledyne / Post | 620 | Microfilm |
| Wenzel Projector Co. | 4 SMARTE | Microfilm Reader |
| Western Reserve Electronics | Smarte III | |
| Western Reserve Electronics | Smarte IV-D | |
| Western Reserve Electronics | Smarte IV-S | |
