EMD ANSI Code
EMD ANSI is a T4 lamp with a R7s-12 base operating at 750 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Frosted finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EMD lamps.

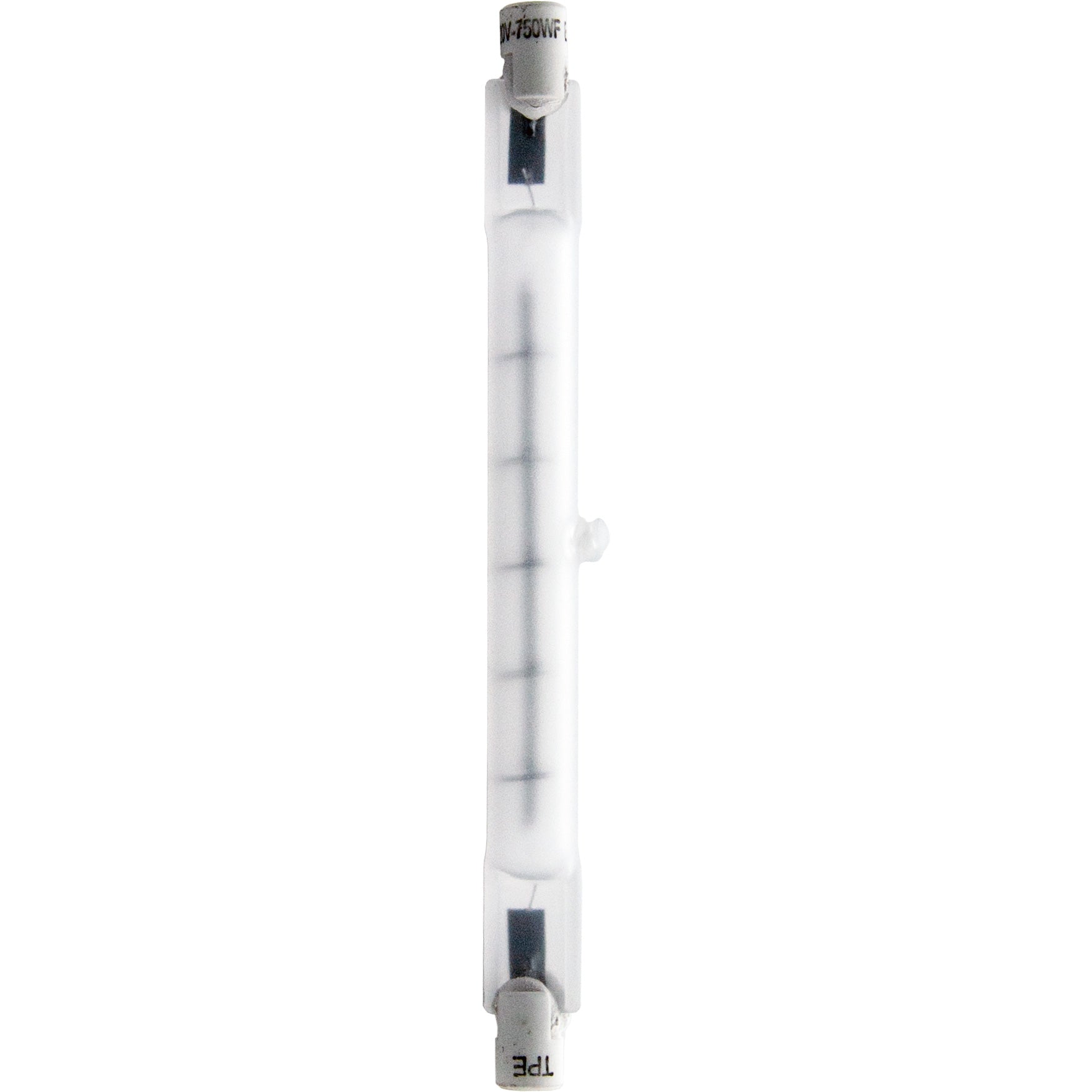

EMD Photograph |
 |
Electrical Specifications | |
| Amps | 6.25 |
|---|---|
| Volts | 120 |
| Watts | 750 |
Photometrics | |
| Candlepower | 1600 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 117.6 |
| Lumens | 19500 |
Physical Characteristics | |
| Base | R7s-12 |
|---|---|
| Bulb Shape | T4 |
| Filament | C-8 |
| Finish | Frosted |
| Max Overall Length (MOL) | 4 11/16 |
Operating Characteristics | |
| Burn Position | H ± 4° |
|---|---|
| Life Hours | 400 |
General Information | |
| Lamp Code | EMD |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
R7s-12 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlas/Thorn | P2/15 | ||
| Bulbrite | 762255 | EMD | |
| Colortran | 176-026 | ||
| Colortran | B75-32F | ||
| General Electric | 23755 | EMD-Q750T3/4 | |
| Lowel | EMD | ||
| Osram Sylvania | 64561/F | ||
| Smith-Victor | 620340 | EMD (frosted) | |
| Ushio | 1000327 | EMD, JP120V-750WCF | Available |
| Microlites | 120-750-75DF | ||
| Canimpex | 120-750-75DF | ||
| Orbitec | 130525 | H 40843 | |
Equipment Used In | ||
| Brand | Model | Type |
| ARRI | Mini Flood | Stage / Studio |
| ARRI | ARRISOFT 2000 | Stage / Studio |
| ARRI | Cyc Mini | Stage / Studio |
| ARRI | ARRISOFT 1000 | Stage / Studio |
| Altman Lighting | Soft Lite | Stage / Studio |
| Altman Lighting | Junior Soft Lite | Stage / Studio |
| Altman Lighting | 161 16-Scoop | Stage / Studio |
| Altman Lighting | Q-Lite | Stage / Studio |
| L&E | Runt | Stage / Studio |
| Lowel | TOTA | |
| Smith-Victor | 750-SG | |
