EMF ANSI Code
EMF ANSI is a T4 lamp with a R7s-12 base operating at 800 watts and 240 volts. It has a color temperature of 3200 Kelvin. It has a Frosted finish. The average rated life is 250 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EMF lamps.

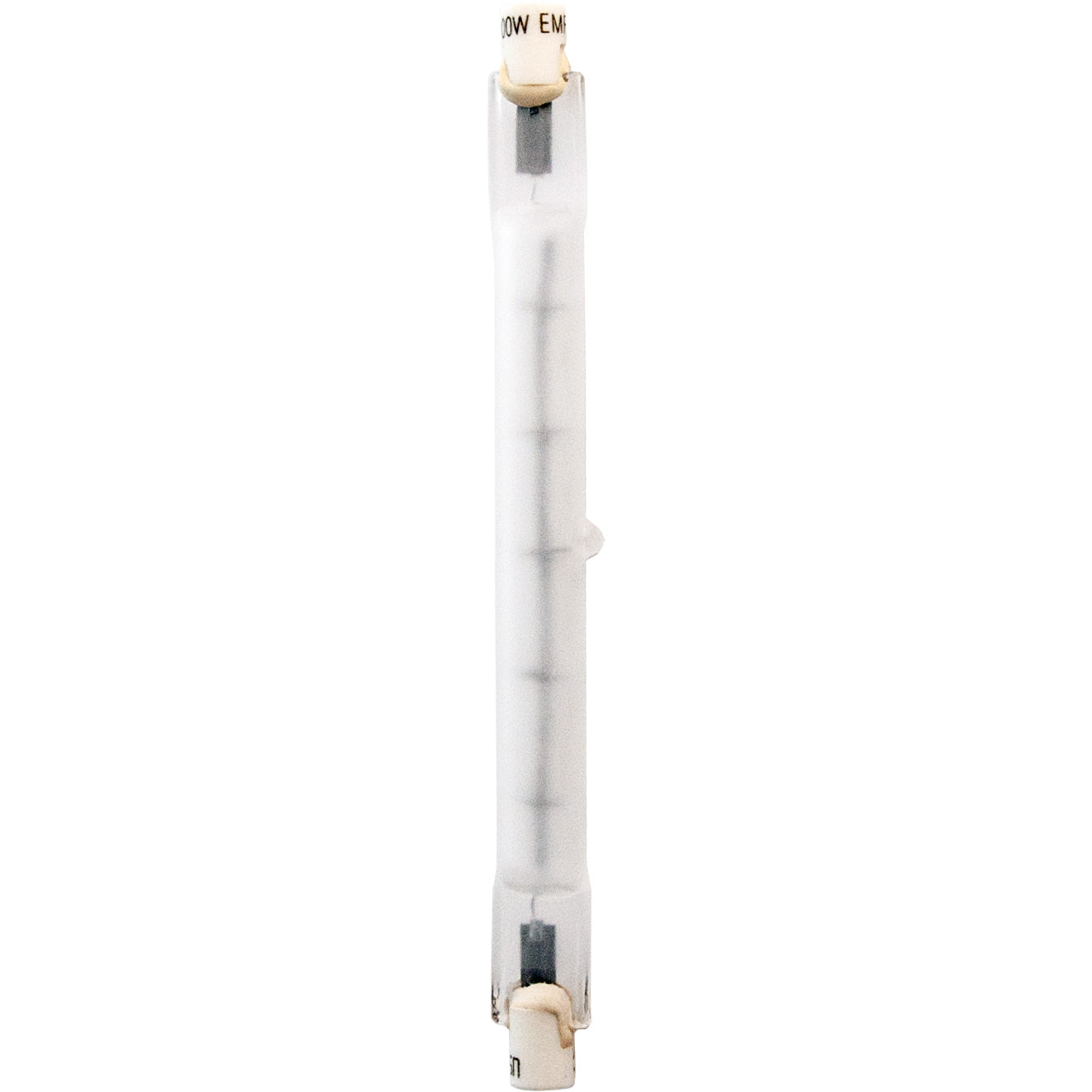

EMF Photograph |
 |
Electrical Specifications | |
| Amps | 3.33 |
|---|---|
| Volts | 240 |
| Watts | 800 |
Photometrics | |
| Candlepower | 1700 |
|---|---|
| Color Temperature | 3200 |
| Light Center Length (LCL) | 117.6 |
| Lumens | 21400 |
Physical Characteristics | |
| Base | R7s-12 |
|---|---|
| Bulb Shape | T4 |
| Filament | C-8 |
| Finish | Frosted |
| Max Overall Length (MOL) | 4 11/16 |
Operating Characteristics | |
| Burn Position | Horizontal |
|---|---|
| Life Hours | 250 |
General Information | |
| Lamp Code | EMF |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T4 Shape | |
 | |
| Diameter Designation | 4/8" |
|---|---|
| Glass Diameter | 1/2" (0.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-8 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
R7s-12 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Bulbrite | 762265 | EMF | |
| Colortran | 176-028 | ||
| Colortran | B25-32F | ||
| General Electric | 23761 | EMF-Q800T3/4 | |
| Ushio | 1000329 | EMF, JP240V-800WCF | Available |
| Microlites | 240-800-75F | ||
| Canimpex | 240-800-75F | ||
Equipment Used In | ||
| Brand | Model | Type |
| Lowel | TOTA | |
| Visual Graphics | 62-12201-001 | |
