ENX-5 ANSI Code
ENX-5 ANSI is a MR16 lamp with a GY5.3 base operating at 360 watts and 86 volts. It has a color temperature of 3300 Kelvin. It has a Dichroic finish. The average rated life is 75 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ENX-5 lamps.

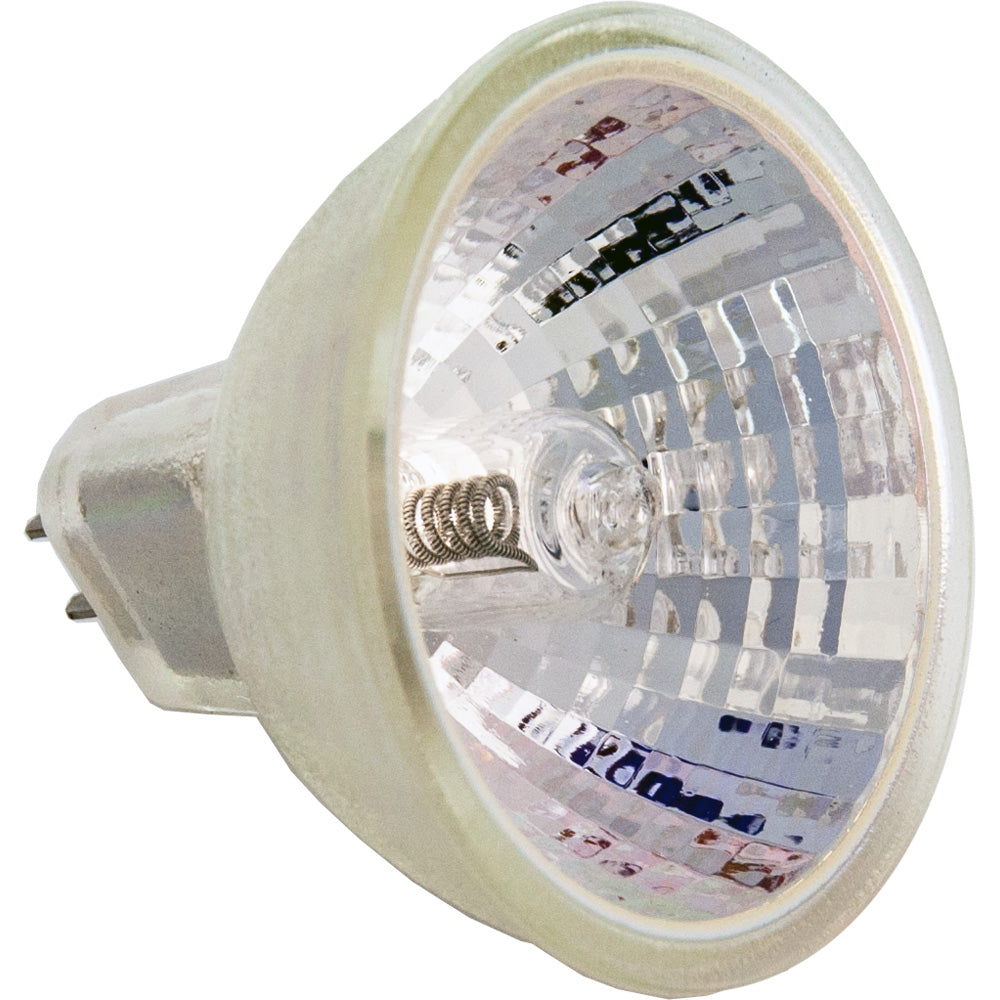

ENX-5 Photograph |
 |
Electrical Specifications | |
| Volts | 86 |
|---|---|
| Watts | 360 |
Photometrics | |
| Color Temperature | 3300 |
|---|---|
Physical Characteristics | |
| Base | GY5.3 |
|---|---|
| Bulb Shape | MR16 |
| Filament | CC-8 |
| Finish | Dichroic |
| Max Overall Length (MOL) | 1 3/4 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 75 |
General Information | |
| Lamp Code | ENX-5 |
|---|---|
| Code Type | ANSI |
MR16 Shape | |
 | |
| Diameter Designation | 16/8" |
|---|---|
| Glass Diameter | 2" (2.0") |
| Shape Code | MR |
| Shape Classification | Multifaceted Reflector |
CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
GY5.3 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | 02610 | ENX/5 | |
| General Electric | 19475 | ENX-5 | |
| Osram Sylvania | 54913 | ENX-5 | Available |
| Philips | 204974 | ENX-5 360W 86V 24PK | |
| Ushio | 1000338 | ENX-5, JCR86V-360W | Available |
| Kahoku Lighting Solutions (KLS) | 62049-KLS | ENX-5 Japan | |
| Norman Lamps | ENX-5 | Projector Bulb 85V 360W Long Life Type | |
Equipment Used In | ||
| Brand | Model | Type |
| Elmo | HP-3K | |
| Elmo | HP-3K DX | |
| Elmo | HP-L11CH | |
| Elmo | HP-L2900H | |
| Elmo | HP-L2900HDX | |
| Elmo | HP-L3550E | |
| Elmo | HP-L3550HDX | |
