EPD ANSI Code

EPD ANSI is a T6 lamp with a GZ9.5 base operating at 485 watts and 240 volts. It has a color temperature of 3200 Kelvin. It has a Proximity Reflector finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EPD lamps.

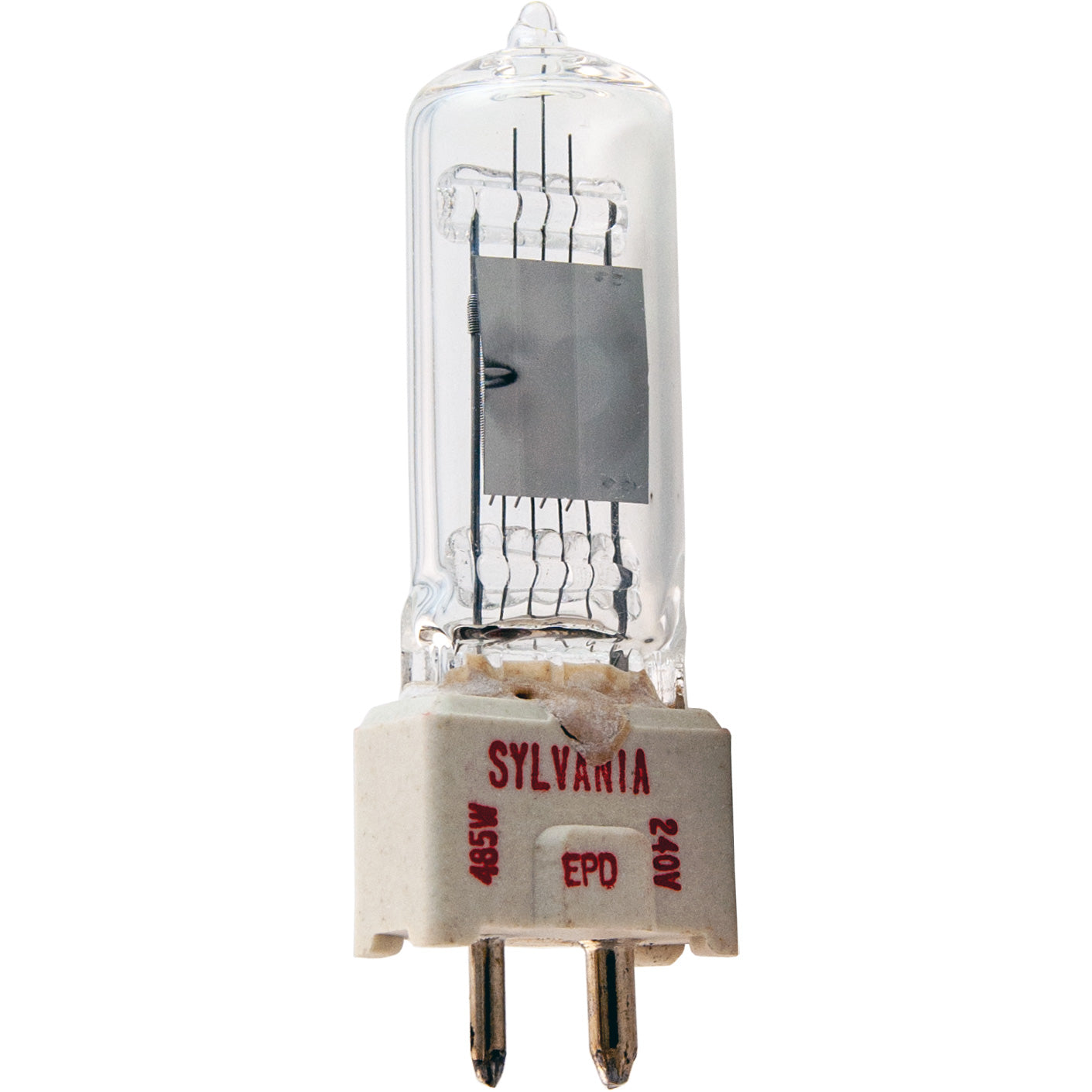

EPD Photograph

EPD

Electrical Specifications

Amps2.02
Volts240
Watts485

Photometrics

Color Temperature3200
Light Center Length (LCL)1 7/16

Physical Characteristics

BaseGZ9.5
Bulb ShapeT6
FilamentC-13D
FinishProximity Reflector
Max Overall Length (MOL)3

Operating Characteristics

Burn PositionAny
Life Hours50

General Information
Lamp CodeEPD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

GZ9.5 Base

GZ9.5

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites240-485-29D
Canimpex240-485-29D

EPD may also be listed as:
EPD ANSIEPD ASAEPD INTERLIGHTEPD LAMPTECH
EPD SYLVANIAEPD-240V ANSIEPD-240V ASAEPD-240V-485W
EPD-240V-485W ANSIEPD-240V-485W ASAEPD-240V-485W-GZ9.5-T6-C13D-CLEAR-3200K-50H-ANY-3MOL-1-7/16LCL-Q-PROJECTOR-PROXIMITY-REFLECTOREPD-240V/240V/485W/GZ9.5 ANSI
EPD-240VOLT ANSIEPD-240VOLT ASAEPD/240V/485W/GZ9.5 ANSIEPD/T3-240V-485V-TB2P LAMPTECH
H/240V/485W/GZ9.5/T6/C13D/50HH/240V/485W/GZ9.5/T6/C13D/50H/EPDSPQ485T6GZ9.5C13D-240VSPQ485T6GZ9.5C13D240V-EPD
SPQ485T6GZ9.5CL-240VSPQ485T6GZ9.5CL240V-EPD
