EPX ANSI Code

EPX ANSI is a MR16 lamp with a GX5.3 base operating at 90 watts and 14.5 volts. It has a color temperature of 3150 Kelvin. It has a Open front finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI EPX lamps.

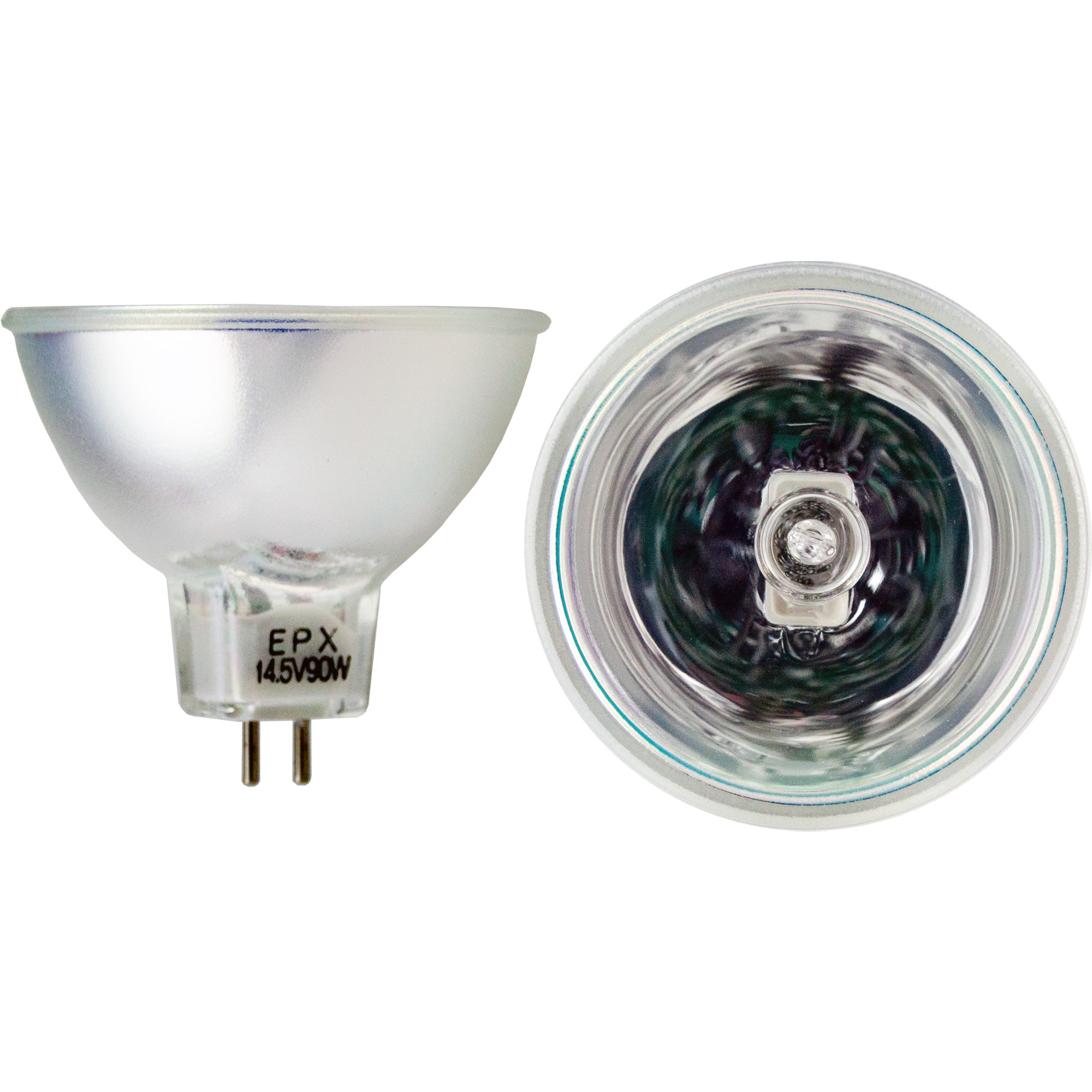

EPX Photograph

EPX

Electrical Specifications

Amps6.21
Volts14.5
Watts90

Photometrics

Color Temperature3150

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours500

General Information
Lamp CodeEPX
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsF/110

MR16 Shape

MR16
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
General Electric42614EPX
Osram Sylvania54927EPX
Osram Sylvania64619
Philips13186
Philips239632EPX
Ushio1000349EPX, JCR14.5V-90W
NARVA54090EPX/EPV 54090 14.5V 90W GX5.
Green Energy Lighting (GELCO)63063-GELEPV/EPX
American Volpi23829.025EPV
Microlites14.5-090-23R
Microlites14.5-090-23R/EPX
Canimpex14.5-090-23R
Canimpex14.5-090-23R/EPX
Orbitec130308H 63188
Orbitec130587H 63188 GE

Equipment Used In

BrandModelType
3M Model 112
3M Model 111
3M Consultant 114/1
3M Consultant 114/2 Projector Opaque / Transparency
3M Consultant 110/I-2
3M Consultant 119
3M Consultant 110/II-1
3M Consultant 110/I-1
Auto-Graphics 80-R Microfilm
Auto-Graphics R
Auto-Graphics 80-H Microfilm
Auto-Graphics MR
Auto-Graphics M
Auto-Graphics 80-M Microfilm
Auto-Graphics 80-MR Microfilm
Auto-Graphics 800-H Microfilm
Auto-Graphics H
Auto-Graphics Micromax 800
Bell and Howell 1602
Bell and Howell ABR 650 (R/P)
Bell and Howell ABR 400
Bell and Howell ABR 650
Calcomp MC 1114 Microfilmviewer
Canon MC-IR 6
Caps Microfilm Libra 2
Dymat Photomatrix 601
Dymat Photomatrix 502
GAF (Aarque Systems) 7800 DER
GAF (Aarque Systems) Valiant II
GAF (Aarque Systems) 7810 DMR
GAF (Aarque Systems) 7900
GAF (Aarque Systems) Valiant
GAF (Aarque Systems) 7360
GAF (Aarque Systems) 7820 DMR
GAF (Aarque Systems) 7901
Imtec 017 (R/P)
Imtec 017
Imtec Read 'n Print (R/P)
Information Design ADC-2
Kardex ADC 3-L
MS-Microfilm NMI-75
Map ADC 3L
Map ADC 4A
Map ADC 2A
Map ADC 2L
Map ADC 3A
Micro Design XR-100
Micro Design 4055
Microfilm Research Informant
Micromax 800MR
Micromax 800
Micromax 800H
Micromax 800R
NB Jackets 162
Nemas Scanatron X-Ray
Northwest Microfilm NMI 14
Northwest Microfilm NMI 75
Northwest Microfilm NMI 11
OCE Industries 3534
OCE Industries 3533
OCE Industries Scanatron X-Ray
Olympus Highlight 2000
Olympus External Stero Illuminators
Olympus VS-011 Medical
Photomatrix 502
Photomatrix 601
Realist Valiant II
Realist Vantage III & IV 3351
Realist Vantage II
Realist Vantage IV
Realist Vantage III
Realist Vantage I
Realist 3351
Realist Valiant
Realist Vantage COM IV
Realist Seminar
Realist Valiant Portable
Realist 3352
Realist Vantage V
Regma L Com 3
Reslabs RL-90
Reslabs RL-Executive
Reslabs RL-180A
Shrewsbury Electronic Engineers Microsee X-Ray Reader
Topcon Ophthalmic Viewer
University Microfilms 322
University Microfilms 320
Xerox Cheshire 740

Sources

  • "Projection Lamp and Equipment Guide." Guide. GE Lighting, .
  • "Special Lamps." Catalogue. NARVA Specialty Lighting, .
  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "The Philips Lighting Catalogue." Catalogue. Philips, .
  • "Lamp Specification & Application Guide 2004." Catalog. Philips Lighting Company, .
