ERB ANSI Code

ERB ANSI is a T2.25 lamp with a W2.5x7.5d base operating at 12 watts and 12 volts. It has a color temperature of 3100 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ERB lamps.

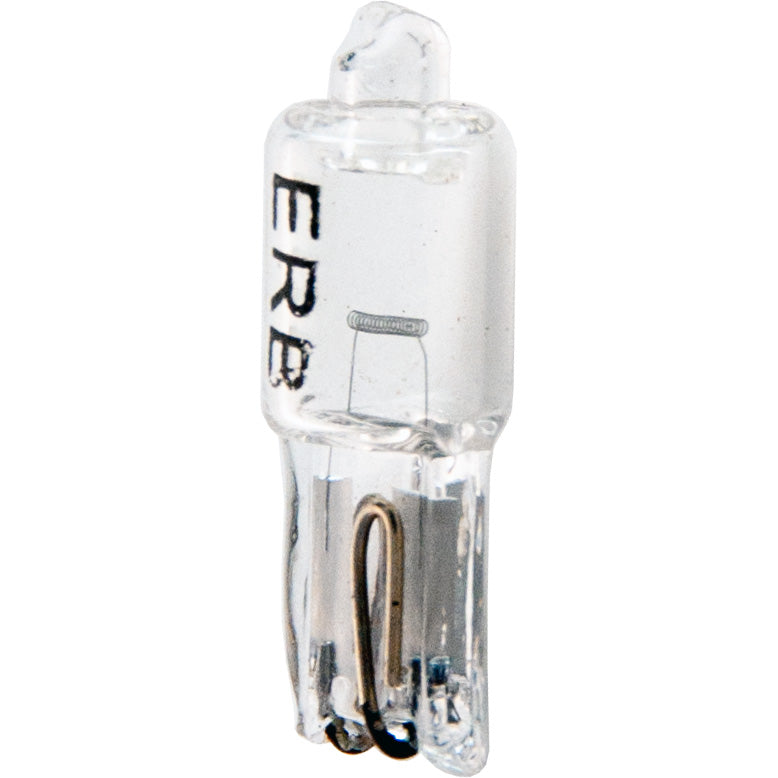

ERB Photograph

ERB

Electrical Specifications

Amps1
Volts12
Watts12

Photometrics

Candlepower20
Color Temperature3100
Light Center Length (LCL)13/33
Lumens250

Physical Characteristics

BaseW2.5x7.5d
Bulb ShapeT2.25
FilamentCC-6
FinishClear
Max Overall Length (MOL)1 1/5

Operating Characteristics

Burn PositionAny
Life Hours200

General Information
Lamp CodeERB
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T2.25 Shape

T2.25
Diameter Designation2.5/8"
Glass Diameter 5/16" (0.3125")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites12-012-120B
Canimpex12-012-120B

ERB may also be listed as:
1990 GENERAL-ELECTRIC1990 SYLVANIA1990 USA1990-ERB LAMPTECH
1990-ERB SYLVANIA1990-ERB/T2-1-4-12V-12W-WEDGE LAMPTECH1990/12V/1A USA22-7720 BULB-DIRECT
22-7720 MENTOR22-7720/12V/12W MENTOR22-7720/12VOLT/12WATT MENTOR54996 OSRAM
ALL-PUPIL-INDIRECT-OPHTHALMOSCOPE MENTORBW-ERBERB ANSIERB ASA
ERB INTERLIGHTERB MICROLAMPERB OSRAMERB SYLVANIA
ERB-12V ANSIERB-12V ASAERB-12V-12WERB-12V-12W ANSI
ERB-12V-12W ASAERB-12V-12W-WEDGE-T2-CC6-CLEAR-250L-3100K-200H-ANY-1-1/5MOL-13/33LCL-H-MINIATURE-PROJECTORERB-12V/12V/12W/W2.5X7.5D ANSIERB-12VOLT ANSI
ERB-12VOLT ASAERB/12V/12W/W2.5X7.5D ANSIERB/BULK OSRAMH/12V/12W/W2.5X7.5D/T2.25/CC6/200H
H/12V/12W/W2.5X7.5D/T2.25/CC6/200H/ERBME-22-7720SPQ12T2.25W2.5X7.5DCC612V-ERBSPQ12T2.25W2.5X7.5DCL12V-ERB
STANDARD-ALL-PUPIL-INDIRECT-OPHTHALMOSCOPE MENTORSTANDARD-OPHTHALMOSCOPE MENTOR
