ERC ANSI Code

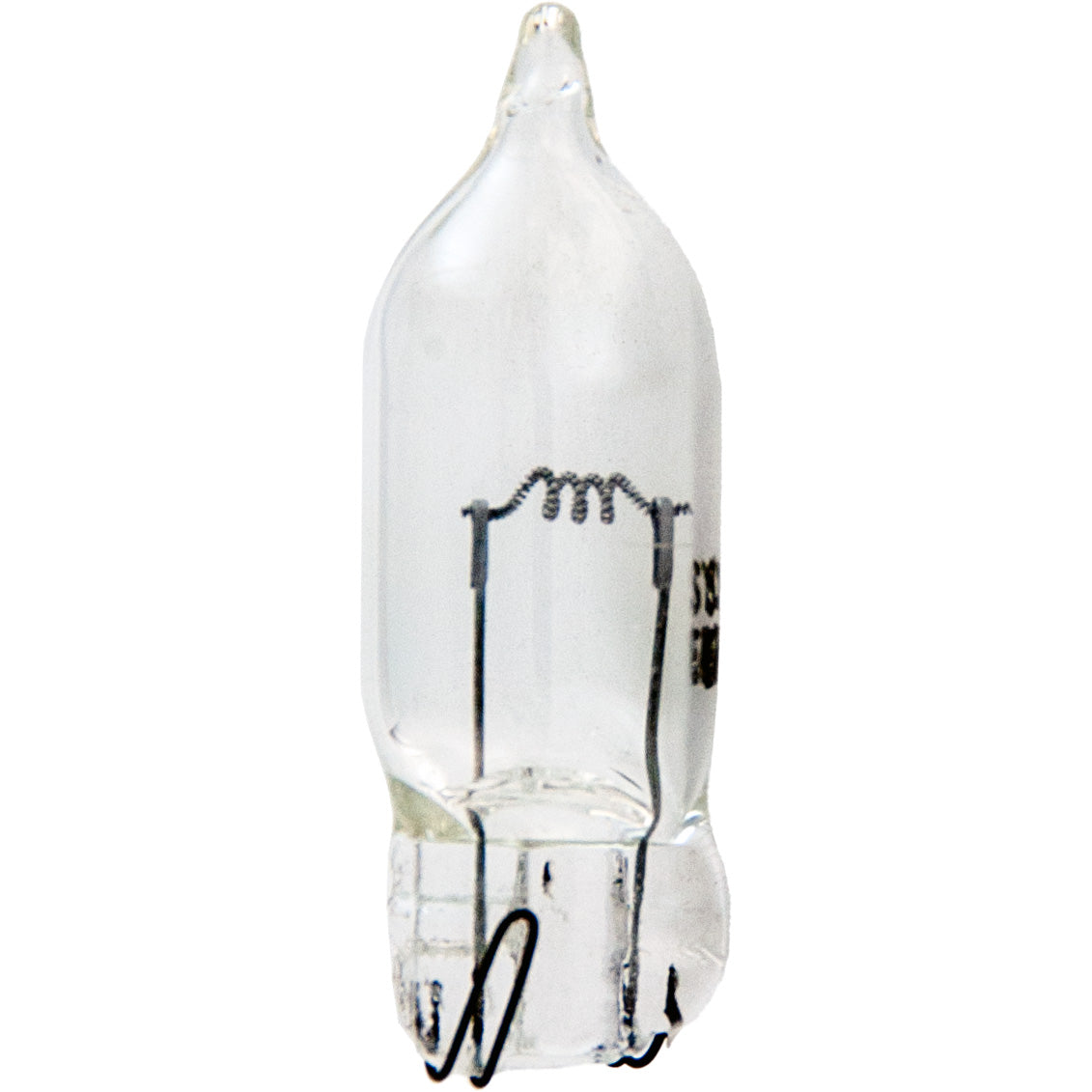

ERC ANSI is a T3.25 lamp with a W2.1x9.5d base operating at 25 watts and 14 volts. It has a color temperature of 3100 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI ERC lamps.

Electrical Specifications

Amps1.79
Volts14
Watts25

Photometrics

Candlepower40
Color Temperature3100
Light Center Length (LCL)1/2
Lumens500

Physical Characteristics

BaseW2.1x9.5d
Bulb ShapeT3.25
FilamentCC-6
FinishClear
Max Overall Length (MOL)1 1/5

Operating Characteristics

Burn PositionAny
Life Hours200

General Information
Lamp CodeERC
Code TypeANSI
Specification ReferenceANSI-SR25D1997

T3.25 Shape

T3.25
Diameter Designation3.25/8"
Glass Diameter 13/32" (0.40625")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
EikoERC (WIKO)
Microlites14-025-120C
Canimpex14-025-120C

Equipment Used In

BrandModelType
Hudson Photographic Industries (HPI) 338-TLF Projector
Visidyne Micro-Kit
Visidyne Voyager II Microfilm

ERC may also be listed as:
1991 GENERAL-ELECTRIC1991 SYLVANIA1991 USA1991-ERC SYLVANIA
1991/14V/1.8A USA55001 OSRAM550050 SYLVANIABW-ERC
ERC ANSIERC ASAERC INTERLIGHTERC LAMPTECH
ERC MICROLAMPERC OSRAMERC SYLVANIAERC-14V ANSI
ERC-14V ASAERC-14V-25WERC-14V-25W ANSIERC-14V-25W ASA
ERC-14V-25W-WEDGE-T3-CC6-CLEAR-500L-3100K-200H-ANY-1-1/5MOL-1/2LCL-H-MINIATURE-PROJECTORERC-14V/14V/25W/W2.1X9.5D ANSIERC-14VOLT ANSIERC-14VOLT ASA
ERC-1991 SYLVANIAERC/14V/25W/W2.1X9.5D ANSIERC/1991 BULB-DIRECTERC/BULK OSRAM
ERC/T3-1-4-14V-25W-WEDGE-1991 LAMPTECHH/14V/25W/W2.1X9.5D/T3.25/200HH/14V/25W/W2.1X9.5D/T3.25/C6/200HH/14V/25W/W2.1X9.5D/T3.25/C6/200H/ERC
L-2-ERCSPQ25T3.25W2.1X9.5DC6-14VSPQ25T3.25W2.1X9.5DC614V-ERCSPQ25T3.25W2.1X9.5DCL-14V
SPQ25T3.25W2.1X9.5DCL14V-ERC
